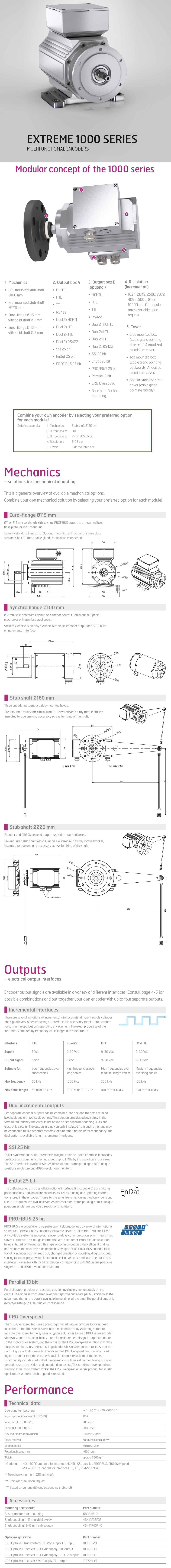

Description Specifications and Drawings


Leine & Linde: Encoders (Extreme 1000 Series)

Multifunctional encoders with extreme durability


We offer different incremental and absolute interfaces, or combinations thereof in a single product. The absolute interfaces available include SSI and
EnDat as well as fieldbus communication.


Equipped for Extreme Environments

In many applications within metal, mining and marine industries the demands on the equipment is exceptional. The machines are subject to exposure from mechanical loads, vibrations and shock in an environment of dust, liquids and high temperatures. They handle advanced machinery with utmost safety demands and economical value – failure may never be an option. Such conditions require components of extraordinary durability, ready to meet extreme challenges in the field.


Robustness F
irst

The encoders in the 1000 series are designed based on one key requirement – offer the most robust mechanical solution possible. The space for ball bearings has been optimized, enabling a dual set of bearings with dimensions that are nothing less than extreme when it comes to encoders. The high encapsulation level, iP67, protects the inner parts from dust and liquids, and as special option the housing can even be provided in stainless steel.


Modular, Redundant and Multifunctional

The 1000 series is based on a modular concept with many options that can be combined into one multifunctional unit. One encoder unit may include dual incremental outputs for redundant speed feedback together with an absolute position output with optional fieldbus technology. This gives a redundant and multifunctional encoder adapted for each specific application.


Technical Data:

  • Diameter: 115 mm

  • Vibration: 300 m/s2

  • Shock: 2000 m/s2

  • Shaft load axial: 1000 N

  • Shaft load radial: 680 N

  • Encapsulation level: IP67

  • Temperature: Variants up to -40 .. +100 ºC
