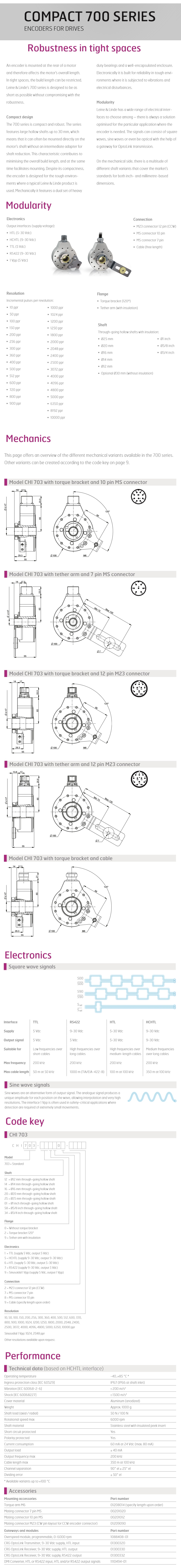

Description Specifications and Drawings


Leine & Linde: Encoders (Compact 700 Series)

Robustness in a compact design.


Robustness in a compact design are the key words for the 700 series. With its short build length, it is designed for filling the need for heavy duty encoders even in installations where space is limited. Despite its compactness, the series is nevertheless designed for the tough environments where typical
Leine & Linde products are used.


The encoders are available with large hollow shafts up to 25.4 mm. The series also includes many other shaft variants that cover the market’s standards for both inch- and
millimeter-based dimensions. On the electronics side, there are several incremental interfaces to choose among.


Technical Data:

  • Diameter: 100 mm

  • Vibration: 200 m/s2

  • Shock: 1500 m/s2

  • Shaft load radial: 100 N

  • Shaft load axial: 50 N

  • Encapsulation level: IP66

  • Temperature: Variants up to -40 .. +100 ºC
