MotiCont: Optical Encoder Module Cable (CBL-04)
MotiCont: Optical Encoder Module Cable (CBL-04)



Call for Pricing

Price Quote Form


Order #: CBL-04
.

Description

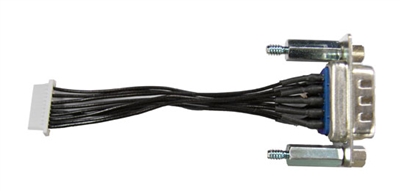

MotiCont: Optical Encoder Module Cable (CBL-04)

Cable For Encoders and Stages

Features:

  • Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01

  • Used as an adapter to convert existing connector on the board to female DB9 connector

Pin Assignment

  • 1: +5 VDC Power

  • 2: A- Channel of Quadrature Encoder

  • 3: B+ Channel of Quadrature Encoder

  • 4: A+ Channel of Quadrature Encoder

  • 5: Return for +5 VDC Power

  • 6: Reference Signal, Active High

  • 7: B- Channel of Quadrature Encoder

  • 8: Motor Minus

  • 9: Motor Plus
