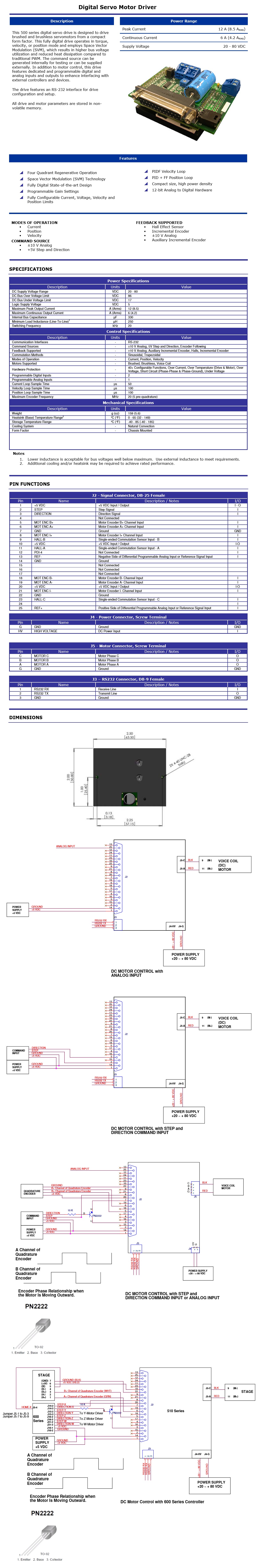

Description Specifications and Drawings


MotiCont: DC and Brushless Servo Motor Driver (510 Series)

The 510 series is a high performance, cost effective servo motor driver that implements intelligent motion control. The driver incorporates advanced architecture and surface mount technology to achieve exceptional power density.

Designed to drive voice coil, brush-type and brushless DC motors at a high switching frequency, as well as, receiving step & direction/analog signals from motion controllers.

Features:

  • Runs DC and Brushless Servo Motors

  • Four Quadrant Regenerative Operation

  • Space Vector Modulation (SVM) Technology

  • Fully Digital State-of-the-art Design

  • Programmable Current, Velocity and Position Loops Gain Settings

  • Fully Configurable Current, Voltage, Position Limits

  • PIDF Velocity Loop

  • PID + FF Position Loop

  • 12 Amps Motor Output

  • +20 VDC to +80 VDC Power Supply

  • Protected Against Overcurrent

  • Built-in Signal Generator, Sinusoidal, Square Wave and Triangular

  • 20 KHz PWM Frequency

  • No Tachometer Feedback Needed

  • 0 ºC to 70 ºC Operating Temperature

  • Modular 2-Piece Power, Motor, Signal Connector

Modes of Operation:

  • Current

  • Velocity

  • Position

Command Source:

  • Encoder Following

  • ±10 V Analog

  • Step and Direction

Feedback Supported:

  • Hall Effect Sensor

  • Incremental Encoder

  • ±10 V Analog

  • Auxiliary Incremental Encoder
