MotiCont: Thirty-micron Optical Encoder Module (OEM-030U-01 Series)
MotiCont: Thirty-micron Optical Encoder Module (OEM-030U-01 Series)



Alternate View
Call for Pricing

Price Quote Form


Order #: OEM-030U-01


Options:

.

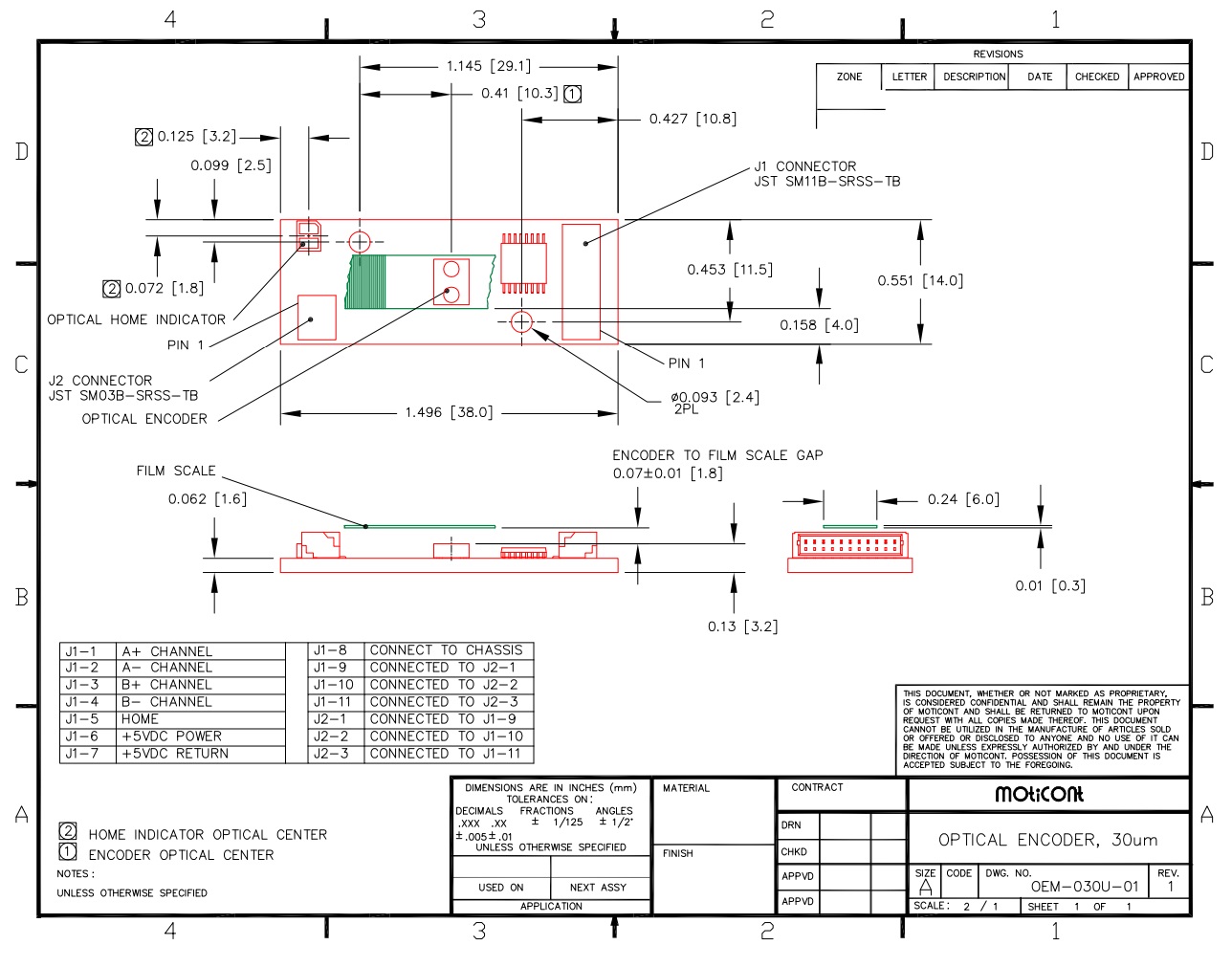

Description Specifications and Drawings


MotiCont: Thirty-micron Optical Encoder Module (OEM-030U-01 Series)

Features:

  • Small Size: 1.496" (38.0 mm) by 0.551" (14.0 mm)

  • Low Profile: 0.190" (4.8 mm)

  • Low Power

  • High Resolution: 0.0012", 29.95 Micron

  • TTL Reference Point Output

  • TTL Differential Quadrature Outputs

  • Single +5 VDC Supply


J1 Pin Assignment:

  • 1: A+ Channel of Quadrature Encoder

  • 2: A- Channel of Quadrature Encoder

  • 3: B+ Channel of Quadrature Encoder

  • 4: B- Channel of Quadrature Encoder

  • 5: Reference Signal, Active High

  • 6: +5 VDC Power

  • 7: Return for +5 VDC Power

  • 8: Connect to chassis if the following pins carry motor current

  • 9: Connected to J2-1

  • 10: Connected to J2-2

  • 11: Connected to J2-2


J2 Pin Assignment:

  • 1: Connected to J1-9

  • 2: Connected to J1-10

  • 3: Connected to J1-11


Compatible Linear Scale (LS-030U-01 Series)

  • 30 um (0.0004") Quadrature Resolution

  • Low Cost

  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request
