MotiCont: Voice Coil Motor Driver (950 Series)
MotiCont: Voice Coil Motor Driver (950 Series)



Call for Pricing

Price Quote Form


Order #: 950
.

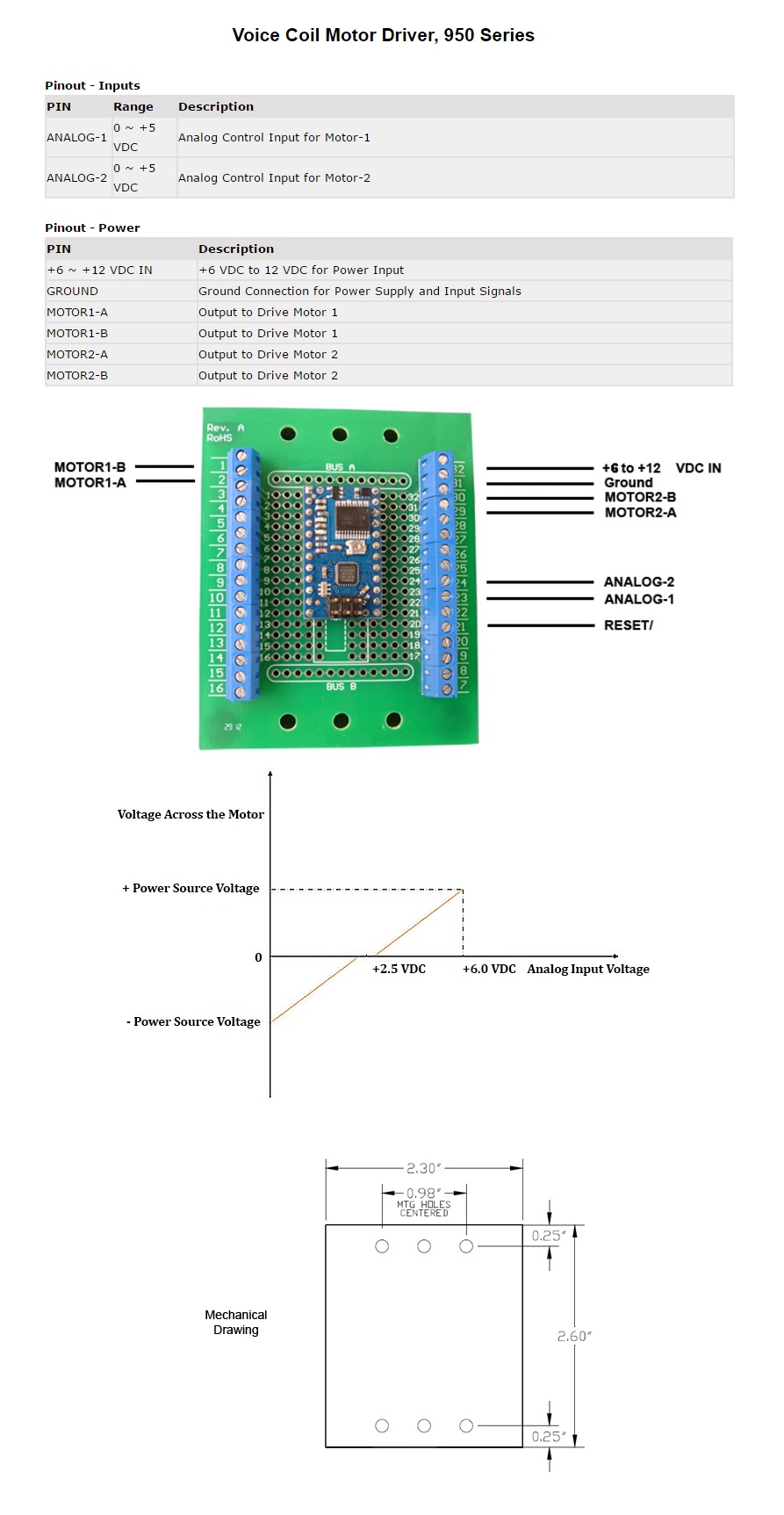

Description Specifications and Drawings


MotiCont: Voice Coil Motor Driver (950 Series)

A high performance, dual channel, cost effective DC Motor Driver that implements intelligent Motion Control with analog inputs. Supplied with mounting card for easy wire connection and mounting. This driver does not accept feedback.


Features:

  • Run DC and Voice Coil Motors with PWM and Direction Control Inputs

  • Runs DC and Voice Coil Motors With Analog Signal Control Inputs

  • Runs Two Motors Simultaneously

  • 1 Amp Continuous, 3 Amps peak Motor Output per Channel

  • +6 VDC to +12 VDC Power Supply

  • 0 C to 70 C Operating Temperature

  • Light: 0.36 Oz (10 gm)

  • PWM Frequency: 9.7 KHz

  • Available with DIN Rail Mount Clips


Electrical Specifications:

  • Supply Voltage: +6 VDC to +12 VDC

  • Phase Current: 0 to 1 Amps Continuous, 3 Amps Peak

  • PWM Frequency: 9.7kHz


Mechanical Specifications:

  • Dimensions: 2.6" (66 mm) x 3.2" (81.3 mm)
