MotiCont: Linear Brushless Ironless Motors (LBIM-032 Series)
MotiCont: Linear Brushless Ironless Motors (LBIM-032 Series)



Call for Pricing

Price Quote Form


Order #: LBIM-032


Model Number/Code*:

.

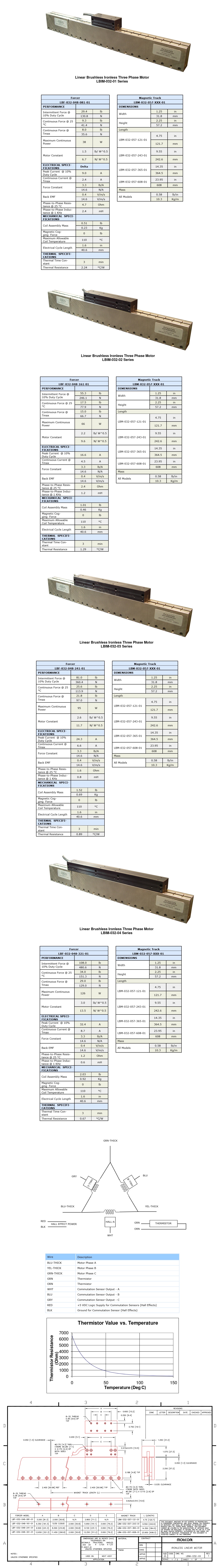

Description Specifications and Drawings


MotiCont: Linear Brushless Ironless Motors (LBIM-032 Series)

Features:

  • High Acceleration

  • High Speed

  • High Accuracy

  • Cog Free

  • High Repeatability

  • Independent Multiple Coil Operation with Overlapping Trajectories

  • No Metal-to-Metal Contact, Virtually Maintenance Free

  • Modular Magnet Tracks

  • Trapezoidal or Sinusoidal Commutation

  • Increased throughput, a Function of High Acceleration

  • Exceptional Accuracy

  • Consistent Repeatability

  • Environmentally Friendly

  • Exceptionally High Force per Volume

  • Light Weight-to-Force Ratio

  • Quiet

  • Reduced Wear and Friction

  • Lower Repair and Maintenance Costs

  • High Operating Efficiency

  • Unlimited Stroke Length


LBIM-032-01

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 29.4

  • Continuous Force @ 25 °C (lb): 9.3

  • Continuous Force @ Tmax (lb): 8.0

  • Continuous Power (W): 38

  • Motor Constant (lb/W^0.5): 1.5

  • Coil Assembly Length (in): 3.2

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 11.6

  • Continuous Current @ Tmax (A): 3.2

  • Force Constant (lb/A): 2.5

  • Back EMF (V/in/s): 0.3

  • Resistance @ 25 °C (Ohm): 2.8

  • Inductance @ 1 KHz (mH): 1.0


LBIM-032-02

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 55.3

  • Continuous Force @ 25 °C (lb): 17.5

  • Continuous Force @ Tmax (lb): 15.0

  • Continuous Power (W): 66

  • Motor Constant (lb/W^0.5): 2.2

  • Coil Assembly Length (in): 6.35

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 11.0

  • Continuous Current @ Tmax (A): 3.0

  • Force Constant (lb/A): 5.0

  • Back EMF (V/in/s): 0.6

  • Resistance @ 25 °C (Ohm): 5.5

  • Inductance @ 1 KHz (mH): 1.9


LBIM-032-03

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 81.0

  • Continuous Force @ 25 °C (lb): 25.6

  • Continuous Force @ Tmax (lb): 21.8

  • Continuous Power (W): 95

  • Motor Constant (lb/W^0.5): 2.6

  • Coil Assembly Length (in): 9.5

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 10.7

  • Continuous Current @ Tmax (A): 2.9

  • Force Constant (lb/A): 7.6

  • Back EMF (V/in/s): 0.6

  • Resistance @ 25 °C (Ohm): 8.3

  • Inductance @ 1 KHz (mH): 2.9


LBIM-032-04

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 108.0

  • Continuous Force @ 25 °C (lb): 34.0

  • Continuous Force @ Tmax (lb): 29.0

  • Continuous Power (W): 126

  • Motor Constant (lb/W^0.5): 3.0

  • Coil Assembly Length (in): 12.65

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 10.7

  • Continuous Current @ Tmax (A): 2.9

  • Force Constant (lb/A): 10.1

  • Back EMF (V/in/s): 1.1

  • Resistance @ 25 °C (Ohm): 11.1

  • Inductance @ 1 KHz (mH): 3.8


Share your knowledge of this product. Be the first to write a review »
