Mitutoyo: AT402E Linear Scales (539 Series)
Mitutoyo: AT402E Linear Scales (539 Series)



Call for Pricing

Price Quote Form


Availability: Subject to Availability
Order #: AT402E


Model Number/Code*:

.

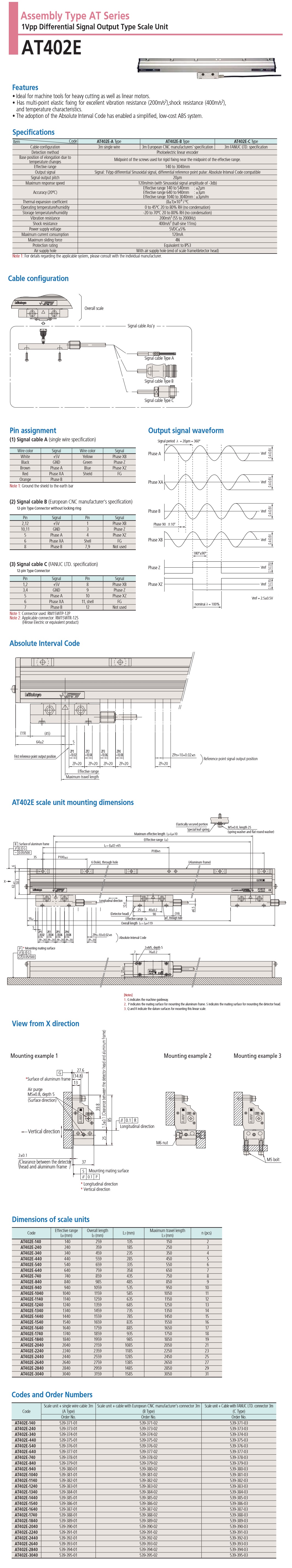

Description Specifications and Drawings


Mitutoyo: AT402E Linear Scales (539 Series) High Vibration/Shock Resistance Type

Features

  • Ideal for machine tools for heavy cutting as well as linear motors.

  • Has multi-point elastic fixing for excellent vibration resistance (200m/s2), shock resistance (400m/s2), and temperature characteristics.

  • The Absolute Interval Code allows for a simplified, low-cost ABS system.

  • High accuracy of ±2µm (up to 540mm).

Technical Data

  • Effective range: (140 - 3040mm)

  • Accuracy (at 20ºC):

  • 140 to 540mm ±2µm

  • 640 to 940mm ±3µm

  • 1040 to 3040mm ±3µm/m

  • Output signal: Two 90° phase-shifted sinusoidal signals (1 Vpp)

  • Maximum response speed: 120m/min.

  • Signal output pitch: 20µm

  • Dust/water protection level: IP53

  • Operating temperature: 0ºC to 45ºC

Cable configuration:

  • Type A: 3m flying lead cable

  • Type B: 3m cable with European CNC connectors

  • Type C: 3m cable with FANUC connectors

Model No.: 539-371-00, 539-371-01, 539-371-02, 539-371-03, 539-373-00, 539-373-01, 539-373-02, 539-373-03, 539-374-00, 539-374-01, 539-374-02, 539-374-03, 539-375-00, 539-375-01, 539-375-02, 539-375-03, 539-376-00, 539-376-01, 539-376-02, 539-376-03, 539-377-00, 539-377-01, 539-377-02, 539-377-03, 539-378-00, 539-378-01, 539-378-02, 539-378-03, 539-379-00, 539-379-01, 539-379-02, 539-379-03, 539-380-00, 539-380-01, 539-380-02, 539-380-03, 539-381-00, 539-381-01, 539-381-02, 539-381-03, 539-382-00, 539-382-01, 539-382-02, 539-382-03, 539-383-00, 539-383-01, 539-383-02, 539-383-03, 539-384-00, 539-384-01, 539-384-02, 539-384-03, 539-385-00, 539-385-01, 539-385-02, 539-385-03, 539-386-00, 539-386-01, 539-386-02, 539-386-03, 539-387-00, 539-387-01, 539-387-02, 539-387-03, 539-388-00, 539-388-01, 539-388-02, 539-388-03, 539-389-00, 539-389-01, 539-389-02, 539-389-03, 539-390-00, 539-390-01, 539-390-02, 539-390-03, 539-391-00, 539-391-01, 539-391-02, 539-391-03, 539-392-00, 539-392-01, 539-392-02, 539-392-03, 539-393-00, 539-393-01, 539-393-02, 539-393-03, 539-394-00, 539-394-01, 539-394-02, 539-394-03, 539-395-00, 539-395-01, 539-395-02, 539-395-03
