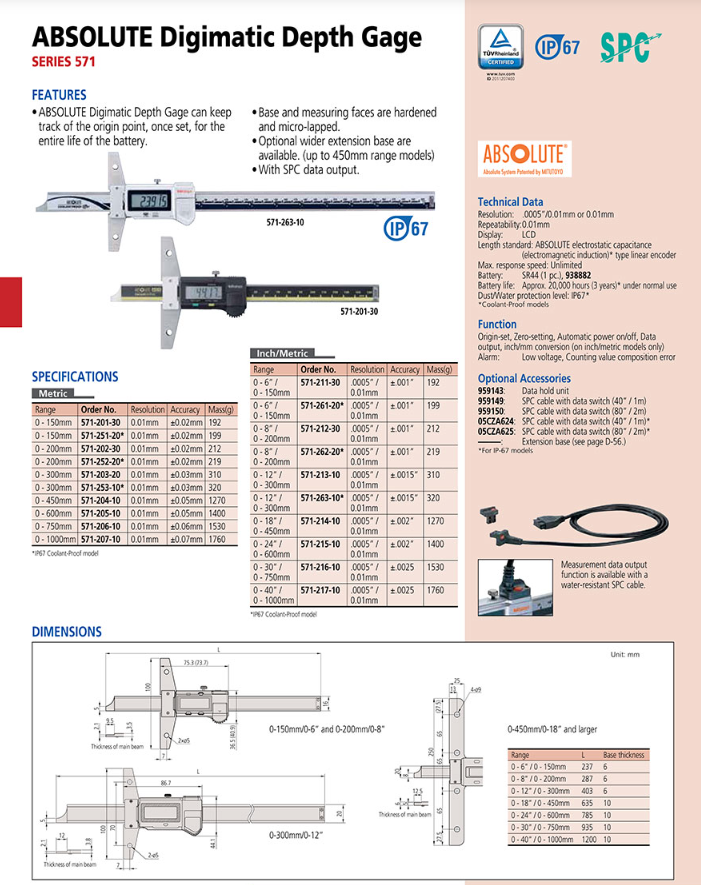

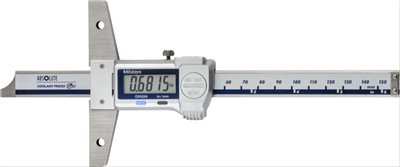

Mitutoyo: ABSOLUTE Digital Depth Gauge (571 Series)

· Enables stable depth measurement with a resolution of 0.01 mm.

A Mitutoyo waterproof digital depth gauge suitable for use in the presence of coolant or cutting oil. Hardened stainless steel construction with a 9.8 inch base. ABSOLUTE System scale for error free, high-speed measurement. SPC data output. The digital ABS depth gauge with 0 to 6" / 0 to 150 mm range is IP67 coolant proof and features the ABSOLUTE system that gives reliable measurements. With its IP67 protection level, it has excellent resistance against water and dust. Its base and measuring faces are hardened and micro-lapped for robustness.

Mitutoyo 571-261-20

• ABSOLUTE Digimatic Depth Gauge can keep track of the origin point once set for the entire life of the battery
• Base and measuring faces are hardened and micro-lapped
• With SPC data output
• Range: 0-6in
• Resolution: .0005in
• Accuracy: .001in
• Mass: 199g

Mitutoyo 571-263-20

• ABSOLUTE Digimatic Depth Gauge can keep track of the origin point once set for the entire life of the battery
• Base and measuring faces are hardened and micro-lapped
• With SPC data output
• Range: 0-12in
• Resolution: .0005in
• Accuracy: .0015in
• Mass: 320g

Model No.: 571-261-20, 571-263-20
