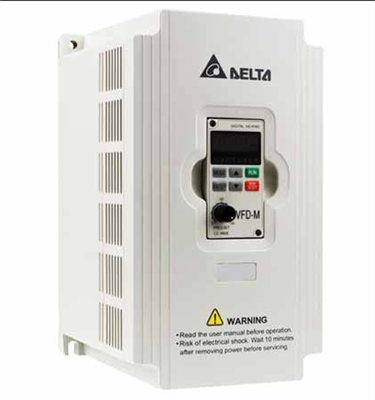

Delta: Inverters-AC Motor Drives VFD007M53A
VFD007M53A



Alternate View


Shop by Phone (972) 719-5555 or Email inquiry@e-motionsupply.com.
Price : $408.80


Availability: subject to availability
Order #: VFD007M53A
Qty:

Description Ordering Information Specifications and Drawings


Delta: AC Motor Drives (VFD-M Series)

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

VFD-M Series

Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.

Specifications:

  • Output frequency 0.1~400 Hz

  • Adjustable V/f curve and vector control

  • Carrier frequency up to 15 kHz

  • Auto torque boost & slip compensation

  • Built-in PID feedback control

  • Built-in MODBUS communication, baud rate up to 38400 bps

  • 0 speed holding function

  • Built-in sleep / revival function

  • Support communication module (DN-02, LN-01, PD-01)

Applications:

  • Packing machine

  • Dumpling machine

  • Treadmill

  • Temperature/humidity control fan for agriculture and aquaculture

  • Mixer for food processing

  • Grinding machine

  • Drilling machine

  • Small size hydraulic lathe

  • Elevator

  • Coating equipment

  • Small size milling machine

  • Robot arm of injection machine (clamp)

  • Wood machine (two-side woodworking planer)

  • Edge bending machine

  • Elasticizer

Supporting Links:

Delta_VFD-M_Catalog.pdf.
Delta_VFD-M_Manual.pdf.
