Renishaw: QUANTiC40 Incremental readhead Q40BJX05D50B
Renishaw QUANTiC incremental encoder readhead Q40BJX05D50B



Price : $558.00


Availability: Usually Ships in 6 to 8 Weeks
Order #: Q40BJX05D50B
Qty:

Description Ordering Information Specifications and Drawings


Renishaw: QUANTiC40 RTLC incremental encoder readhead Q40BJX05D50B

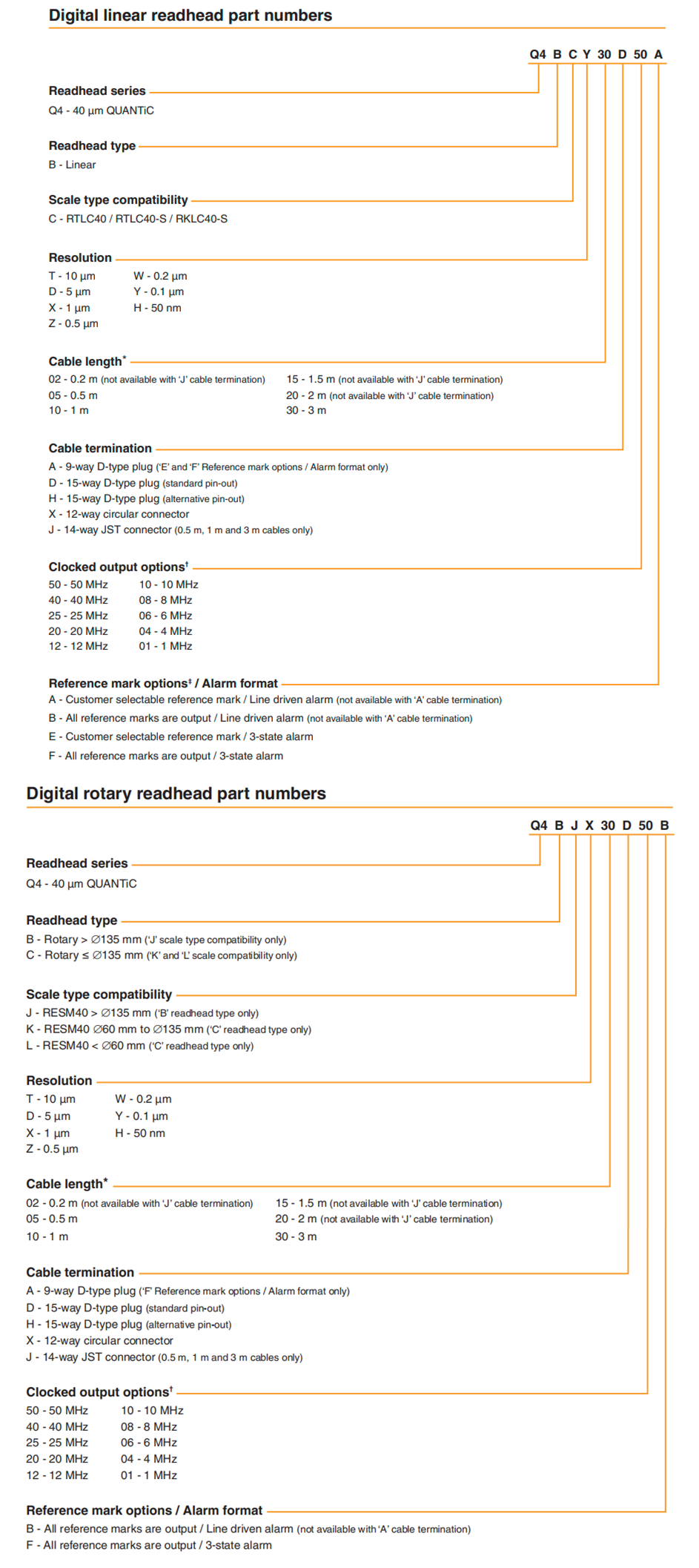

(Quantic40 ROT >135mm 1um 0.5m D 50MHZ)
The QUANTiC encoder system integrates Renishaw's filtering optics design and interpolation technology to create a super-compact, robust, incremental open optical encoder. QUANTiC encoders are easy to use with exceptionally wide installation and operation tolerances, along with built-in calibration functions.

QUANTiC readheads offer digital output and a new analogue output variant with a wide variety of configurations and linear or rotary scale options. Speeds up to 24 m/s can be achieved to meet the most demanding motion control requirements.

The QUANTiC™ encoder series provides robust incremental position measurement for linear, partial arc and rotary systems with excellent metrology and wide installation tolerances. This reduces or eliminates the need for mounting adjustment during the installation process.

QUANTiC encoders include Renishaw’s high-performance integrated interpolation technology, removing the need for additional adaptors or separate interfaces. This provides stable and reliable position signals for a wide range of demanding measurement and motion control applications.

The easy-to-use built-in installation and calibration functions can be enhanced with the optional Advanced Diagnostic Tool ADTi-100, providing comprehensive real-time encoder feedback during installation and diagnostics.

In addition to Renishaw’s proven unique filtering optics, QUANTiC encoders have a new detector design which gives superior signal purity and dirt immunity. They are combined in a compact readhead body, joining the VIONiC™ and TONiC™ family of encoders.

Robust position measurement over contamination

QUANTiC readheads ensure excellent motion control performance in a wide range of applications by minimising positional error over scale contamination. A new detector design provides an additional layer of signal filtering which helps to eliminate non-harmonic signal frequencies, ensuring low Sub-Divisional Error (SDE) and minimal signal variation over dirt or contamination on the scale.

Easy installation and set-up

The advanced optical design and signal processing of the QUANTiC encoder provides increased installation and operational tolerances whilst maintaining metrological performance. Low cost of ownership is achieved through reduced installation and set-up times.
Model No:Q40BJX05D50B
