Renco: Incremental Rotary Encoder without integral bearing R35iL-1024/0-6mm-PP/0-5V-1-R-..-U (ID: 1086065-05)

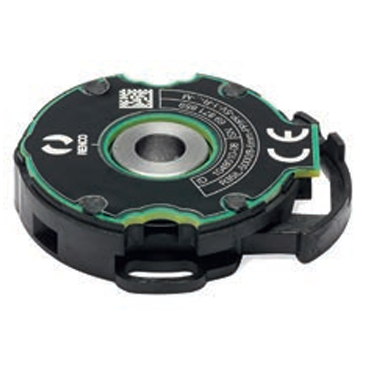

The RENCO R35i is an incremental optical rotary encoder without an integral bearing. Its key features include a compact design, with a 35 mm outer diameter and a height of 14 mm, and a built-in mounting aid for convenient self-centering installation. In conjunction with its OPTO-ASIC technology, the RENCO R35i offers optimal functionality in a highly compact design.

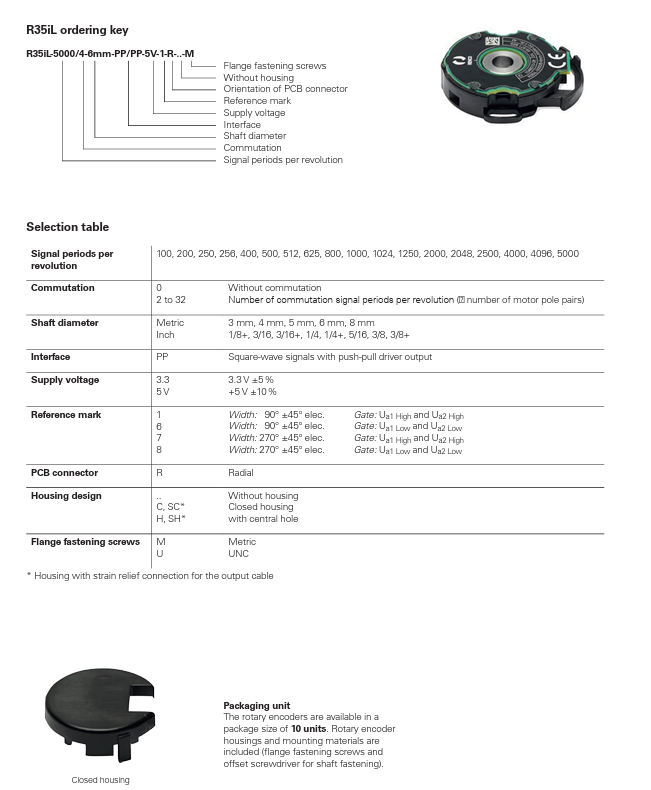

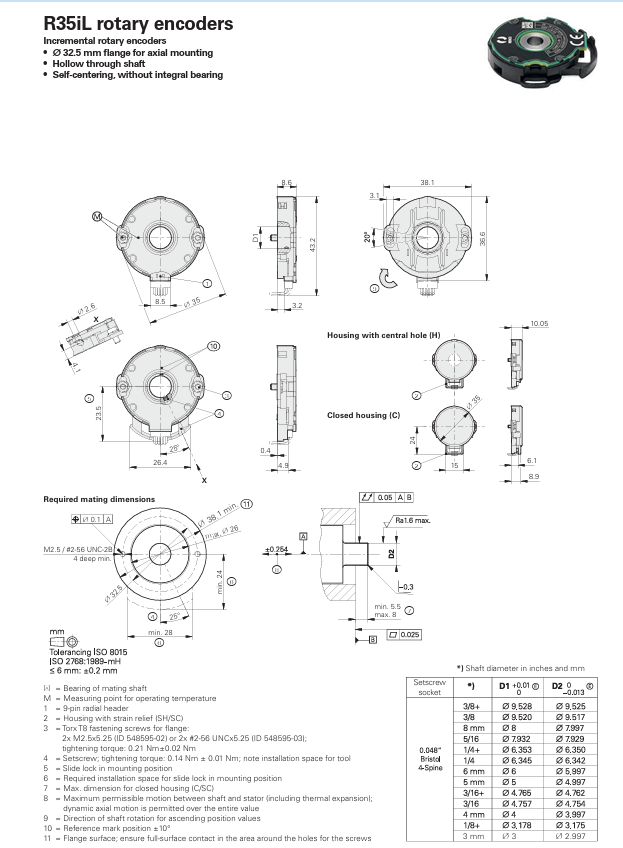

For an even flatter footprint, RENCO also offers the R35iL rotary encoder, featuring a low height of only 8.6 mm.

Key features of the new generation of RENCO rotary encoders:
• Built-in signal monitoring and visual indicator in the event of a malfunction (red LED)
• Position feedback at a very high resolution of up to 40 000 measuring steps per revolution
• Highly accurate output of the UVW track sequence for motors with up to 32 pole pairs
• Electronic adjustment of the motor commutation
• Electronic ID label: ID number, serial number and OEM memory
• Wide operating temperature range of –30 °C to +115 °C

Inspecting the rotary encoder for proper mounting and functioning, as well as adjusting it, with the PWT 101:
• Mounting inspection
• Output signals
• Signal level
• Counts
• Commutation offset
• Encoder information
• Reading/writing to OEM memory
