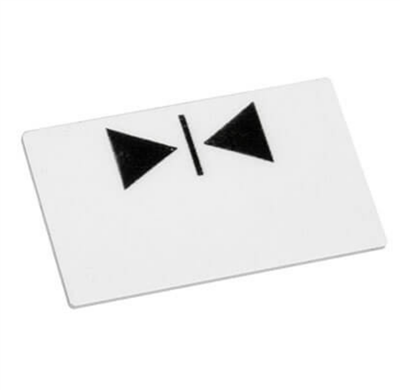

RLS: Stick-on Reference Mark LM10SRM00

The LM10SRM00 stick-on reference mark is a self-adhesive marker designed for RLS magnetic scales (specifically MS10), allowing for flexible, field-applied reference positions. It is easily applied to the top of the scale, often used for prototypes and custom positions, requiring the LM10ARM00 applicator tool for precise placement.

Key Details for LM10SRM00:

Purpose: Allows positioning of the reference mark on-site for MS10 magnetic scales.
Application: Used with the LM10ARM00 tool to ensure correct alignment.
Recommendation: Best for prototyping; for serial production, a pre-magnetized scale is recommended.
Compatibility: Designed for use with LM10 incremental linear magnetic encoder systems.
Installation Note: The sticker must be applied on the same side as the reference mark designators on the scale

The stick-on reference mark can be easily applied to the magnetic scale.
Part number: LM10SRM00
