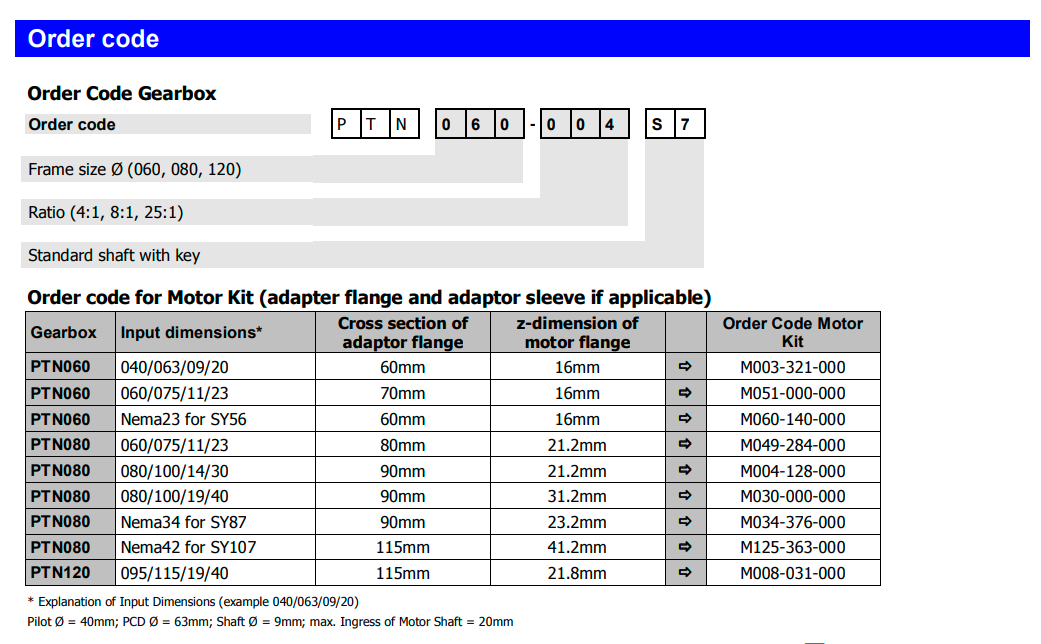

Ordering Information

Specifications and Drawings

Parker: Economic Inline Planetary Gearboxes (PTN Series)PTN060-004S7

Available in 60-80mm frame sizes, the economic PTN-series planetary gearheads are suitable for all applications where low backlash is not required.

The PTN-series Economy Planetary Gearbox was developed for applications where low backlash is not required.

Features:

Frame Sizes: 60 – 80mm
Ratio Options: 4:1, 8:1 and 25:1
Backlash: to < 25 arc-minutes
Efficiency: up to 96%
Quiet Operation: less than 65db
Input Speeds: up to 4000 RPM
Space-saving design
High output torque
Fast and easy motor mounting
Direction of rotation equidirectional

Model No.: PTN060-004S7, PTN080-004S7, PTN120-004S7

Downloads:

3D CAD (STP) - Gearbox : PTN060 / 25:1

3D CAD (STP) - Gearbox : PTN060 / 4:1, 8:1

3D CAD (STP) - Gearbox : PTN080 / 25:1

3D CAD (STP) - Gearbox : PTN080 / 4:1, 8:1

3D CAD (STP) - Mounting Kit : PTN060/M051-000-00/060/075/11/23

3D CAD (STP) - Mounting Kit : PTN060/M060-140-00/for stepper motor SY56

3D CAD (STP) - Mounting Kit : PTN080/M004-128-000/080/100/14/30

3D CAD (STP) - Mounting Kit : PTN080/M030-000-000/080/100/19/40

3D CAD (STP) - Mounting Kit : PTN080/M034-376-000/for stepper motor SY87

3D CAD (STP) - Mounting Kit : PTN080/M049-284-000/060/075/11/23

3D CAD (STP) - Mounting Kit : PTN080/M125-363-000/for stepper motor SY107

3D CAD (STP) - Mounting Kit : PTN60/M003-321-00/040/063/09/20
