Parker: Ballscrew and Leadscrew Driven Stages (MX80S)

Reliable, low profile miniature positioner

The MX80S miniature positioner is the screw driven member of Parker’s MX80 and mSR family. Like its counterparts, the MX80L, mSR80, and mSR100 linear motor-driven stages, and the MX80M manual stage, the MX80S is designed for applications requiring reliable linear positioning in space restricted applications. It is the complementary product that provides easy mounting compatibility where screw driven stage performance is ideal for the application.

The MX80S can be supplied with a high-efficiency leadscrew drive capable of reaching 200 mm per second velocity, or a precision ground ballscrew drive offering axial thrust to 123 N.

The leadscrew drive employs a PTFE coated leadscrew with a preloaded nut to produce extremely smooth linear translation. A choice of three leads provides improved opportunity for matching desired velocity/ resolution requirements.

The 2.0 mm lead ballscrew stage offers high performance 24/7 operation with a thrust load capacity of 123 N (28 lb) and velocity to 100 mm/second at 100% duty cycle.

The MX80S low profile miniature positioner offers reliable linear positioning for space restricted applications. It can be driven by a 2mm lead precision ground ballscrew or a high efficiency PTFE coated leadscrew and can be driven by either a servo or stepper motor.

Miniature Size - Low Profile (35 mm high X 80 mm wide)

Normal or cleanroom environments

Multi-axis platform

Selectable travels:25,50,100,150 mm.

1.5�m Bi-directional Repeatability:

Cross Roller Bearing (zero cage creep option)

Resolutions:1.0; 2.0; or 10.0 mm leads

123N Axial Thrust

Digital limit/home system

Stepper or servo motor driven

Dowel holes for repeatable payload mounting

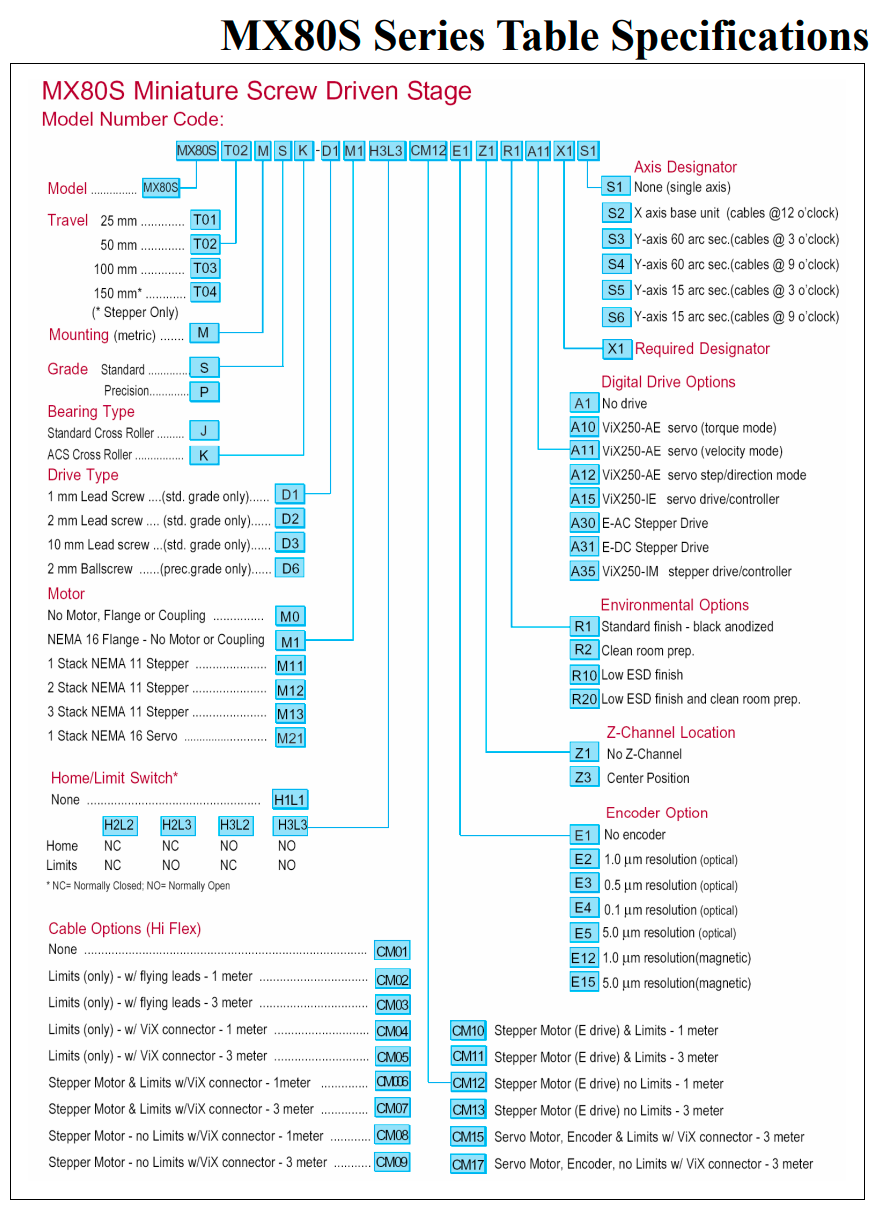

Model Number Code: MX80ST01MSK-D1M1H3L3CM12E1Z1R1A11X1S1, MX80ST02MSK-D1M1H3L3CM12E1Z1R1A11X1S1, MX80ST03MSK-D1M1H3L3CM12E1Z1R1A11X1S1, MX80ST04MSK-D1M1H3L3CM12E1Z1R1A11X1S1

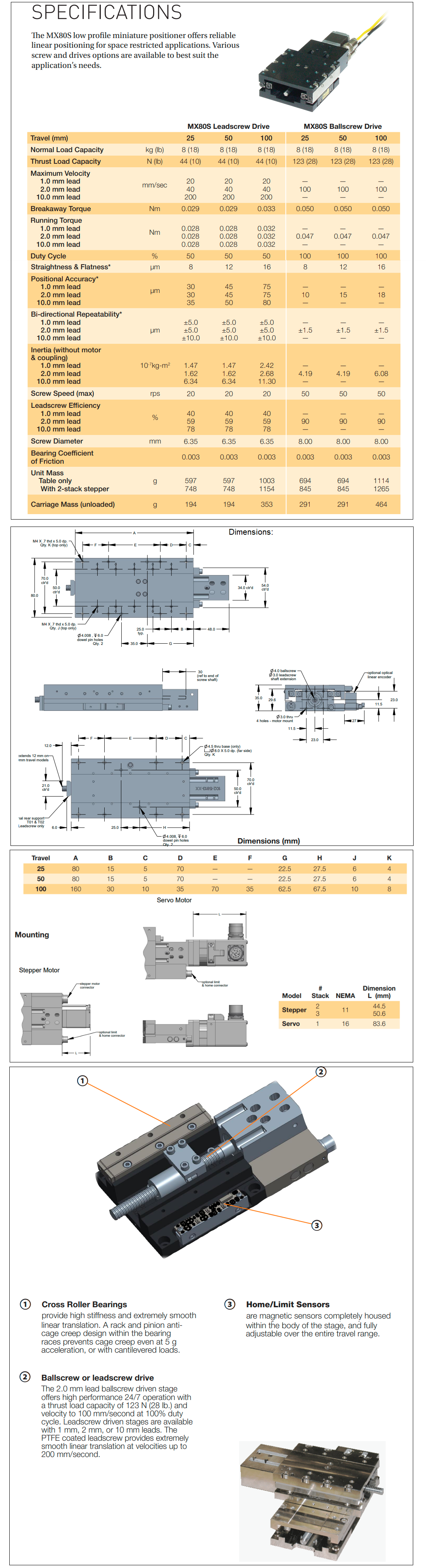

Catalog and Specifications
