Parker: RM Series Industrial Rotary Tables R150M7MP2C04L1H1E0R1

The RM Series offers an unparalleled combination of high accuracy and high load capacity. These rotary stages utilize a precision worm gear with the worm “flexed” against the gear to ensure a proper mesh.

This feature provides high repeatability with very smooth operation. Additionally, the rotary stages incorporate an oversized preloaded cross roller bearing, offering exceptional stiffness and load capacity.

• Unique self-compensating preload to limit backlash

• Solid or thru bore construction

• Robust bearing design for high-load capacity

• Built-in limit switches

• Aluminium construction with stainless steel top plate

Applications

• Electronic assembly

• Fiber optics • Medical • Packaging

• Pharmaceutical

• Robotics

• Semiconductor

When to Use

• High accuracy

• High loads

• Compact

• High stiffness

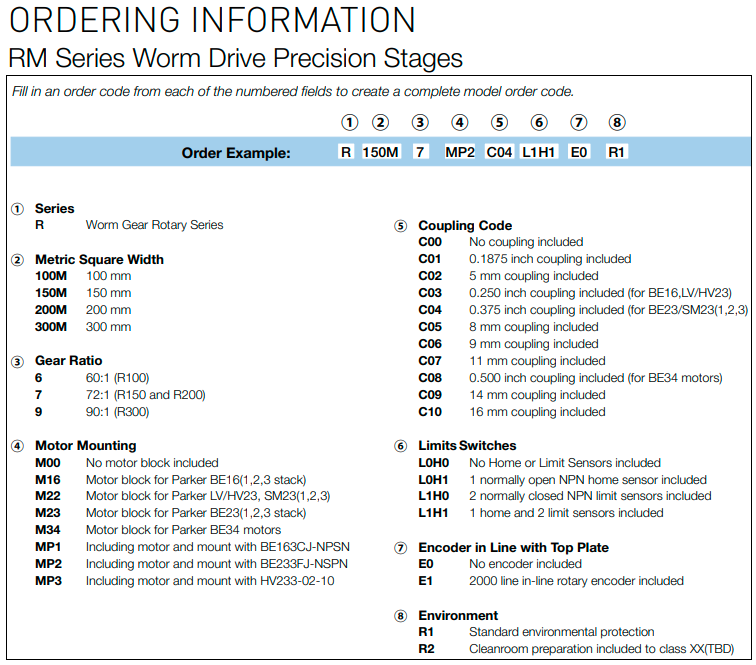

Model No: R100M7MP2C04L1H1E0R1, R150M7MP2C04L1H1E0R1, R200MM7MP2C04L1H1E0R1, R300M7MP2C04L1H1E0R1

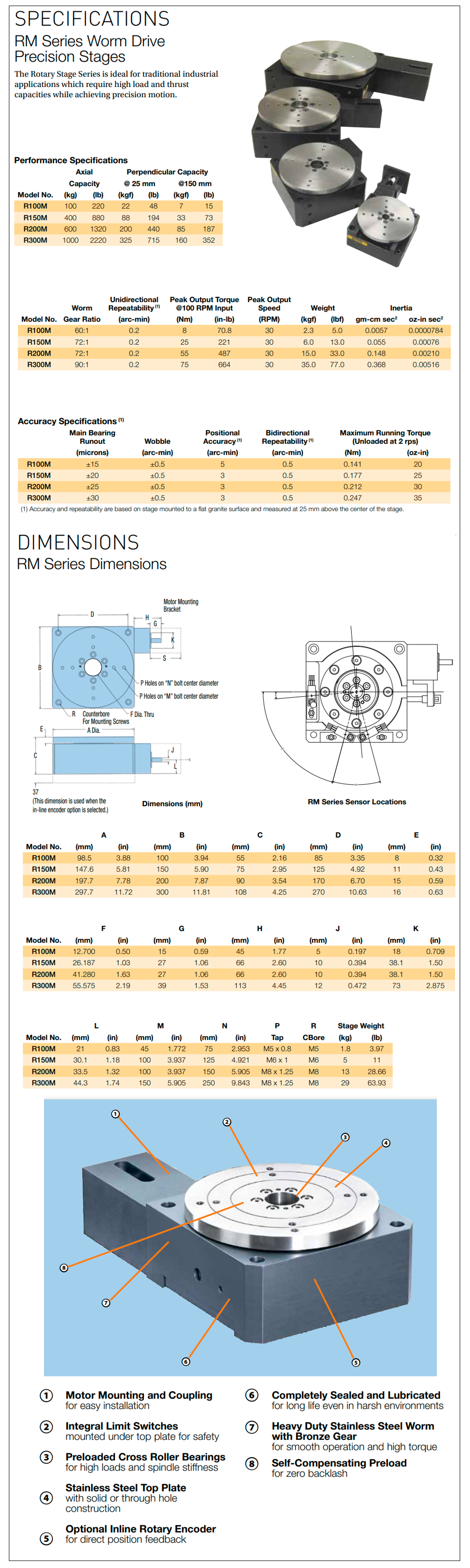

Catalog and Specifications
		RM Series Catalog
Download - Drawings and CAD files
		CAD Files
		HTML RM Series Dimensional Drawings
