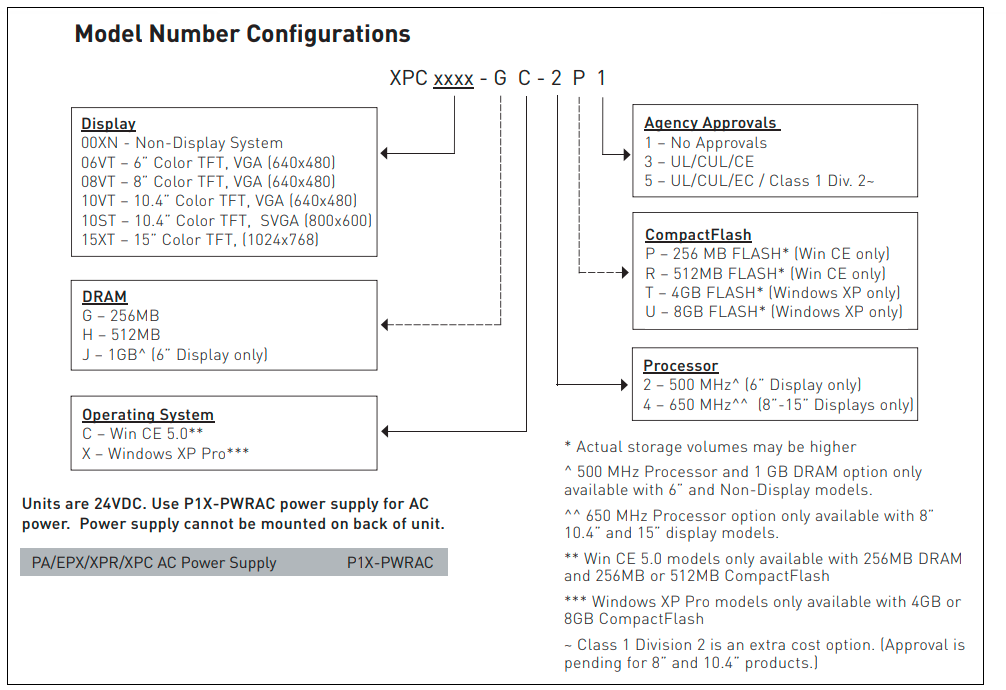

Order #: XPC


Model Number/Code*:


.

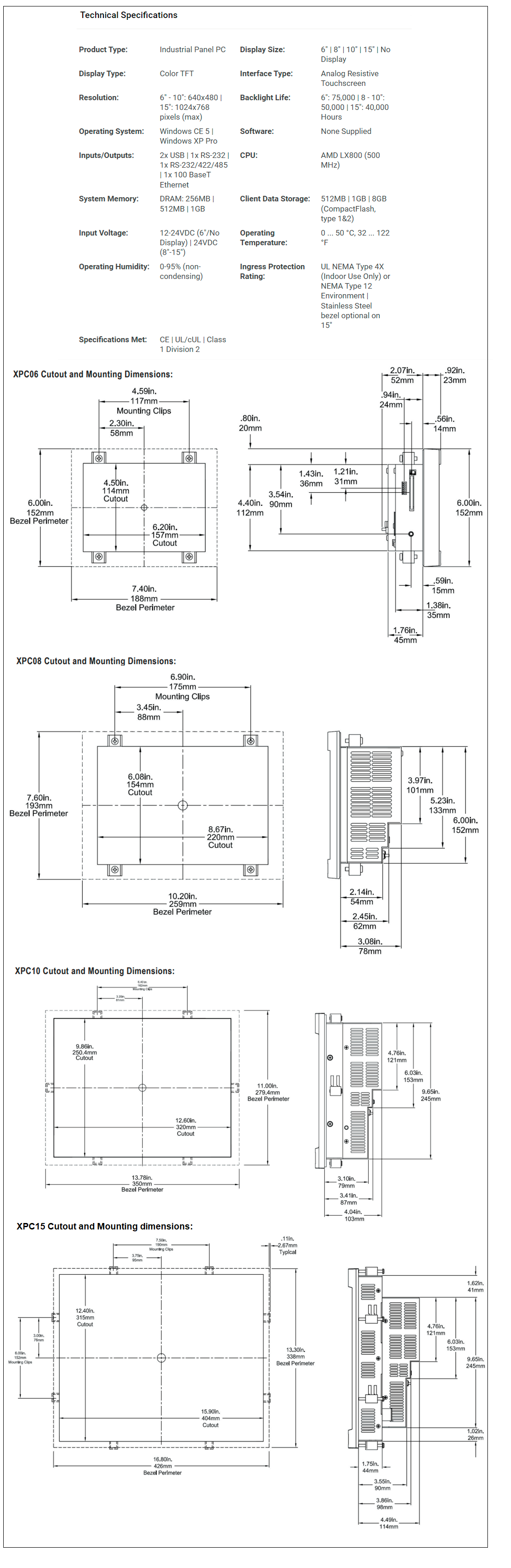

Description Ordering Information Specifications and Drawings


Parker: PowerStation (XPC Series)

Big Computing Power and Connectivity In A Small Package

This CTC-designed and manufactured XPC PowerStation is a compact Industrial PC with a 6”, 8”, 10” or 15” TFT panel mount touchscreen and a new non-display system. Pre-Configured with Windows CE Version 5, this NEMA4/ 4X-rated hardware platform offers a cost and space saving solution that is ideal for many industrial computing applications. XPC PowerStations also come with a Pre-Configured Client image for use with our popular Interact Xpress Distributed HMI product. Just provide the IP address for an Xpress Server and you are ready to go as a Web Client.

Each XPC system includes a range of standard features such as CompactFlash non-rotating storage, 2 USB ports, 2 serial ports and a 100BaseT Ethernet port. XPC PowerStations are industrial-hardened workstations that offer next generation processor technology in an affordable configuration.

XPC PowerStation touchscreen HMI panels have 6"-15" screens plus a no-display option. These compact embedded PCs are designed to be used as a dedicated industrial operator interface & come with WinCE 5 or XP Pro OS and a preconfigured Xpress Web Client.


This Parker-designed and manufactured XPC2 PowerStation is a compact Industrial PC with a 6", 8", 10" or 15" TFT panel mount touchscreen and a non-display option. The XPC2 family of robust, embedded PC's have been designed to be used as a dedicated industrial operator interface. The XPC2 is available with Windows CE 5 or XP Pro operating systems and without the Interact Xpress HMI software. Mechanically, the XPC2 PowerStation is designed to fit previous model XPC PowerStation mounting cut-outs and can be used as a direct, drop-in replacement while maintaining the same touchscreen functionality and NEMA Type 4X or Type 12 sealing.


XPC PowerStation Industrial Panel PC - Features:

No display, 6", 8", 10” and 15" touchscreen display options:
6" TFT: 320x240 (QVGA) or 640x480 (VGA) / - 8" & 10" TFT: 640x480 (VGA)
12" TFT: 1024x768 (XGA) / - No Display: 1024x768 (XGA) analog output

AMD LX800 CPU, 500MHz

Windows® CE Version 5 (Standard) / Windows® XP Pro Available

Preconfigured Xpress Web Client

256KB to 1GB memory

256MB to 8G CompactFlash (Type 1&2) user storage

2x USB 2.0 ports

2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485)

1x 100BaseT Ethernet port

Tested for UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment

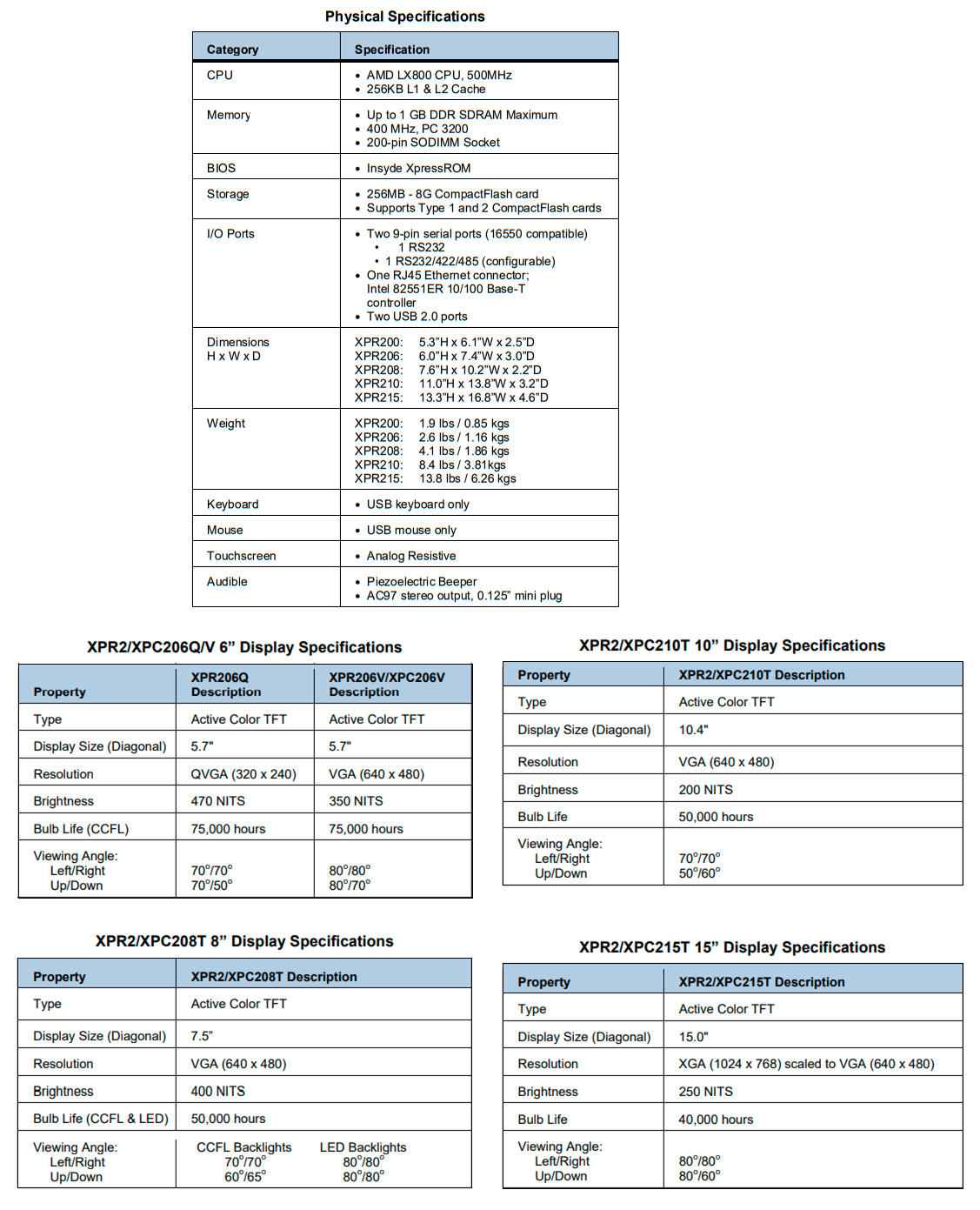

Technical Specifications:

Product Type: Industrial Panel PC

Display Size: 6" | 8" | 10" | 15" | No Display

Display Type: Color TFT

Interface Type: Analog Resistive Touchscreen

Maximum Screen Resolution (Pixels): 6" - 10": 640x480 | 15": 1024x768

Backlight Life (Hours): 6": 75,000 | 8 - 10": 50,000 | 15": 40,000

Operating System: Windows CE 5 | Windows XP Pro

HMI Software: None Supplied

I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 100 BaseT Ethernet

CPU: AMD LX800 (500 MHz)

System Memory (DRAM): 256MB | 512MB | 1GB

Client Data Storage: 512MB | 1GB | 8GB (CompactFlash, type 1&2)

Input Supply Voltage: 12-24VDC (6"/No Display) | 24VDC (8"-15")

Operating Temperature (C): 0 ... 50

Operating Temperature (F): 32 ... 122

Operating Humidity: 0-95% (non-condensing)

Protection/Ingress Rating: UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment | Stainless Steel bezel optional on 15"

Certificates: CE | UL/cUL | Class 1 Division 2 (optional)

Downloads

XPC Industial PC Family

XPC2 PowerStation - User Guide

XPC200 - 3D CAD (IGS)

XPC206 - 3D CAD (IGS)

XPC208 - 3D CAD (IGS)

XPC210 - 3D CAD (IGS)

XPC215 - 3D CAD (IGS)

Model No: XPC200, XPC206, XPC208, XPC210, XPC215
