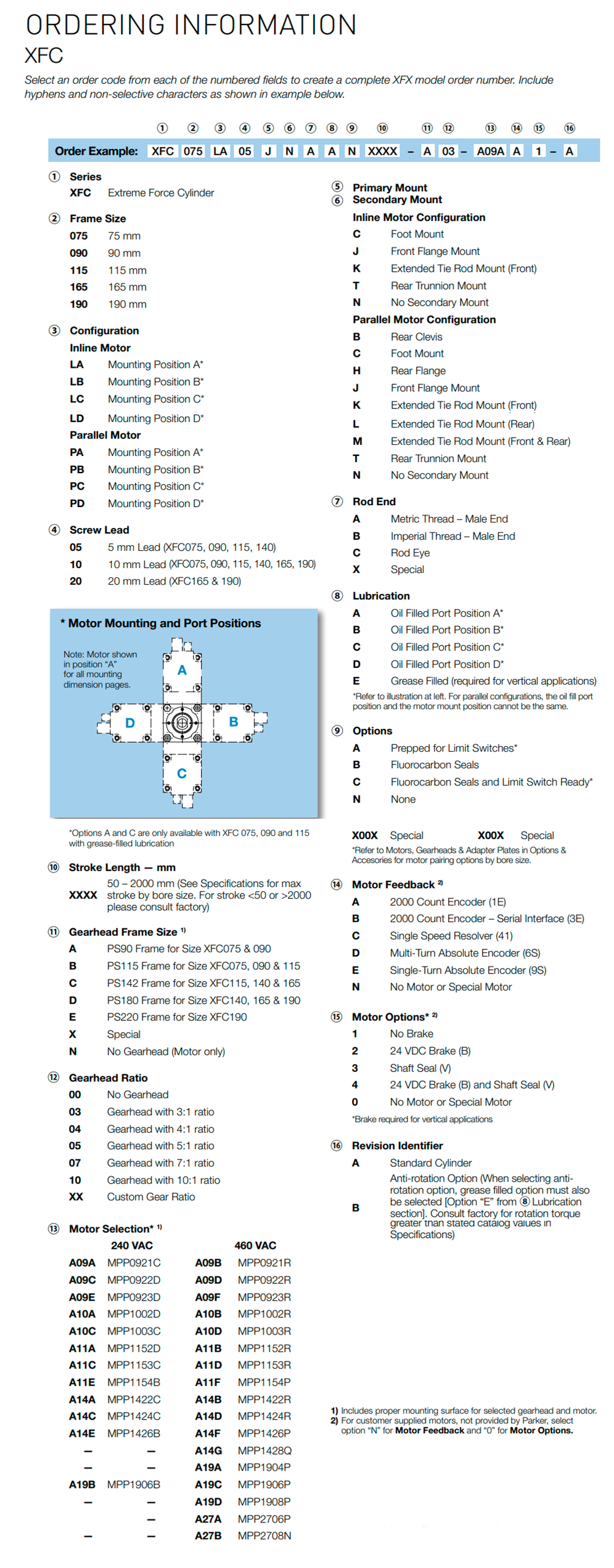

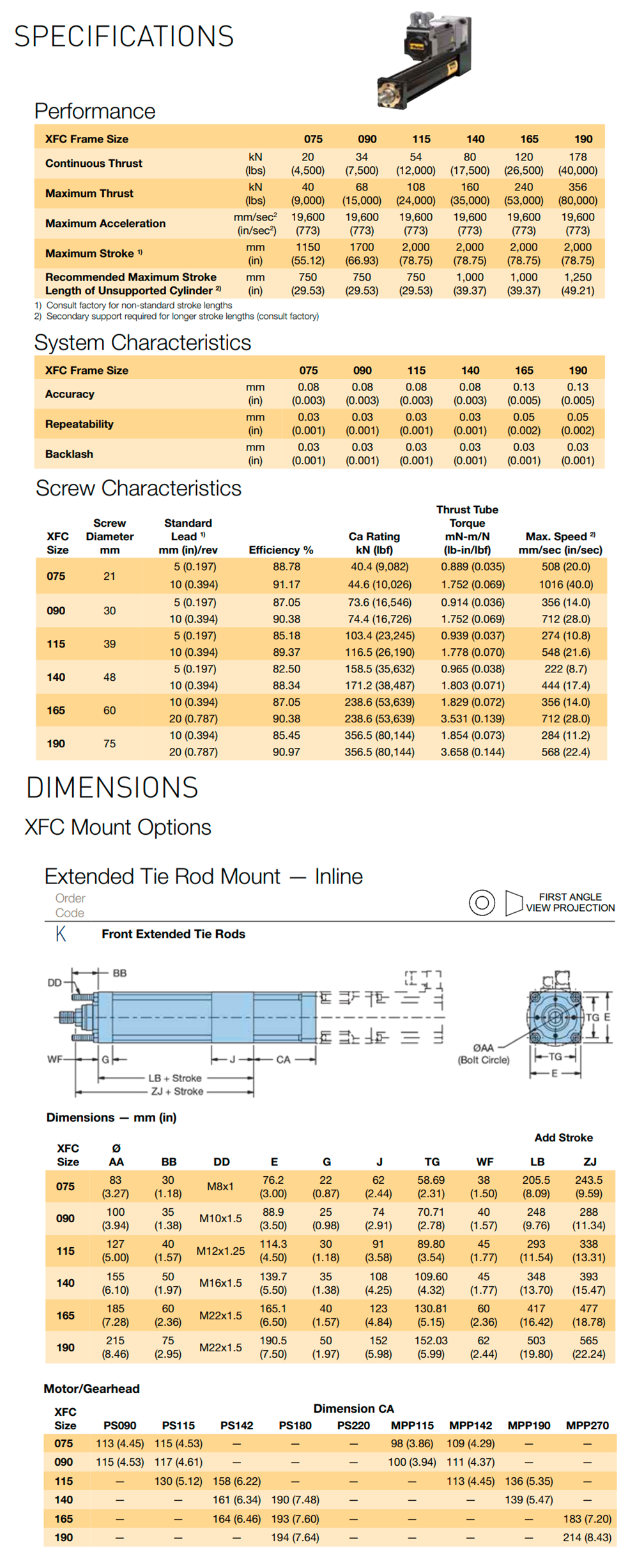

Description Ordering Information Specifications and Drawings


Parker: XFC Series Extreme Force Roller Screw Driven Electric Cylinders (XFC-XXX)
Parker is pleased to offer a family of high thrust electric cylinders featuring roller screw drive technology. The XFC Series further extends the feature rich and force dense offering of Parker’s electric cylinder products. The XFC Electric Cylinder is designed to provide machine builders a high Parker is pleased to offer a family of high thrust electric cylinders featuring roller screw drive technology. The XFC Series further extends the feature rich and force dense offering of Parker’s electric cylinder products. The XFC Electric Cylinder is designed to provide machine builders a high

As a worldwide leader in fluid power cylinder products, Parker has combined the best of both worlds into one unique product. All the benefits of electromechanical control and cleanliness combined with the structural rigidity and durability of a traditional hydraulic tie rod cylinder.

Flexibility & Versatile Programmability

In applications where high loads are required, roller screws offer a very attractive solution:

• Servo motors and controls feature simplified programming

• Electromechanical control systems provide infinite programmability

• Performance advantages not easily obtained by comparable fluid power technology include multiple move profiles, adjustable acceleration and deceleration, force control, and absolute positioning capabilities

These features allow the system to easily adapt to changing application conditions and performance requirements with minimal modification.

Design Considerations

Installation

Due to the reduced number of components required for a complete system, the commissioning time required for operation is significantly reduced relative to comparable fluid power systems. This allows system builders to quickly install, troubleshoot, and test system capabilities faster and more reliably than other alternatives.

Anti-Rotation

Anti-rotation can now be achieved in XFC actuators thanks to a new design that incorporates a keying feature on the internal surface of the tubular body. This option can be configured through our standard part number structure.

Maintenance

Roller screw cylinder systems require little or no maintenance when compared to their fluid power alternatives, while still delivering long life and high performance. Series XFC cylinders are designed to be low maintenance with the factory installed full synthetic lubrication. For high duty cycle applications (>50%), oil filled cylinders are available with ports for recirculation as required.

Design Features

• Pre-engineered package

• Performance matched components

• Environmental protection

• Laser certified precision

• All steel construction with standard metric hydraulic type tie rod construction for durability, stiffness, and rigidity

• Elastomeric seals throughout with no gaskets for complete sealing

• Opposed preloaded angular contact bearings for bi-directional force capability

• Roller screw drive system for increased life, load, and shock loading capabilities

• Inline and parallel gear drive configurations for full transfer of thrust force

• Parker Stealth family advanced planetary gearheads direct mount to cylinder for standard reduction options from 3:1 to 10:1 with 100:1 available

• Parker MPP Series brushless servo motors for complete Parker system solution with gearhead, motor, drive, and controls

• Rod wiper and seal based on proven TS2000 design and composite rod bearing designed to survive rugged environments with minimal maintenance for the life of the cylinder
