Overview

Description

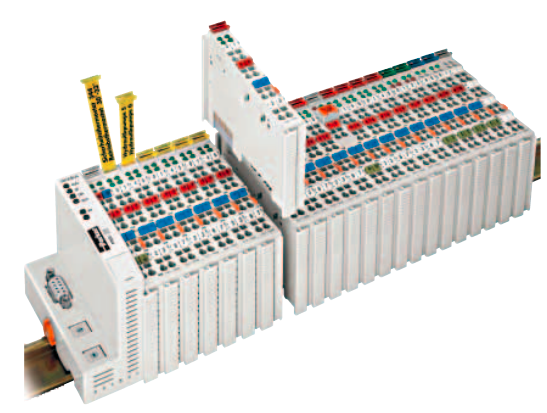

Parker Hannifin's modular expandable bus terminal system uses electronic devices to capture a wide variety of control signals from field devices. Connections to the field level can be implemented quickly and reliably with PIO.

PIO offers the convenience of exceptionally simple installation. The individual modules can be installed and removed without any tools.

Different modules can be combined with each other within the bus terminal system. Gold-plated contacts guarantee reliable connections between the individual modules. A conducting ground contact adds additional safety

Features

• Fieldbus independent layout

• Easy to extend with additional modules

• Exceptionally compact design

• Intrinsically-safe contacts

• Maintenance free

• Mixed voltages can be combined

• Great flexibility ensures optimal adaptability in different applications

• Integrated input filter

• Opto-isolation

• Suitable for copper cables from 0.08 mm2 to 2.5 mm2

• Error and status display (LED)

• Access options for simple signal test

• Short-circuit proof inputs

• Options for clear, unambiguous identification
