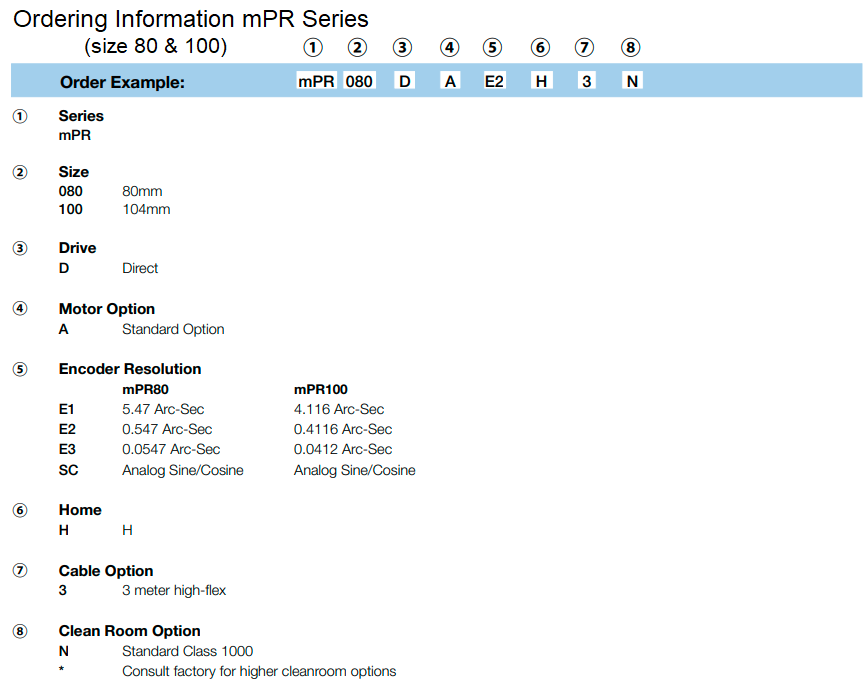

Parker: mPR Series Miniature High Precision Rotary Stage mPR080DAE2H3N

The Miniature Precision Rotary (mPR) stage is designed to meet the needs of OEMs and machine builders seeking very high precision in a compact direct drive product.

Two form factors of 80mm and 104mm diameter mount easily on top of small linear motion axes for building complete multi-axis motion systems.

The mPR is lightweight without sacrificing precision and stiffness and delivers excellent torque density.

High angular resolution and precision angular repeatability, combined with high precision runout values, make the mPR a high performer in the field of precision rotary motion control.

The mPR is driven with a direct drive, 3 phase AC servo motor which is integrated directly to the products Aluminum base. The direct drive eliminates mechanical compliance which might exist from gearing or screw driven devices.

As a result the mPR delivers excellent angular dynamic response, and high precision rotary positioning. The combination of all of these features make the mPR the ideal stage for applications in laser processing, electronics manufacturing, semiconductor inspection, and high precision metrology.

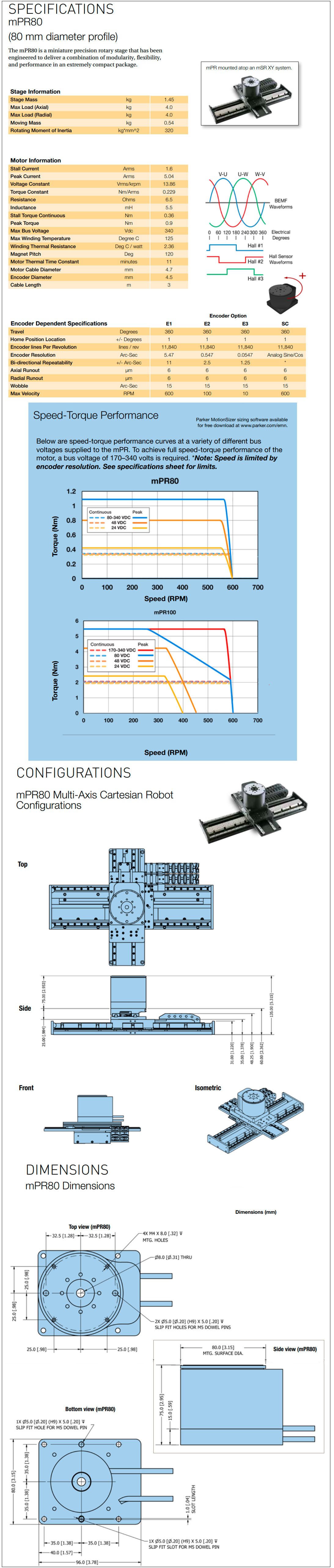

Catalog and Specifications
		mPR Applications Flyer
		mPR Series Catalog
		mPR Series Flyer
User Guides
		mPR Series Manual
Video
		mPR YouTube Video
Download - Drawings and CAD files
		mPR 100 (STEP)
		mPR 80 (STEP)
