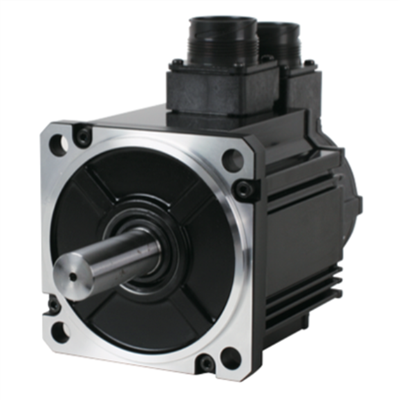

Panasonic: AC Servo Motors MINAS A6 Series MSMF502L1G6M - Low Inertia, 5.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MSMF502L1G6M - Low Inertia, 5.0 kW



Alternate View


Price : $2,717.90

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MSMF502L1G6M
Qty:

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF502L1G6M - Low Inertia, 5.0 kW


Motor Specifications:


Max. speed: 4500 r/min

Rated speed: 3000 r/min

Rated output: 5.0 kW

Rated torque: 15.9 Nm

Max. current: 102 A

Rated current: 24.0 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MFDLTB3SF

2) Basic Type: MFDLNB3SE

3) RS485 communication type:
MFDLNB3SG
