Panasonic: AC Servo Driver MFDLTB3SF - 4.0 / 5.0 kW
Panasonic: AC Servo Driver MINAS A6 Family MFDLTB3SF - 4.0 / 5.0 kW



Alternate View
Price : $3,285.50

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MFDLTB3SF
Qty:

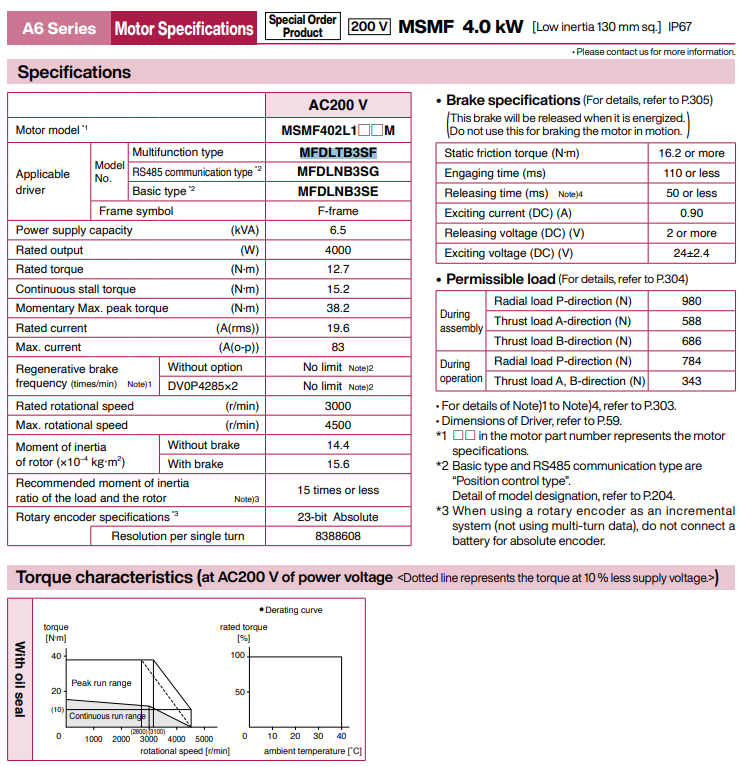

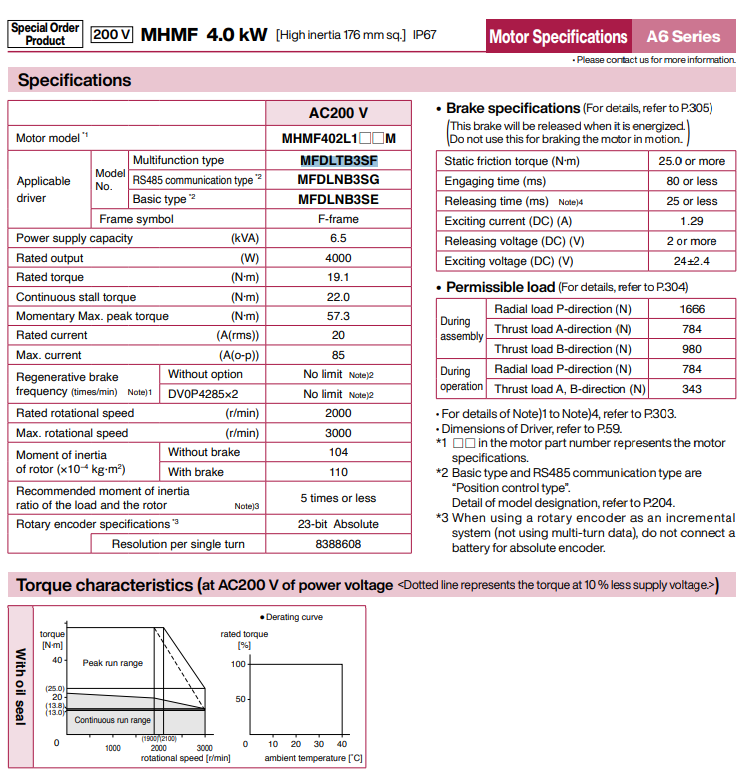

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Driver MINAS A6 Family MFDLTB3SF - 4.0 / 5.0 kW

MINAS A6 Series, 200V


Panasonic's MINAS A6 family is the latest motion and drives which feature real-time auto-tuning, which greatly reduces damage to equipment due to vibration, noise, and jitter. The MINAS A6 family assures stable operation by suppressing effects of the load to a minimum using adaptive load control which is ideal for robot motions where workload changes from moment to moment, regardless of arm posture or position.


Features:

  • MINAS A6 Series, F Frame

  • Max. current rating: 83~85 A

  • 3-phase

  • 200V, Load

  • Multi-Function type: Pulse, Analog, Full-closed, with the safety function

  • Rated Output Power: 4.0 / 5.0 kW



Share your knowledge of this product. Be the first to write a review »
