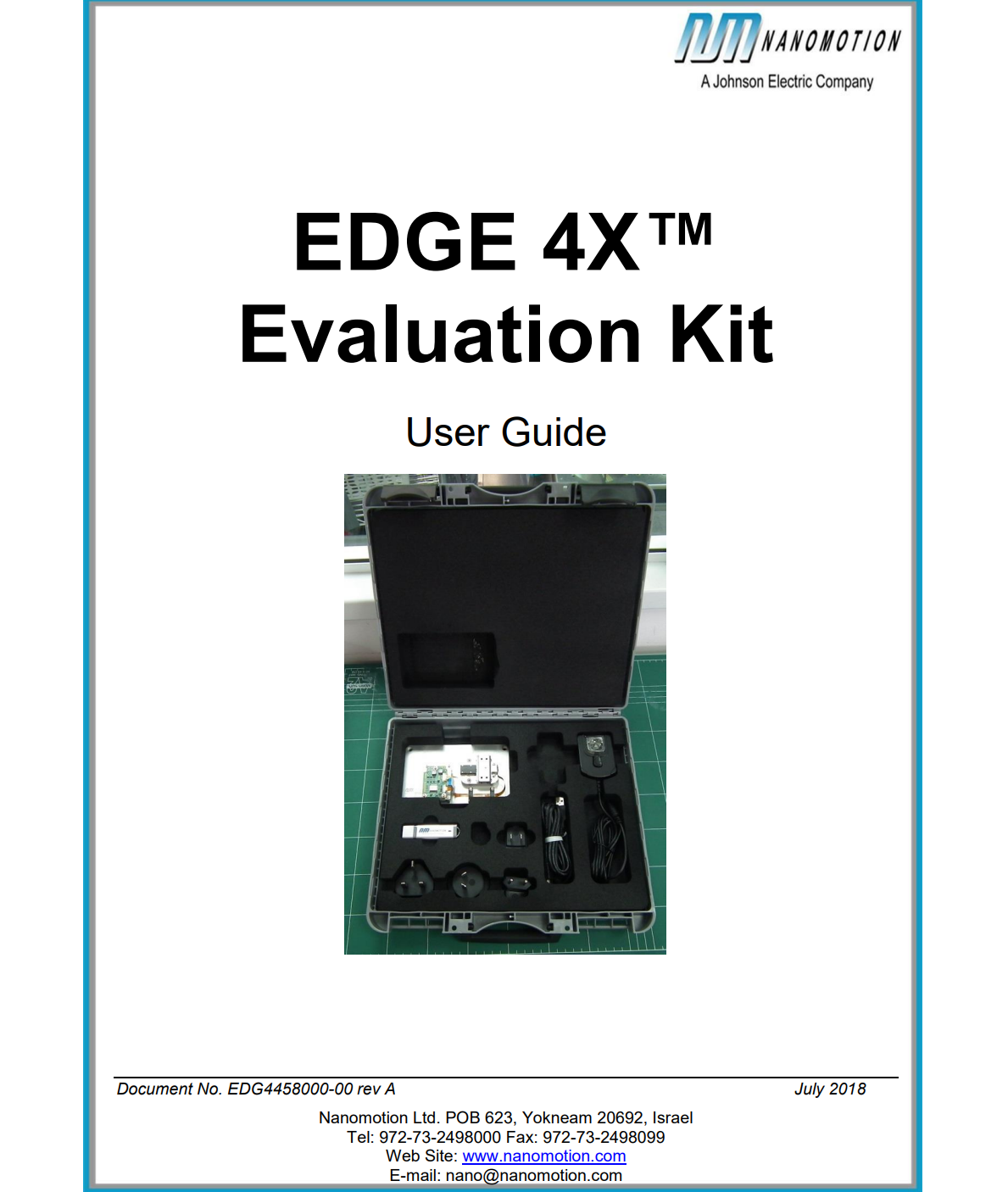

Nanomotion: Edge-4X Evaluation Kit (EDGE-4X-EK)

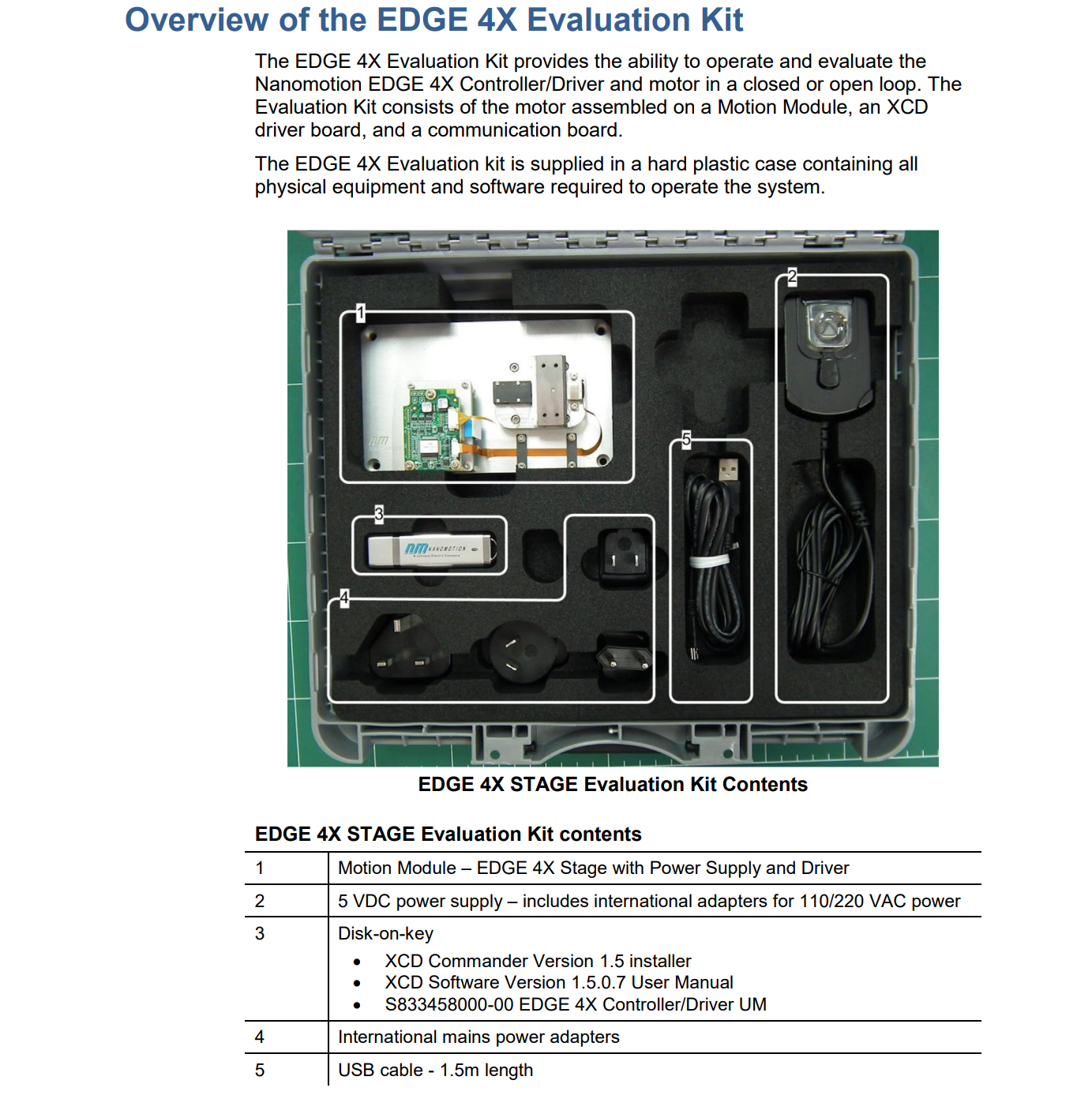

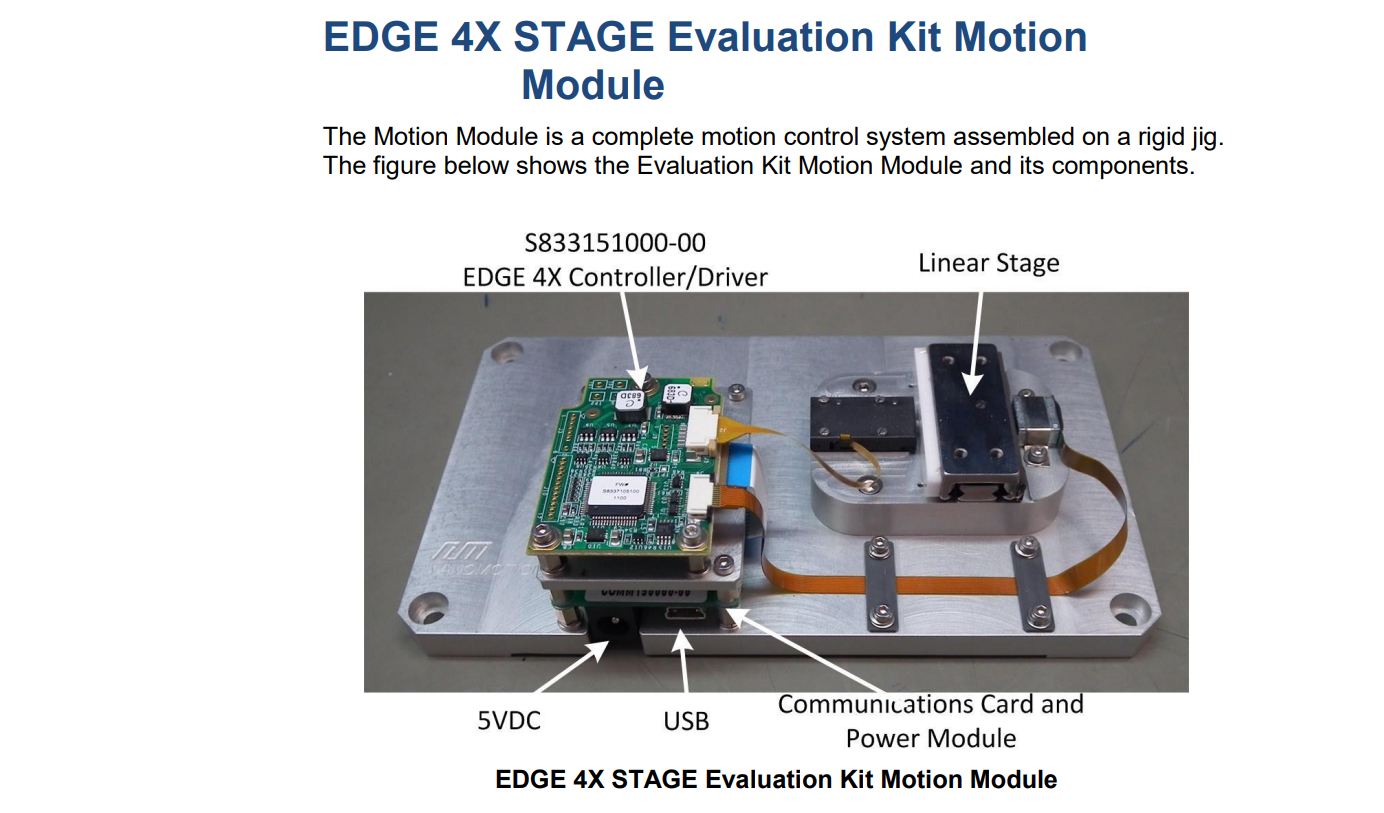

The EDGE 4X™ Evaluation Kit provides a pre-assembled motion module. The motion module includes:

• EDGE 4X Stage
• EDGE 4X Controller/Driver
• Power supply and communication card

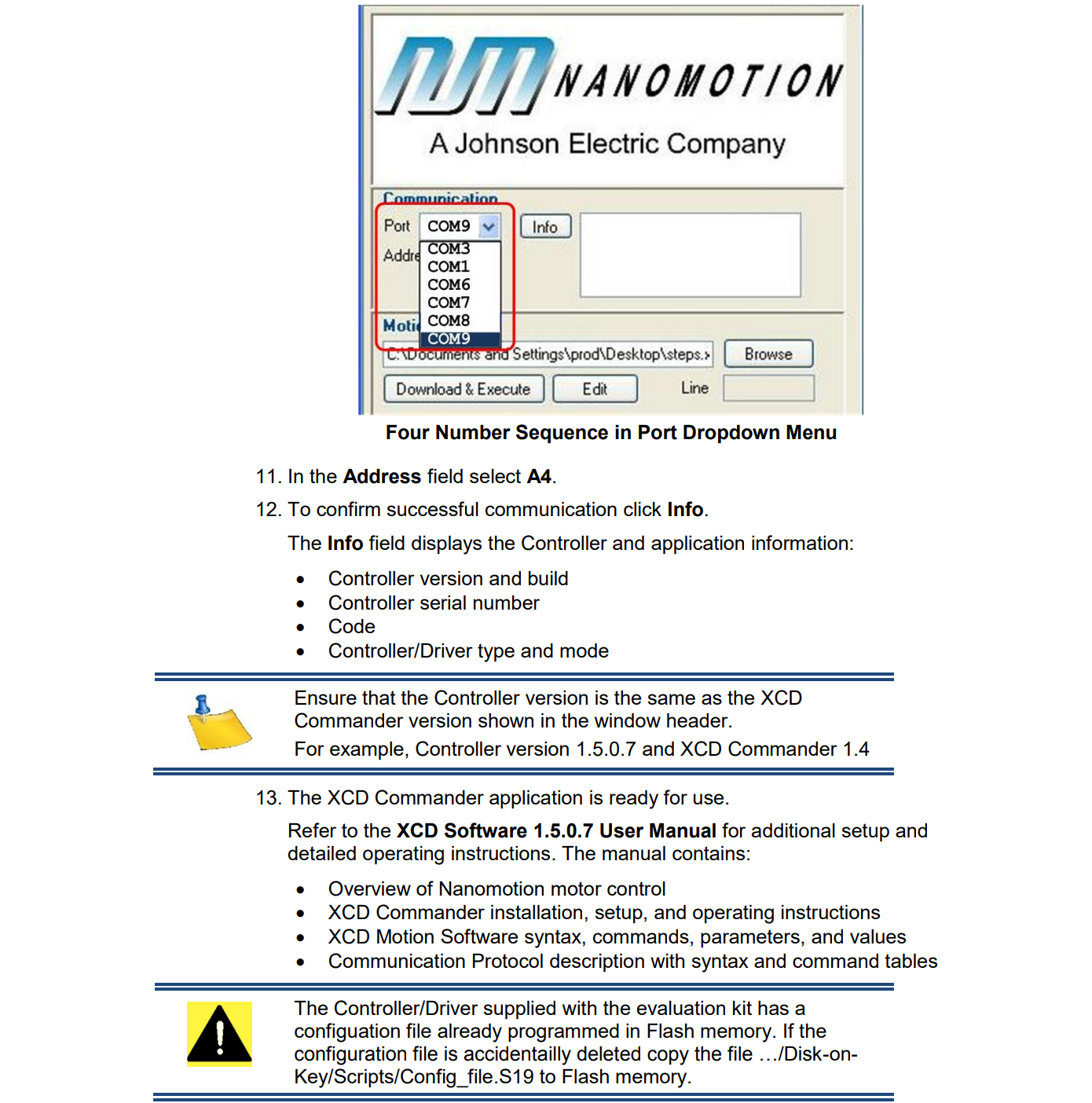

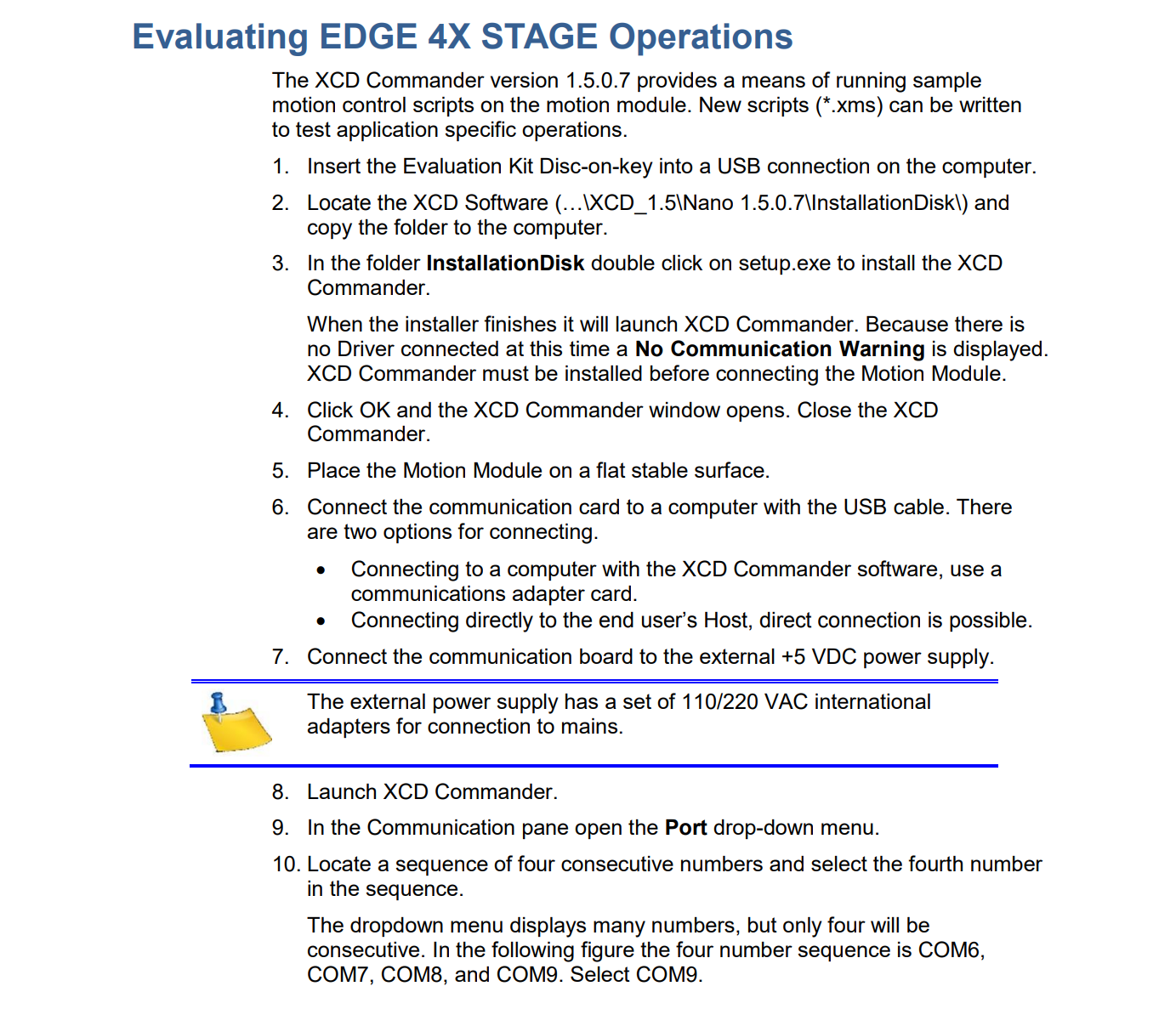

The evaluation kit includes the Nanomotion XCD Commander for communication with the Controller/Driver. The user can operate the stage in open loop using the XCD Commander, or write programs in the Nanomotion XMS script for operation in closed loop.
