FAULHABER: Linear DC-Servomotors LM1483-080-12
FAULHABER: Linear DC-Servomotors LM1483-080-12



Faulhaber
833-9MOTIONinquiry@e-motionsupply.com.
Price : $1,525.00


Availability: Lead Time is 20 Business Days
Order #: LM1483-080-12
Qty:

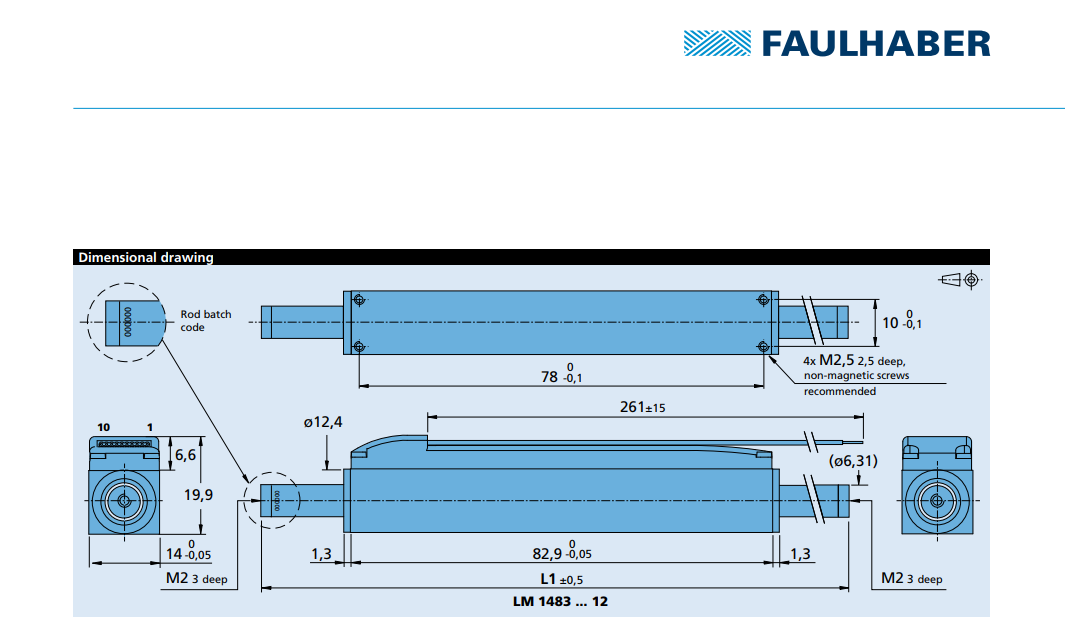

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER: Quickshaft® Linear DC-Servomotors LM1483-080-12

QUICKSHAFT® Linear DC-Servomotors bring linear motion to new dimensions. These high performance, miniature, linear motors consist of a solid stator housing and coil assembly and a multi-pole magnetic force rod.

High power magnets help the motor achieve its excellent force and dynamic speed performance.

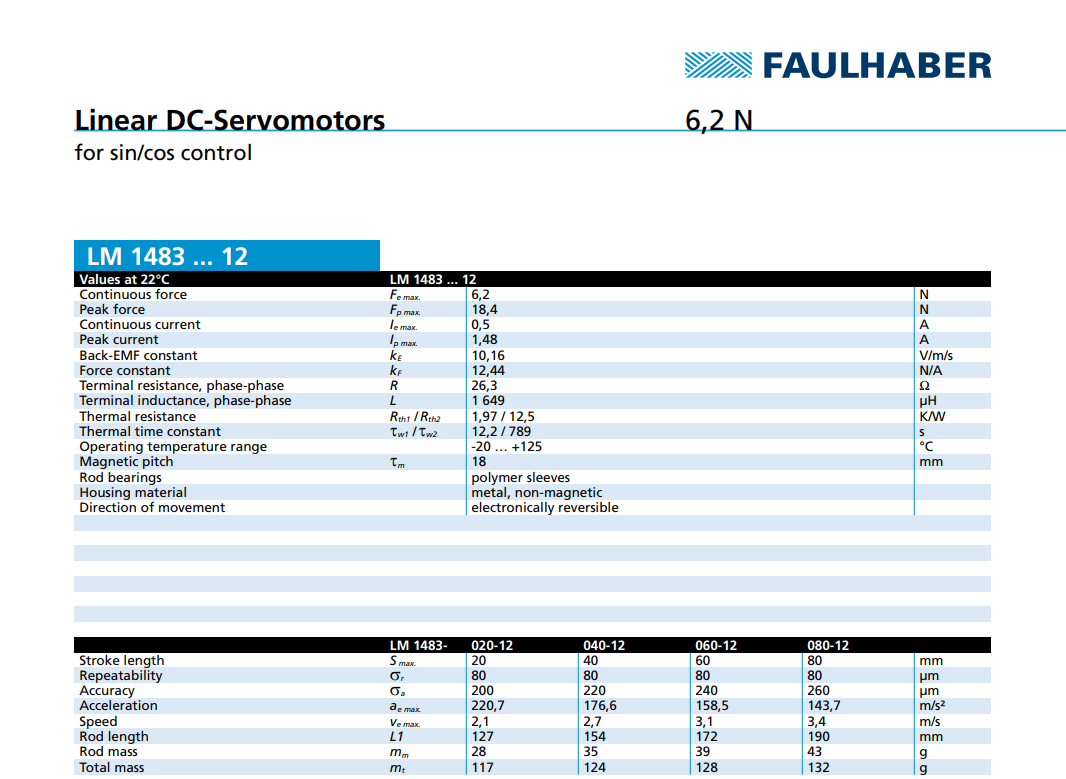

Specifications:

  • Continuous Force (N): 6.2

  • Peak Force (N): 18.4

  • Stroke Length (mm): 20 ... 80

  • Repeatability (µm): 80

  • Maximum Precision (µm): 260

  • Maximum Speed (m/s): 3.4

Model No.: LM 1483-020-12, LM 1483-040-12, LM 1483-060-12, LM 1483-080-12
