FAULHABER: Stepper Motors (DM0620 Series)
FAULHABER: Stepper Motors (DM0620 Series)



Alternate View
FAHLHABER
Price : $299.00


Availability: Lead time is 12-16 weeks
Order #: DM0620


Model Number/Code:

Qty:

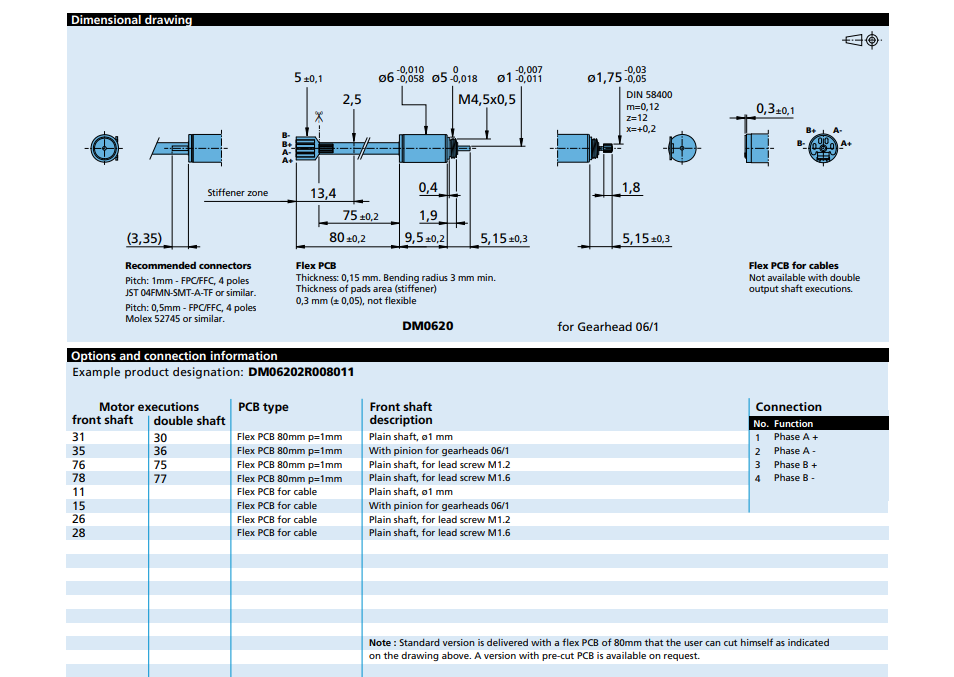

Description Specifications and Drawings


FAULHABER: Stepper Motors (DM0620 Series)

Two phase, 20 steps per revolution (Diameter 6 mm, Length 9.5 mm)

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

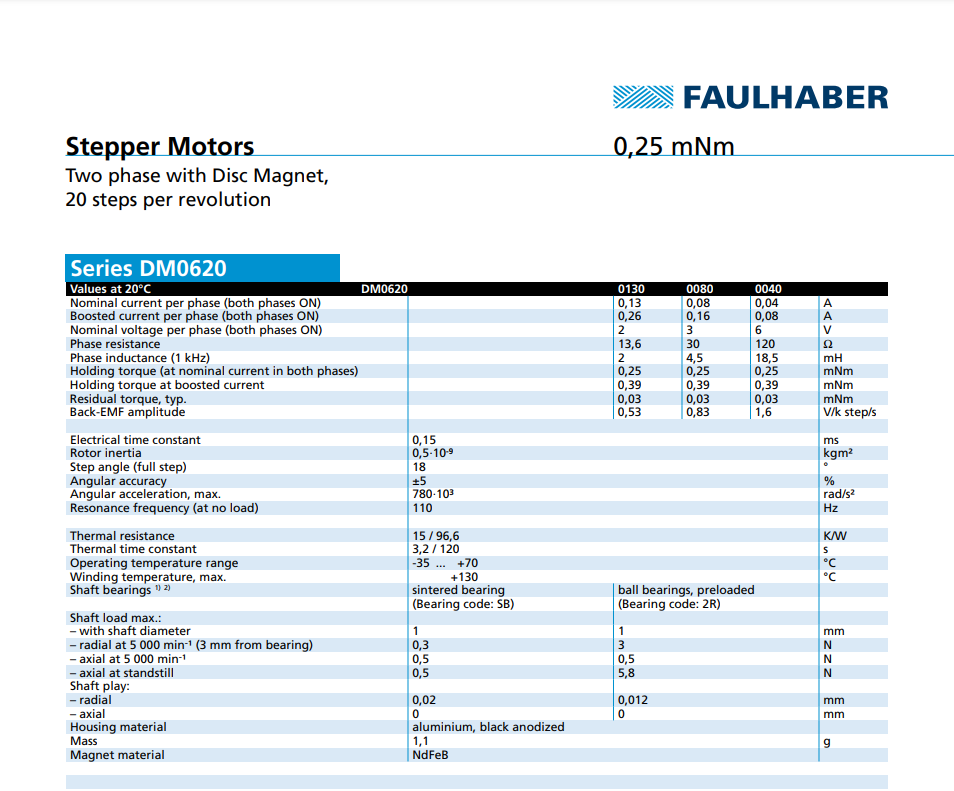

Specifications

  • Diameter (mm): 6

  • Length (mm): 9.5

  • Holding Torque - MH2 Phase (mNm): 0.39

  • Torque – Me max. (mNm): 0.25

  • Step Angle (Full Step): 18



Model No.: DM0620SB013031, DM0620SB004031, DM0620SB008031
