Faulhaber: Motion Controller MCDC3006SRS
Faulhaber: Motion Controller MCDC3006SRS



Alternate View
Price : $1,395.20


Availability: Lead time is 4-6 weeks.
Order #: MCDC3006SRS
Qty:

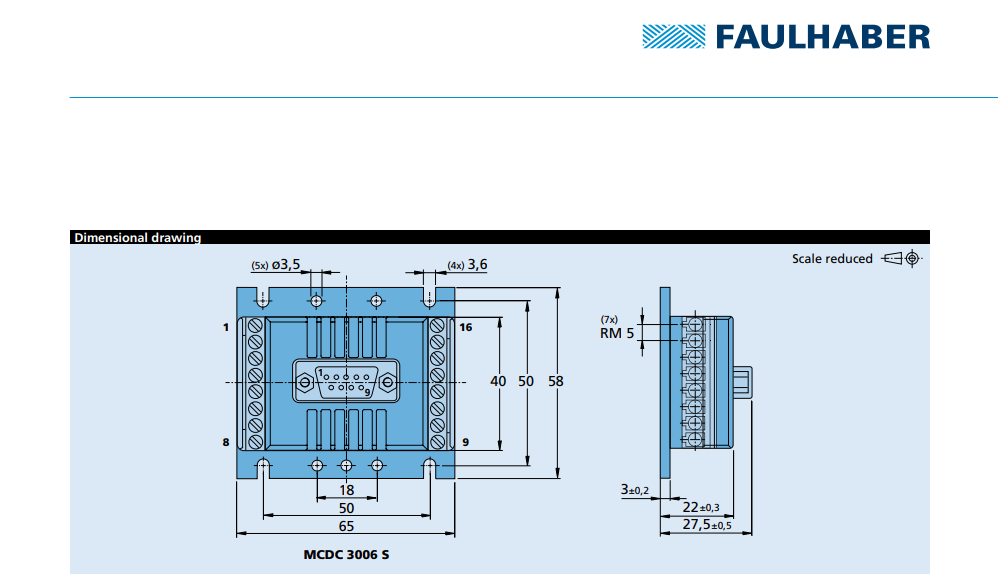

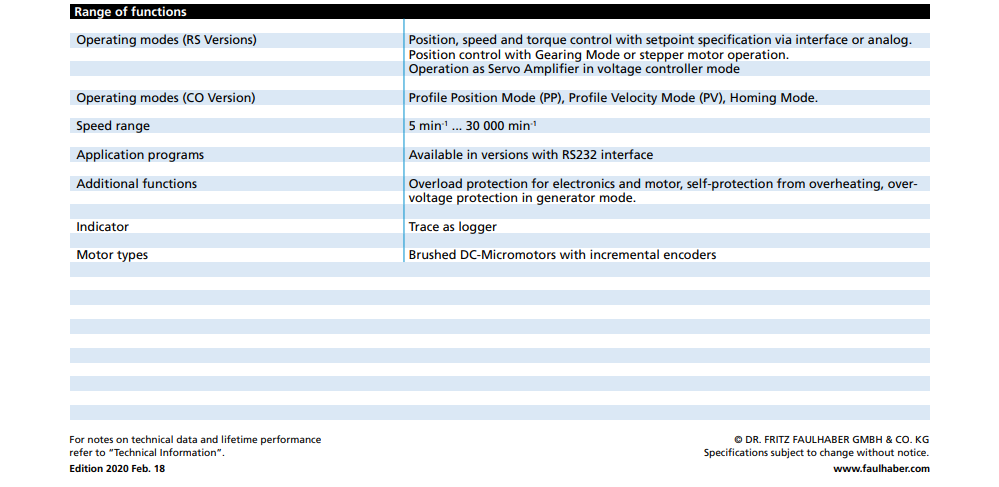

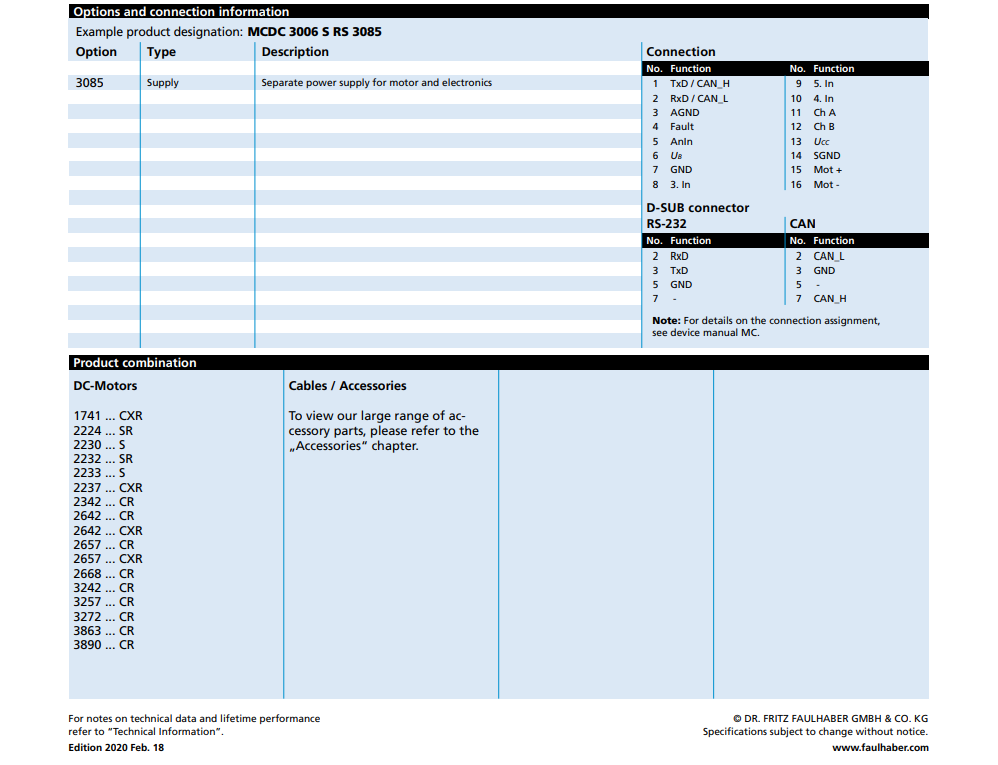

Description Specifications and Drawings


Faulhaber: Motion Controller MCDC3006SRS

V2.5, 4-Quadrant PWM with RS232 or CAN interface

FAULHABER Motion Controllers are easy to use single axis positioning controllers tailor made for the control of FAULHABER DC, Brushless, and linear motors.

For high resolution dynamic positioning applications, or high precision speed control applications they are available with serial or CAN interfaces and can be configured the free and easy to use Motion Manager software.

Features and Benefits:

  • Compact design

  • Precise position and speed control

  • Serial or CAN interfaces

  • Many standard operating modes

  • Integrated Motor Protection functions

  • Simple USB configuration

  • Easy to use software

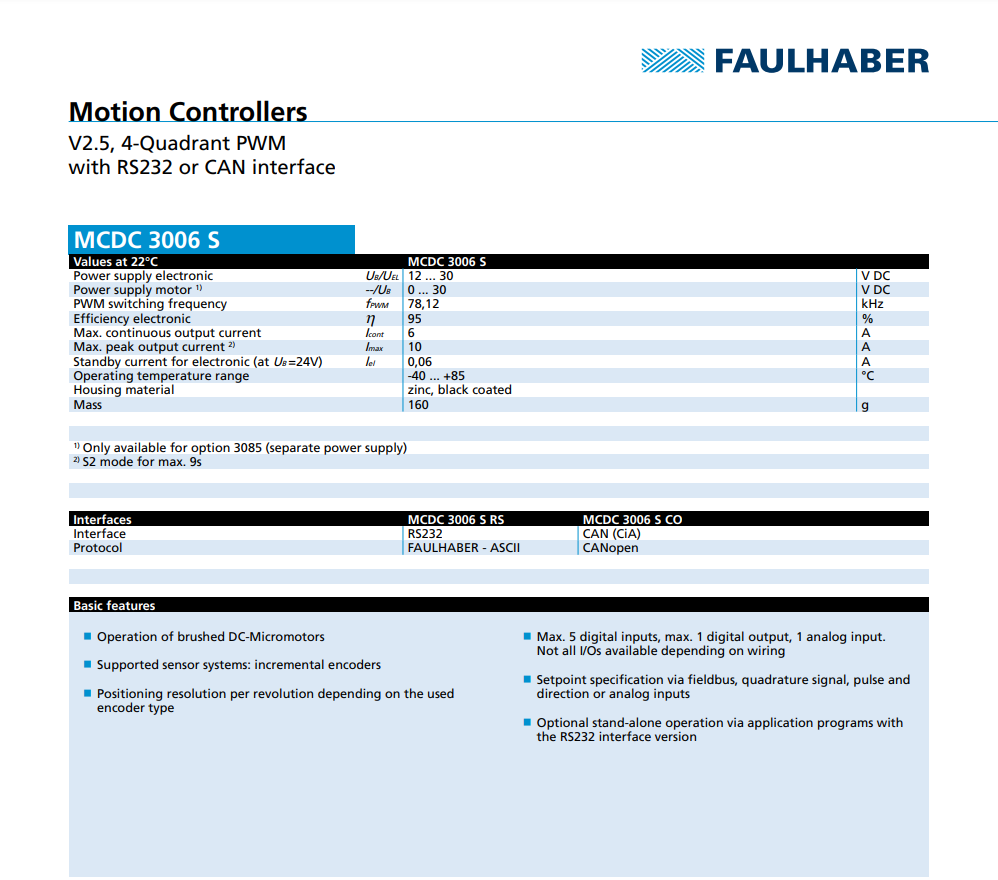

Specifications:

  • Control Type:1,2,3

  • Functionality: 4 -Q/PWM

  • Interface: RS232/CAN

  • Type of motors: DC

  • UB: 12 ... 30

  • Imax:10

Model No.: MCDC3006SRS
