Heidenhain: Output Cables (AGK Series)

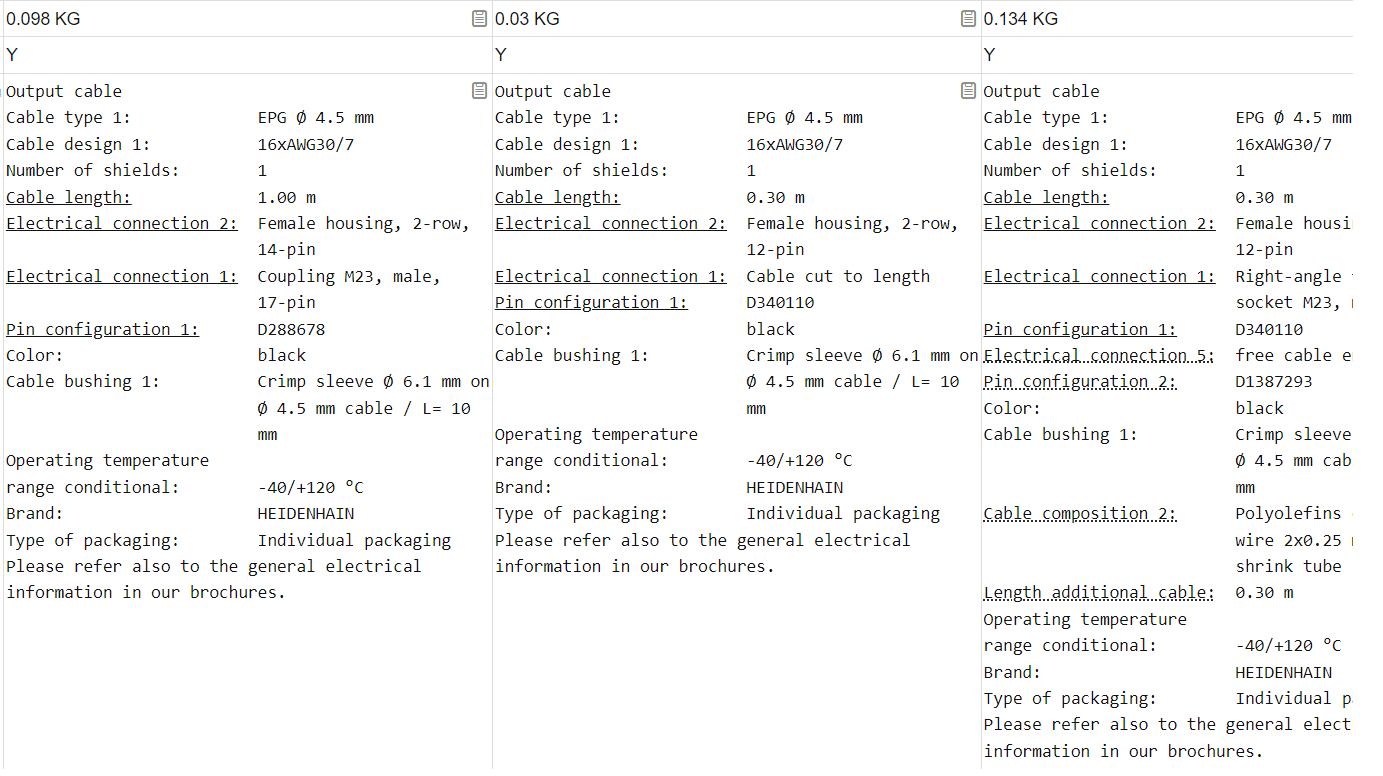

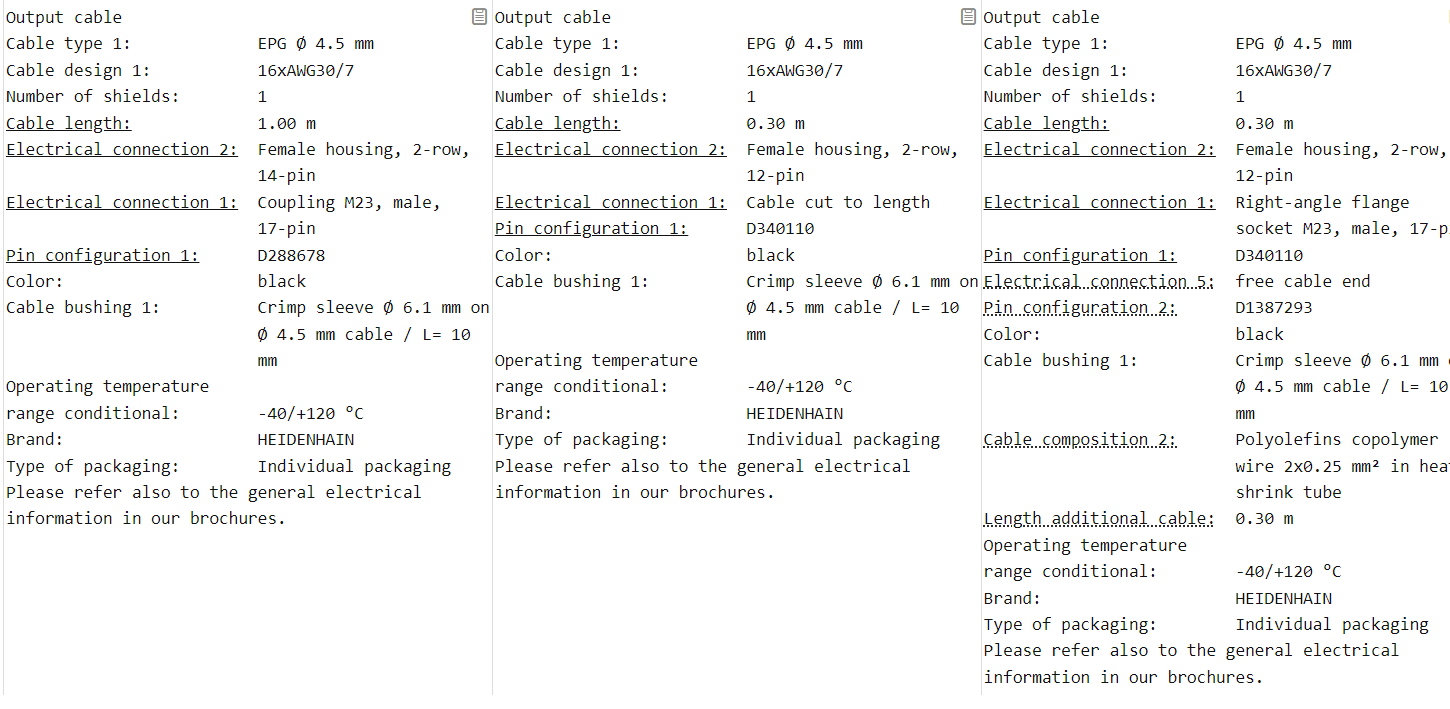

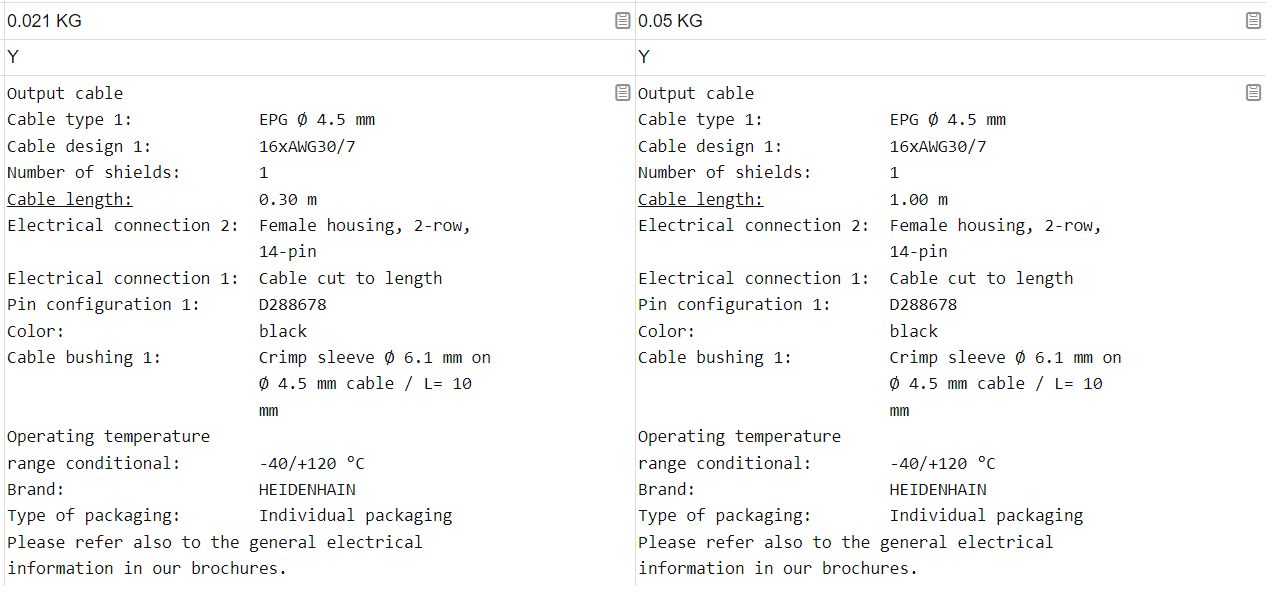

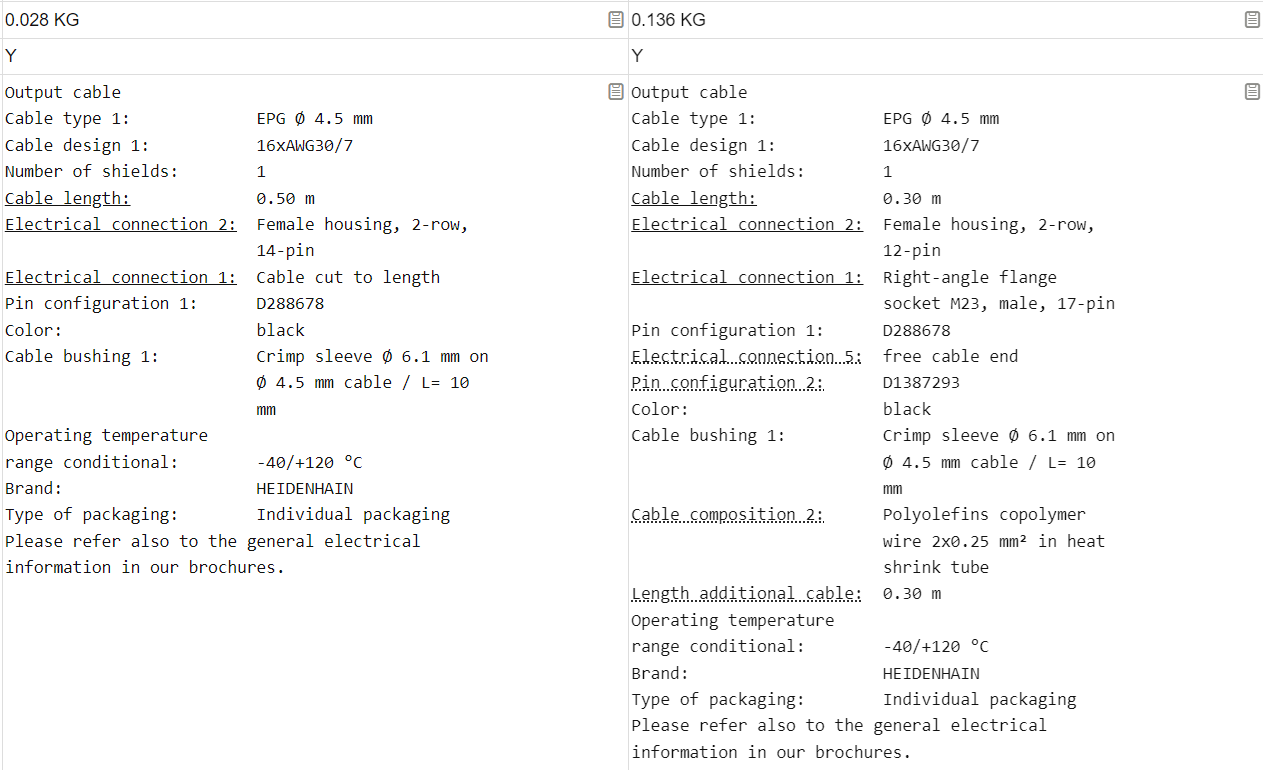

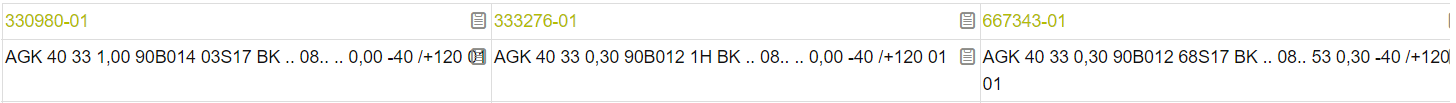

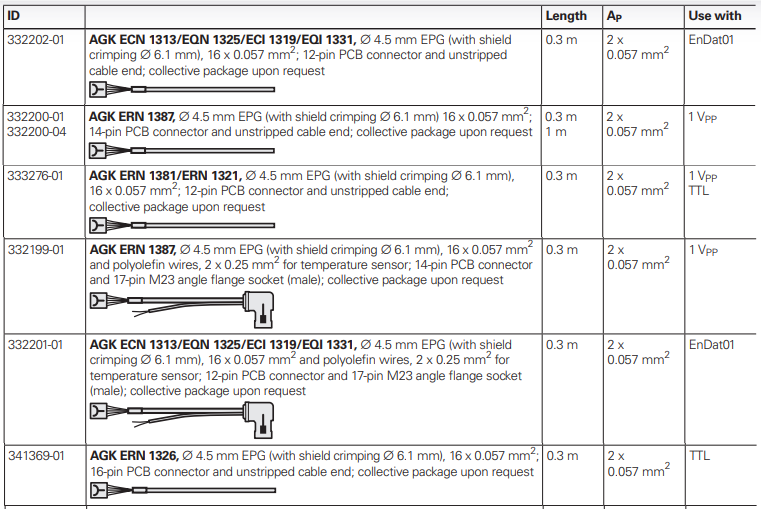

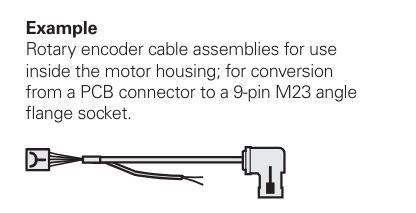

ID#: 332200-01, 332200-02, 332200-04, 332202-01, 332202-02, 333276-01, 330980-01

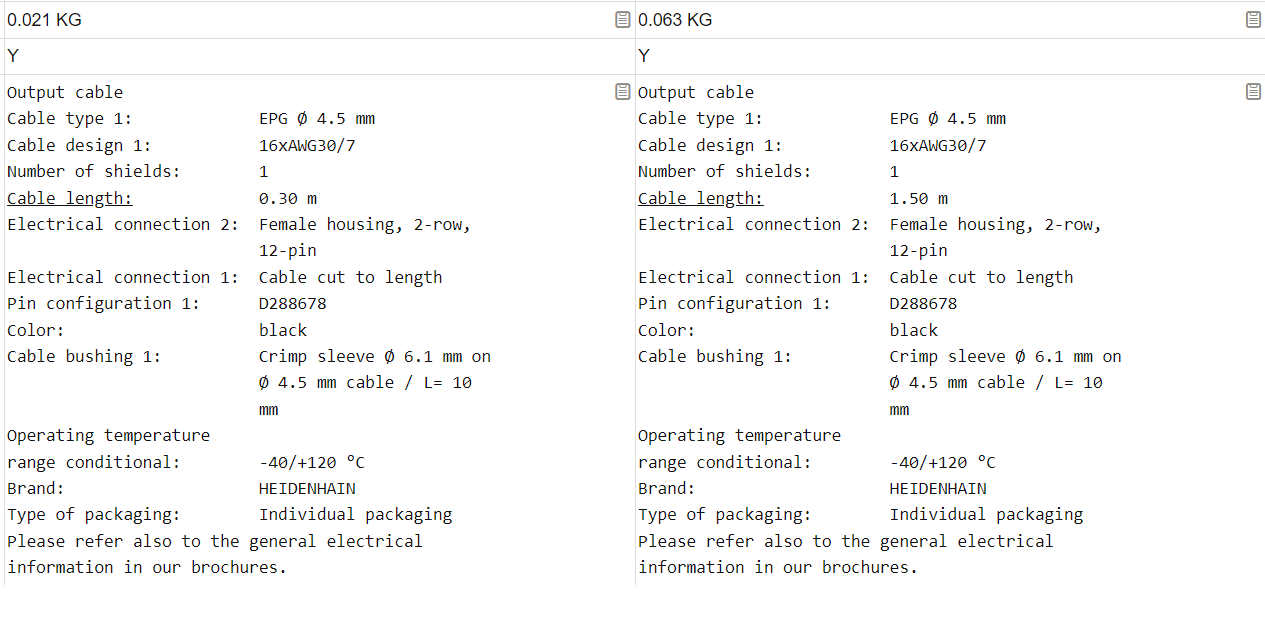

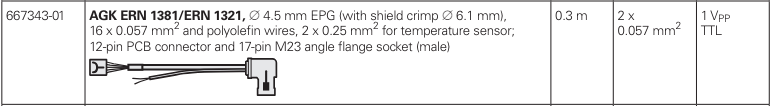

Cable type 1:             EPG Ø 4.5 mm
Cable design 1:           16xAWG30/7
Number of shields:        1
Cable length:             0.30 m
Electrical connection 2:  Female housing, 2-row,
                          12-pin
Electrical connection 1:  Right-angle flange
                          socket M23, male, 17-pin
Pin configuration 1:      D288678
Electrical connection 5:  free cable end
Pin configuration 2:      D1387293
Color:                    black
Cable bushing 1:          Crimp sleeve Ø 6.1 mm on
                          Ø 4.5 mm cable / L= 10
                          mm
Cable composition 2:      Polyolefins copolymer
                          wire 2x0.25 mm² in heat
                          shrink tube
Length of additional
cable:                    0.30 m
Operating temperature
range conditional:        -40/+120 °C
Brand:                    HEIDENHAIN
Type of packaging:        Individual packaging

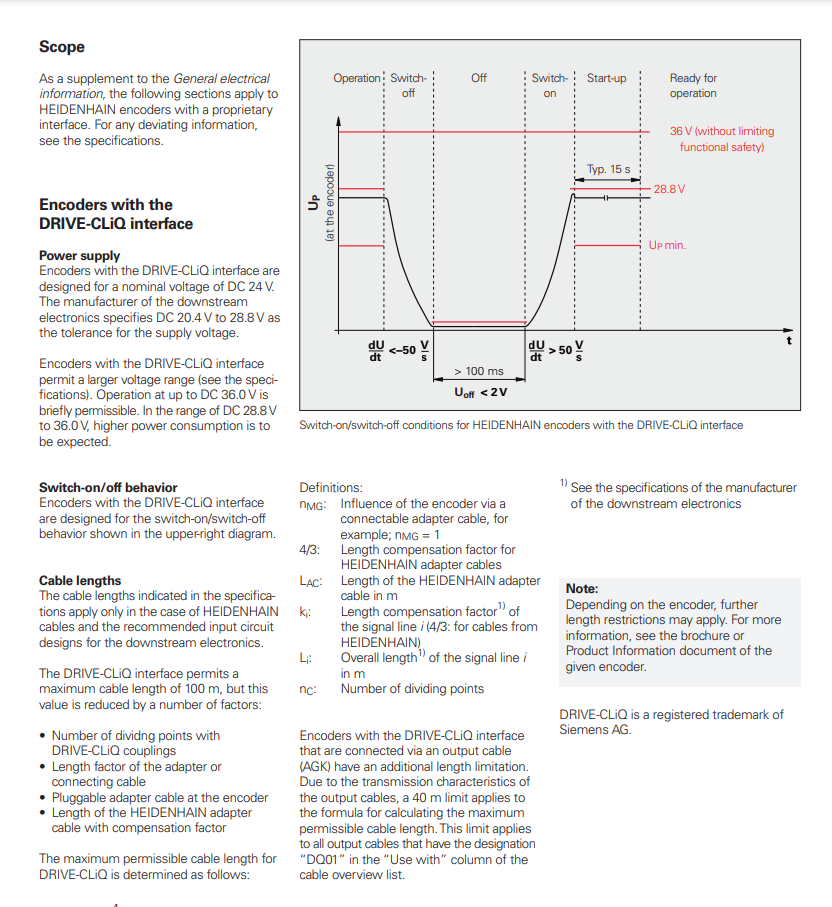

Please refer also to the general electrical
information in our brochures.

Cable type 1:             EPG Ø 4.5 mm
Cable design 1:           16xAWG30/7
Number of shields:        1
Cable length:             0.30 m
Electrical connection 2:  Female housing, 2-row,
                          12-pin
Electrical connection 1:  Right-angle flange
                          socket M23, male, 17-pin
Pin configuration 1:      D340110
Electrical connection 5:  free cable end
Pin configuration 2:      D1387293
Color:                    black
Cable bushing 1:          Crimp sleeve Ø 6.1 mm on
                          Ø 4.5 mm cable / L= 10
                          mm
Cable composition 2:      Polyolefins copolymer
                          wire 2x0.25 mm² in heat
                          shrink tube
Length of additional
cable:                    0.30 m
Operating temperature
range conditional:        -40/+120 °C
Brand:                    HEIDENHAIN
Type of packaging:        Individual packaging
Please refer also to the general electrical
information in our brochures.

Cable type 1:             EPG Ø 4.5 mm
Cable design 1:           16xAWG30/7
Number of shields:        1
Cable length:             1.00 m
Electrical connection 2:  Female housing, 2-row,
                          14-pin
Electrical connection 1:  Coupling M23, male,
                          17-pin
Pin configuration 1:      D288678
Color:                    black
Cable bushing 1:          Crimp sleeve Ø 6.1 mm on
                          Ø 4.5 mm cable / L= 10
                          mm
Operating temperature
range conditional:        -40/+120 °C
Brand:                    HEIDENHAIN
