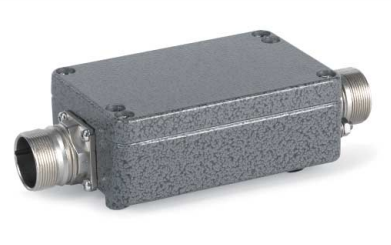

Heidenhain: Interface Electronics Signal Converters IBV 101 (ID: 536398-01)
Heidenhain: Interface Electronics Signal Converters IBV 101 (ID: 536398-01)



Heidenhain
Price : $1,028.00

Quantity in Stock:2

Availability: 1-2 business days
Order #: 539398-01
.

Description Specifications and Drawings


Heidenhain: Interface Electronics Signal Converters IBV101 (ID: 536398-01)

Interpolation and digitizing electronics for encoders with 1 Vpp signals

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


Interpolation and digitizing electronics:

  • Input Signals: 1 VPP

  • Output Signals: TTL (Clocked)


Model No.: IBV 101, IBV 102

ID536398-01
Part NameIBV 101
Description
Interpolation and digitizing electronics for
encoders with 1 Vpp signals
Input signal:            sinusoidal voltage
                         signals (1 Vpp)
Electrical connection:   Flange socket M23,
                         female, 12-pin
Output signal:           Square-wave signals, TTL
                         levels with 10-fold
                         interpolation
Electrical connection 2: Flange socket M23, male,
                         12-pin
Max. scanning frequency: 200.00 kHz
Reference mark:          90°
Fault detection signal:  for disturbance LOW
Reversal hysteresis:     without
Power supply:            5 V (+-5 %)
Pin configuration:       D294999
Pin configuration 2:     D294999
Degree of protection:    IP65 (EN60529)
Operating temperature:   0/+70 °C
Special characteristics,
IBV/EXE/IDP:             none
Additional information

This product contains an SVHC as defined by the REACH Regulation. For more information, visit: www.heidenhain.com/infobase
