Acu-Rite Solutions: IBT 400+ Interface Box for Six encoder Inputs #1345048-02

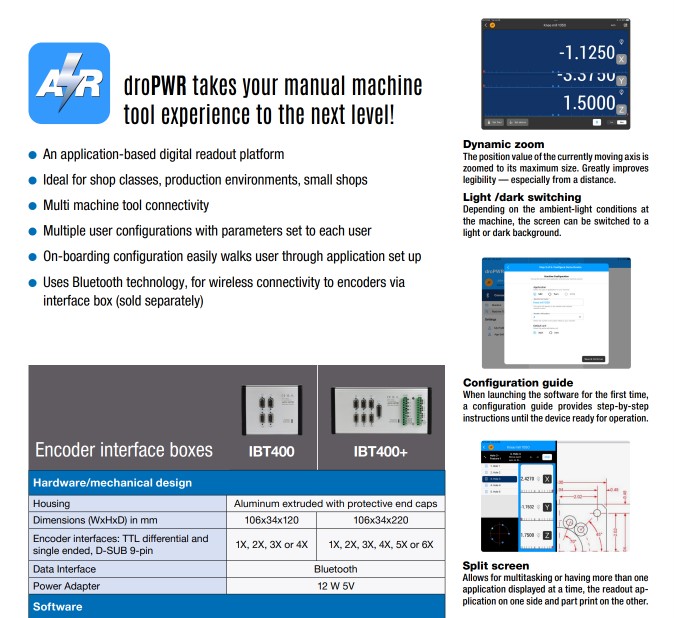

Acu-Rite droPWR Encoder Interface Box, IBT400+, 1-6 Axes, Bluetooth
.

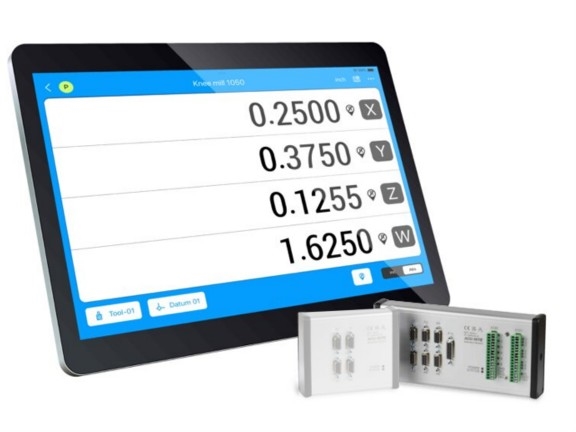

The Acu-Rite droPWR Encoder Interface Box (1345048-02) is a Bluetooth interface unit that converts a tablet into a wireless Digital Readout (DRO). The Acu-Rite IBT400+ is used in conjunction with an iPad equipped with the droPWR app. The IBT400 will accept 1 to 6 axis scales.

Key Features & Requirements

Wireless Connectivity: Communicates via Bluetooth to an iPad equipped with the droPWR app, eliminating the need for cables between the tablet and the machine tool.

Multi-Machine Configuration: Capable of handling up to 6 axes, allowing operators to manage different machines on a single tablet.

Scalable Use: Ideal for shop classes, production environments, and small machine shops.

IBT 400+ (1345048-02)

Interface box for six encoder inputs, probe
input, switching functions and analog output with
Bluetooth interface
Number of switching inputs: 6
Number of switching outputs:10
Number of analogue outputs: 1 (0 ... 10 V)
Number of encoder inputs:   6x
Encoder interface:
Encoder connection:         Built-in D-sub
                            connector without
                            housing, 2-row,
                            female, 9-pin
Max. switch voltage (input):24 V DC
Output circuit:             Floating relay
                            contacts
Max. switch voltage
(output):                   30 V AC/DC
Max. switching current (per
output):                    0.5 A
Operating temperature:      0/+45 °C
Fastening type:             DIN rail mount
