Heidenhain: Adapter Cable for Different Connector Connection (ID: 816675-04)
Heidenhain: Adapter Cable for Different Connector Connection (ID: 816675-04) ​

Heidenhain

833-9MOTION [email protected].
Price : $178.00


Availability: 14 weeks
Order #: 816675-04
Qty:


Description Specifications and Drawings

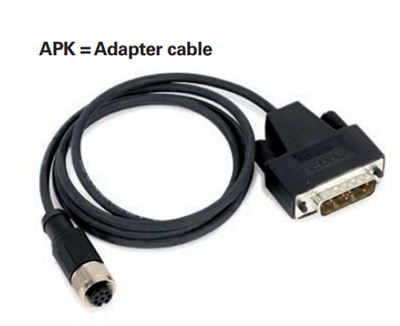

Heidenhain: Adapter Cable for Different Connector Connection (ID: 816675-04)

ID 816675-04
Part Name
APK 2D A8 4.00 0SB014 1SS008-TV BK .. 01 1 .. 0.00
Description
Adapter cable
for different connector connection
Cable type:             PUR with armor Ø 11.1 mm
Cable design:           2x2x0.17 mm²+1x2x0.24 mm²
Cable length:           4.00 m
Encoder side:           Coupling M12 (armored),
                        14-pin
Side of subsequent
electronic:             Coupling M12, male, 8-pin
