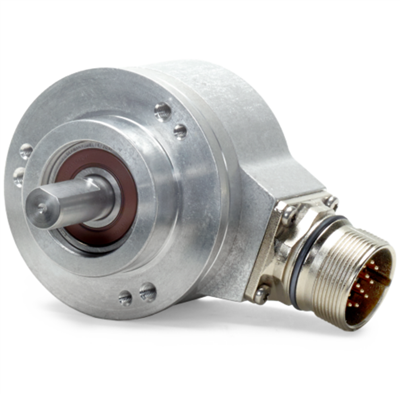

Absolute rotary encoder (multiturn) with integral
bearing for separate shaft coupling
Differentiable
revolutions:            4096
Positions per
revolution:             8192
Data interface:         SSI41r1
Output code:            Gray
Line count:             512
Output signal:          ~1Vpp
Cutoff frequency (-3
dB):                    130.00 kHz

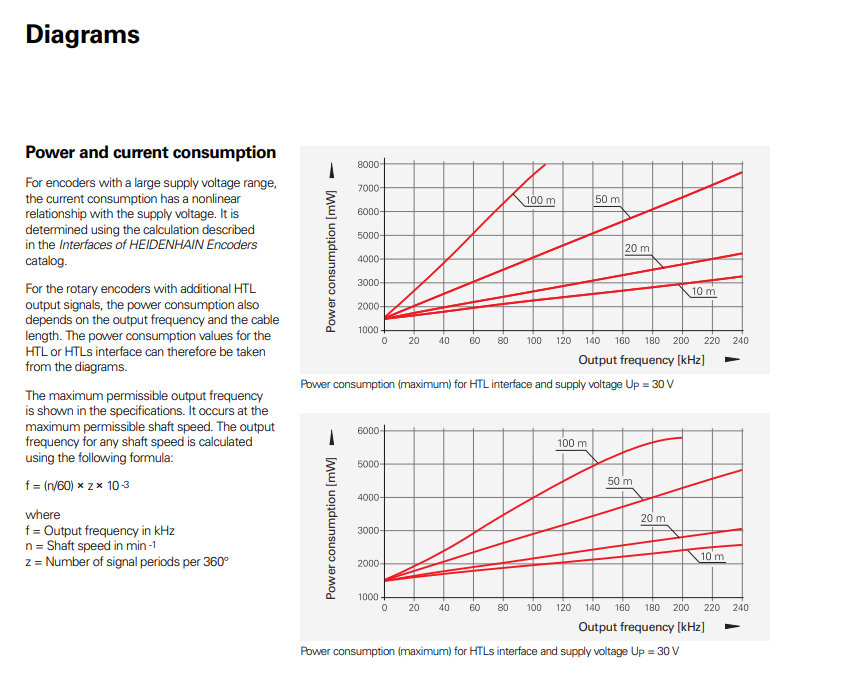

Power supply:           4.75 V ... 30 V

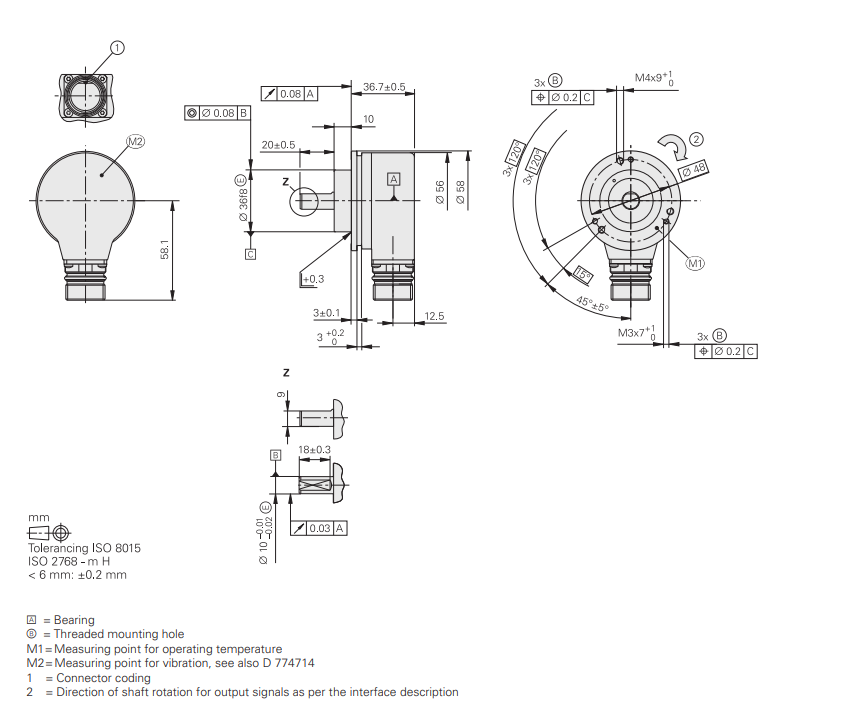

Flange version:         Synchro flange Ø 58 mm,
                        centering collar 50 mm,
                        bolt circle Ø 42 mm, 3 x
                        M4
Type of Flange:         01C
Shaft:                  Solid shaft, diameter 6
                        mm, length 9.5 mm
Type of Shaft:          73A
Protection rating:      IP64 (EN60529)
Operating temperature:  -40/+100 °C
Electrical connection:  Flange socket M23, male,
                        17-pin

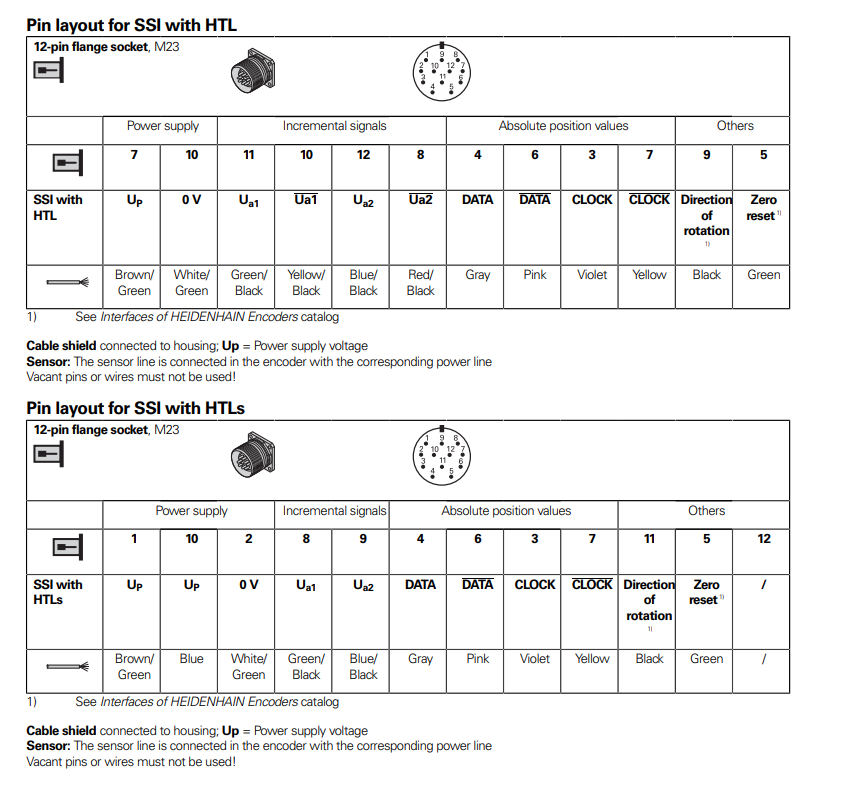

Pin configuration:      D533688
Connecting direction:   radial
Please pay attention to the product documentation!
