Delta: AC Servo Drives ASD-B2-0121-B
Delta: AC Servo Drives ASD-B2-0121-B



Alternate View


DELTA: AC Servo Motors ECMA-C20401RS

833-9MOTION inquiry@e-motionsupply.com.
Price : $556.00


Availability: Subject to availability
Order #: ASD-B2-0121-B
Qty:

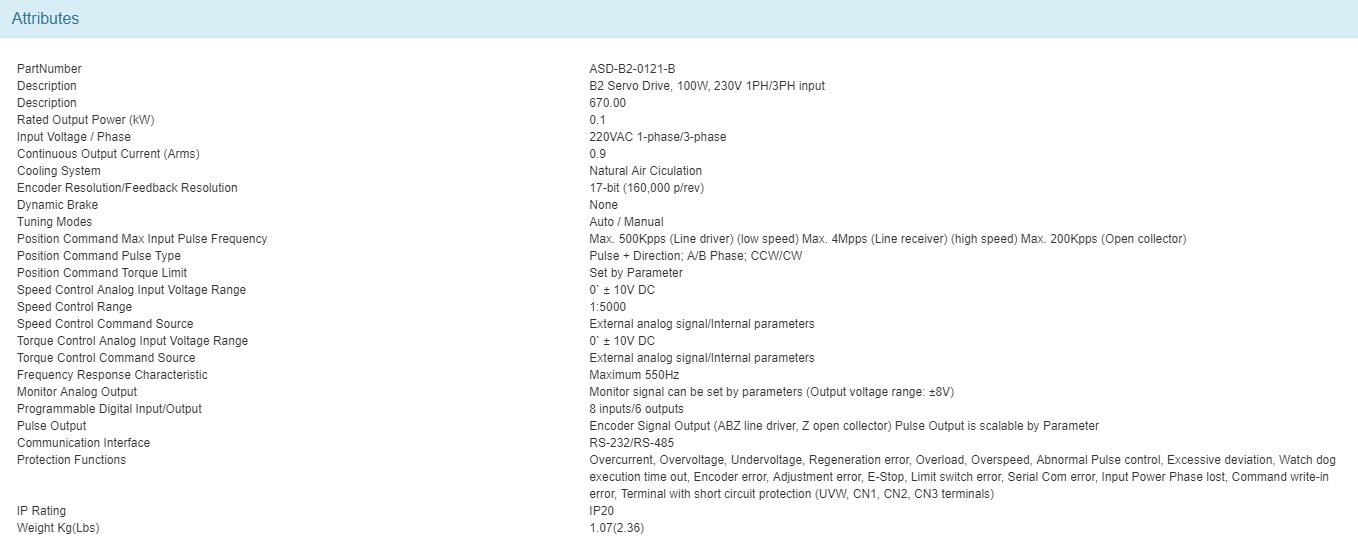

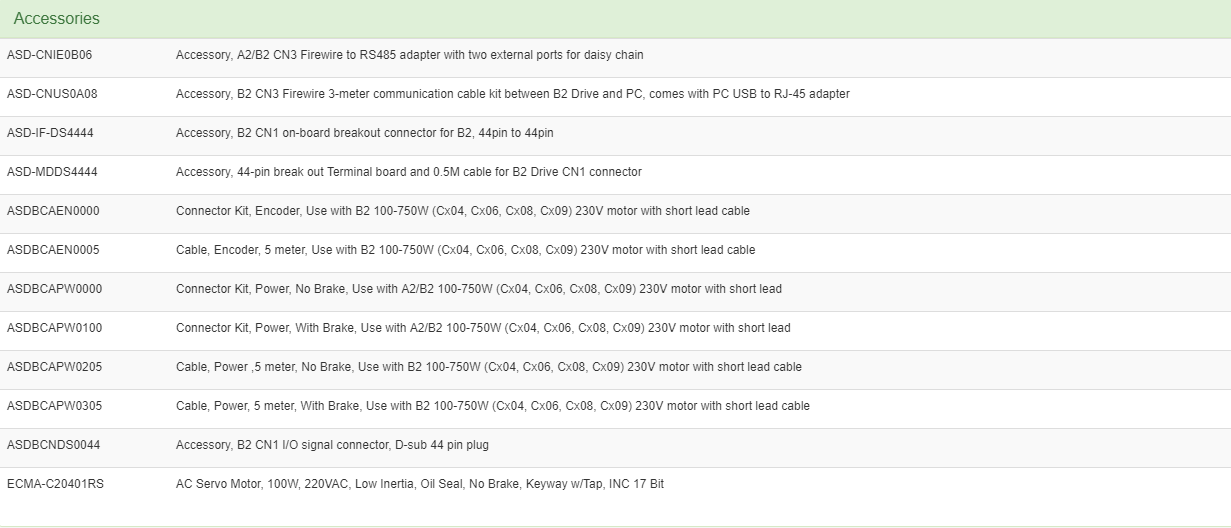

Description Ordering Information Specifications and Drawings


Delta: AC Servo Motors and Drives (ASDA-B2 Series)

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.

The power rating of the ASDA-B2 series is offered from 0.1kW to 3kW. The superior properties of this series emphasize on "built-in generic functions for general-purpose applications" and "avoiding variable costs from mechatronics integration." When Delta's ASDA-B2 series is in use, the users can conveniently complete assembly, wiring and operation setups. In addition, in switching from other brands to Delta's ASDA-B2 series, outstanding quality and features, and complete product lineup make the replacement is easy and quick to achieve. Using Delta ASDA-B2 series, not only the wiring and operation becomes much easier, and the requirements of general-purpose machine tools for the market could be satisfied as well. Moreover, the customized solutions are available on request for different industries so that make ASDA-B2 series be widely popular and always in demand by the customers in the field of industrial automation.

Features:

High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

Satisfy High Precision Positioning Requirements

· Support pulse input (up to 4Mbps) and analog voltage two kinds of command.

· Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).

· There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

· Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.

· ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

· Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.

· Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

Reduce Maintenance and Wiring Cost for Versatile Operation

· Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

· The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.

· 400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.

· Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.

Supporting Links:

1) Delta ASDA-B2 Series Catalog

2) Delta ASDA-B2 Series User Manual

Support Links
  • B2 Servo Drive, 100W, 230V 1PH/3PH input
