Delta: AS Accessories - AS Series Programmable Logic Controller Accessories
Delta: AS Accessories - AS Series Programmable Logic Controller Accessories



Alternate View


Price : $20.00

Price with Selected Options: $20.00


Availability: Subject to availability
Order #: AS-UB-UC


Model Number/Code*:


Qty:
Description Ordering Information Specifications and Drawings


Delta: AS Accessories - AS Series Programmable Logic Controller Accessories


AS02LC-A

AS Series Load Cell Module - 2 Channels, 24 bit resolution, 4/6 wire, active filtering

AS04AD-A

AS Series IO Module - 4 Analog Inputs (16 bit)

AS04DA-A

AS Series IO Module - 4 Analog Outputs (12 bit)

AS04RTD-A

AS Series Temp Module - 4 RTD Input (PT, NI temperature sensors)

AS04TC-A

AS Series Temp Module - 4 TC Input (J, K, R, S, T, E, N, B), ±100mV

AS06XA-A

AS Series IO Module - 4 Analog In (16 bit), 2 Analog Out (12 bit)

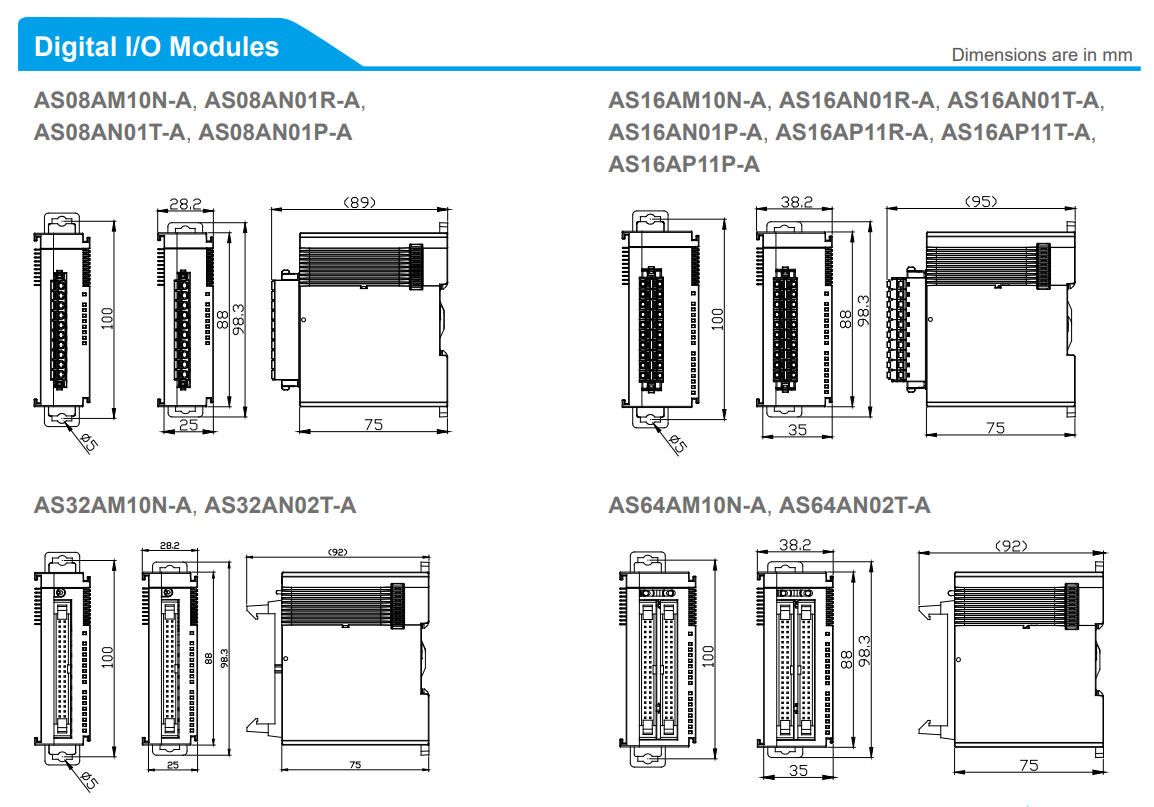

AS08AM10N-A

AS Series IO Module - 8 Digital Inputs

AS08AN01P-A

AS Series IO Module - 8 Digital PNP Sourcing Outputs

AS08AN01R-A

AS Series IO Module - 8 Digital Relay Outputs

AS08AN01T-A

AS Series IO Module - 8 Digital NPN Sinking Outputs

AS16AM10N-A

AS Series IO Module - 16 Digital Inputs

AS16AN01R-A

AS Series IO Module - 16 Digital Relay Outputs

AS16AN01T-A

AS Series IO Module - 16 Digital NPN Sinking Outputs

AS16AP11R-A

AS Series IO Module - 8 Digital Inputs, 8 Digital Relay Outputs

AS16AP11T-A

AS Series IO Module - 8 Digital Inputs, 8 NPN Sinking Outputs

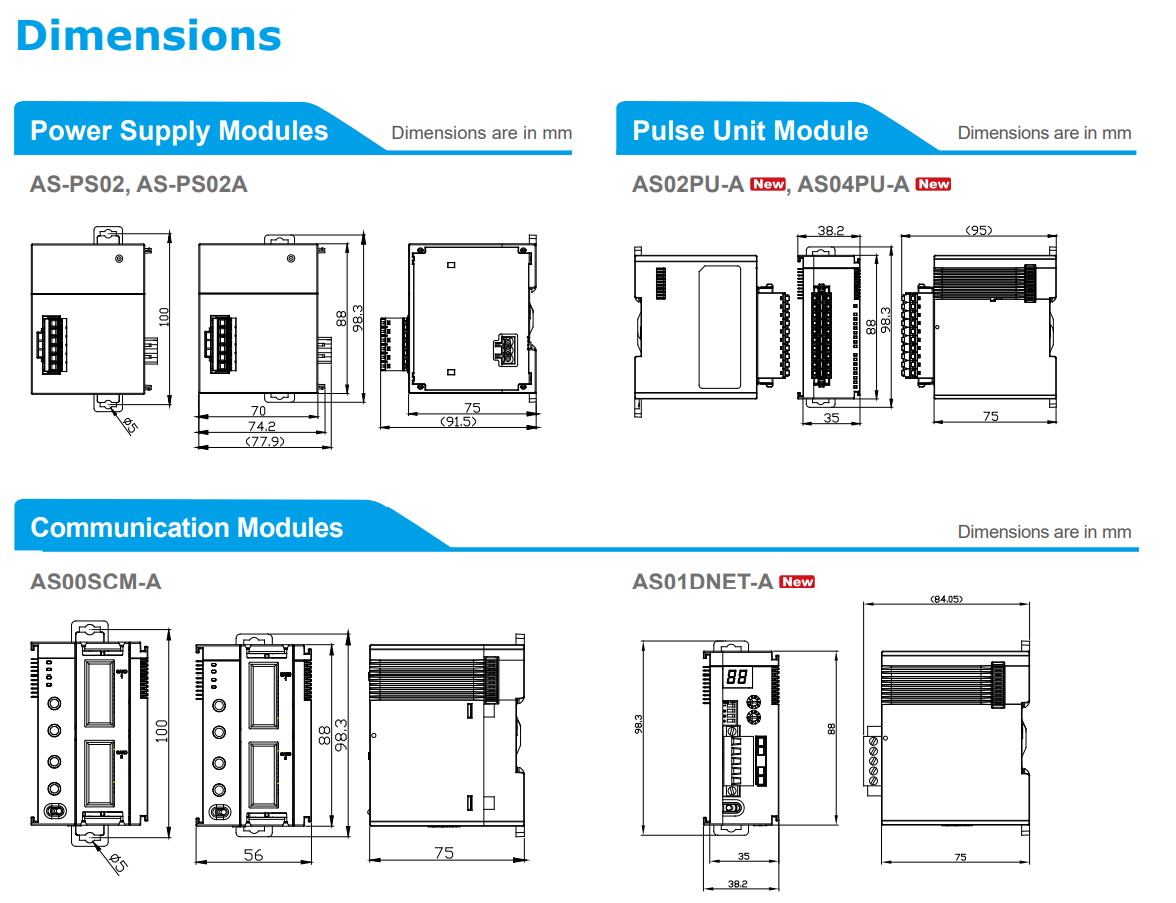

AS-PS02

AS Series Power Supply, Input: 100-240Vac -> Output: 24Vdc Power Supply, 2A (internal bus)

AS-PS02A

AS Series Power Supply, Input: 100-240Vac -> Output: 24Vdc Power Supply, 1.5A (internal bus), 0.5A (for external I/O)

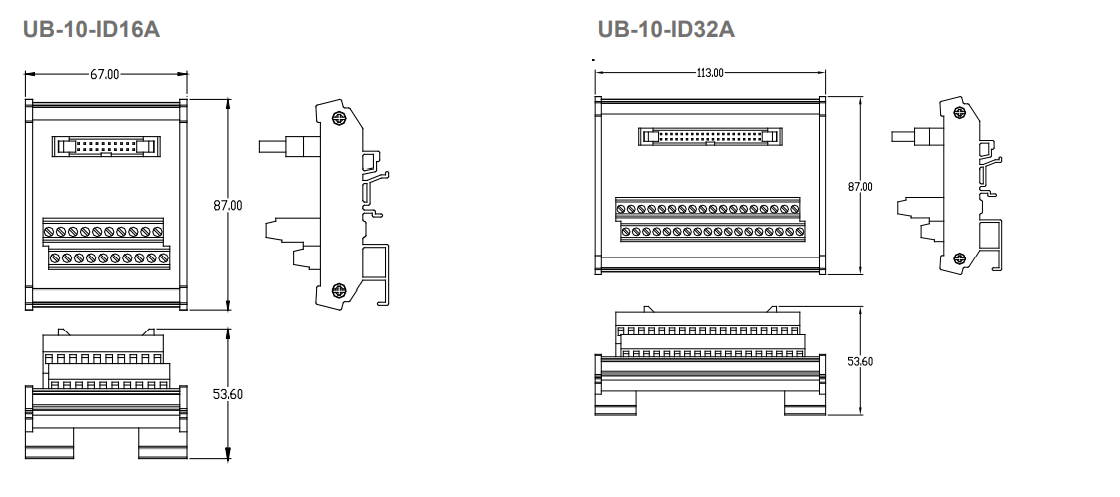

UB-10-ID16A

I/O Terminal Module - 16 Digital Input/Output Point External Terminal Module (IDC 20)

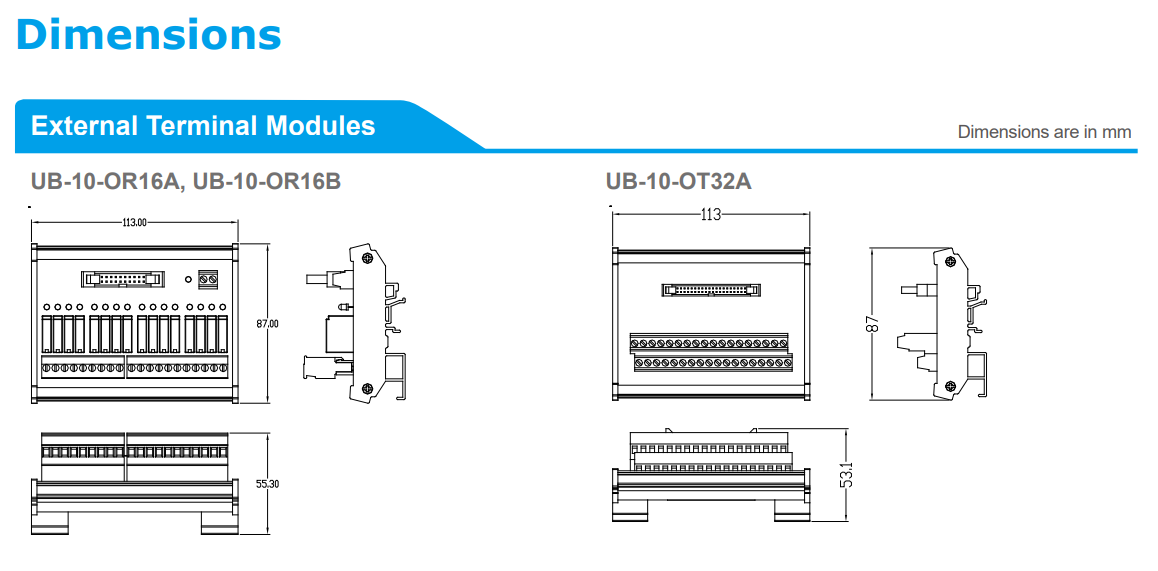

UB-10-OR16A

I/O Terminal Module - 16 Point Digital Output Module, Relay Output (For NPN Output) (IDC 20)

UC-CMC010-01A

Communication Cable - CANOpen + DMCNET Comm Cable RJ45 <--> RJ45 ( 1 m)

UC-CMC030-01A

Communication Cable - CANOpen + DMCNET Comm Cable RJ45 <--> RJ45 ( 3 m)

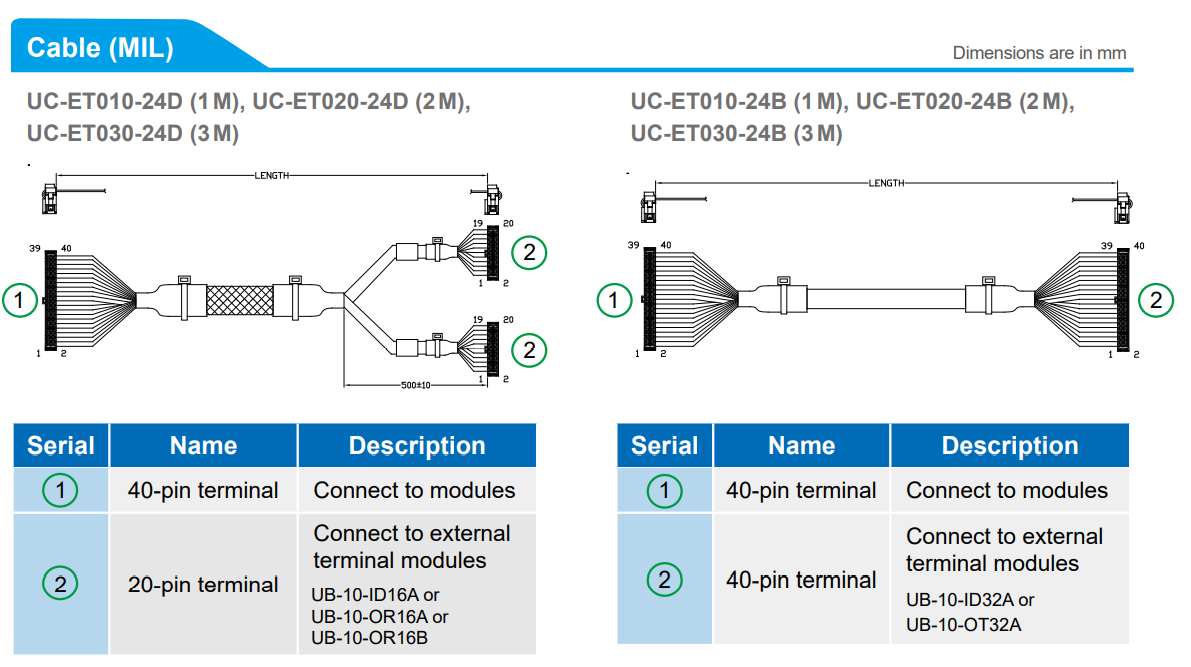

UC-ET010-24D

I/O Cable - IDC 40 <--> IDC 20x2 shielded (1m)

UC-ET020-24D

I/O Cable - IDC 40<--> IDC 20x2 Shielded (2m)

UC-ET030-24D

I/O Cable - IDC 40<--> IDC 20x2 Shielded (3m)

UC-PRG015-01A

Mini USB <--> USB (1.5M)

UC-PRG030-01A

Programming Cable - miniUSB <--> USB (3M) PLC<>PC

UC-PRG030-20A

Communication Cable - RJ45 <--> RJ45 (3m) for programming PC/HMI <> DVP-Ethernet
