CODESYS TargetVisu SL Article no. 2304000002

If the CODESYS TargetVisu component is implemented in the CODESYS Control runtime environment of an automation device, the device can display graphical user interfaces on the integrated or connected display and/or be operated via them. The development of the user interfaces takes place together with the development of the IEC 61131-3 application project directly in the CODESYS Development System.

Two licensing models are offered for the visualization extension of a controller:

CODESYS TargetVisu (Full / Embedded / Light)

Performance-related volume licensing for all the controllers of a device family by the controller supplier; for the general visualization option for the end user.

CODESYS TargetVisu SL (Full)

Hardware-based single licensing (SL) by the end user, for a device with an interface to an external display unit and full visualization preparation.

CODESYS TargetVisu (Full)

Support for all elements of the CODESYS Development System on a controller with a CODESYS Control Runtime.

CODESYS TargetVisu (Embedded)

Reduction of the range of functions of the CODESYS TargetVisu (Full), for the support of devices with no graphic library and low system resources.

CODESYS TargetVisu (Light)

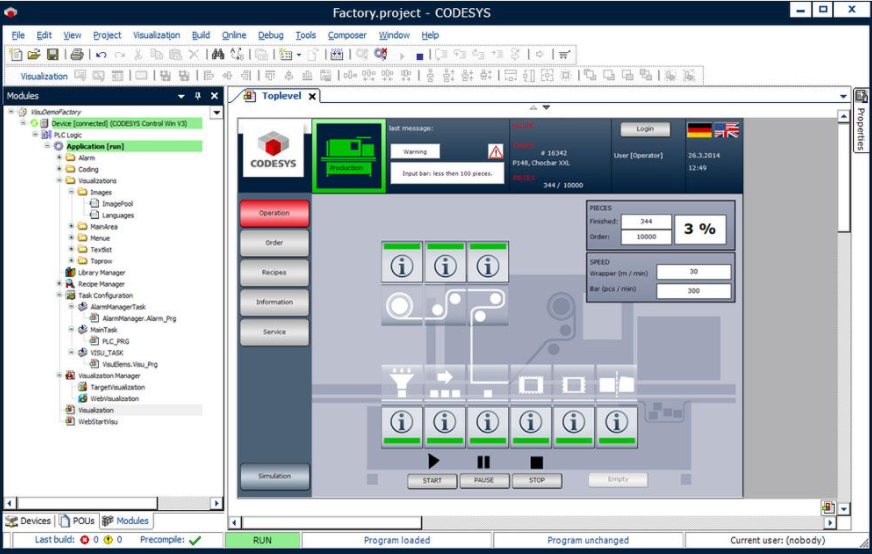

Hardware-dependent, minimum range of graphic functions of a visualization option with minimum memory requirement, for the support of the simplest devices. All options can be combined with the product CODESYS WebVisu for the display of created masks on display devices with a web browser. The project engineering of the graphical displays is done with the editor integrated in the CODESYS Development System.

Visualization management via:

Specification of the display on the target device (update rate, width and height in pixels)

Universal modification of all masks via CODESYS Visualization styles

Management of actions by assignment of hot keys or mouse events

Setting of user groups for the graphic interface
