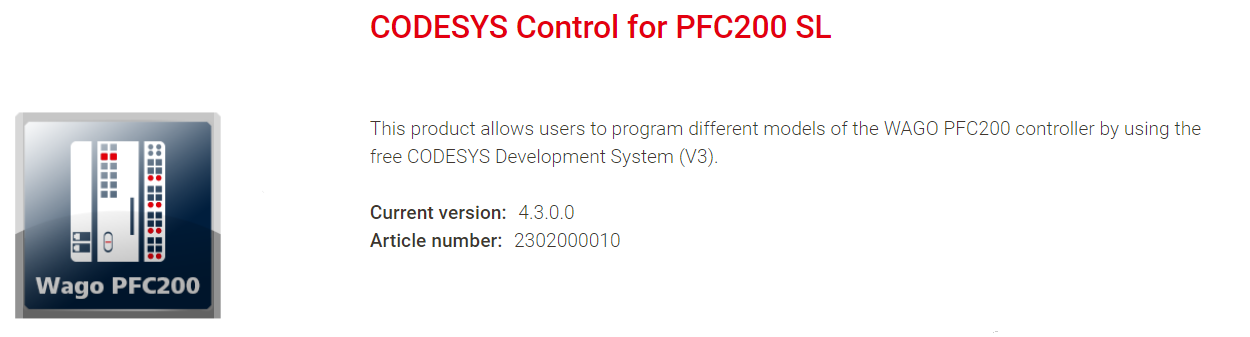

CODESYS Control for PFC200 SL Article no. 2302000010
CODESYS Control for PFC200 SL is a SoftPLC-based on CODESYS V3 for the WAGO PFC200 industrial PLC. After installation of the runtime environment, the PLC can be engineered with the CODESYS Development System (V3).

Download of the product “CODESYS Control for PFC200 SL” from the CODESYS Store (http://store.codesys.com)

Installation of CODESYS SoftPLC on a WAGO PFC200 device (http://www.wago.com)

Exchange of the WAGO PLC runtime environment (as delivered by WAGO) for a standard CODESYS V3-compatible SoftPLC.

PLC configuration with WAGO software tools

Benefits

Suitable for PLCs in the sectors of factory and process automation (with new defined PLC functional range)

Comprehensive engineering solution with the free CODESYS Development System (V3), extensible by add-ons from the CODESYS Store

Efficient engineering with the products of the CODESYS Professional Developer Edition (code management via link to Apache Subversion, static code analysis, runtime measurement on the PLC, CODESYS Test Manager for test automation, methodical application development with UML diagrams)

Same performance and cycle times of the fieldbus tasks as for the OEM product, for example when using local I/O modules

Detailed information can be found in the CODESYS Online Help.

Interfaces

CODESYS OPC UA Server, as full version for data exchange.

Support of all popular digital and analog input and output modules from WAGO (download list from CODESYS Store)

Visualization

CODESYS WebVisu, is included as full version in the delivery of the runtime package.

Fieldbus support

With the delivery of the Runtime Package the following fieldbuses are supported:

CODESYS CANopen Manager / Device (except 750-8202 / -8212)

CODESYS EtherCAT Master

CODESYS EtherNet/IP Scanner / Adapter

CODESYS J1939

CODESYS Modbus TCP Master / Slave

CODESYS Modbus Serial Master / Slave (only 750-8202 / -8212)

CODESYS PROFINET Controller / Device

Product options

Further products can be licensed for a fee:

CODESYS KNX SL

CODESYS Redundancy SL
