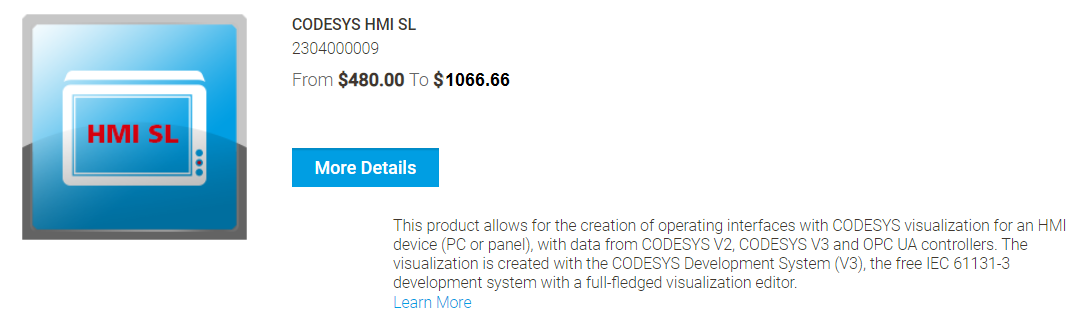

CODESYS HMI SL Article no. 2304000009

CODESYS HMI SL is a software package that is installed on a remote computer to equip it with a graphical user interface (HMI). This new HMI support allows it to combine and visualize the data of one or more CODESYS V2 and CODESYS V3 controllers (data sources) on one remote HMI device. Since CODESYS V3.5 SP17 controllers with an OPC UA Server can also be visualized. A new datasource with OPC UA Client functionality is provided. The HMI SL can also be operated in conjunction with redundancy. An additional redudancy license is required for this.

Benefits

Integrated into the CODESYS Development System – for development of the remote HMI

Development in one project, either independently or with the PLC application

Scalable projects by unlocking any number of available data points

Simplified creation of the application by guided project configuration

Automated display of all available data in the controller network

Display of all functions and elements that are available with CODESYS Visualization, for example:

Alarm management

Trace and trend display

User management

Recipe management

Visualization styles

Download the visualization directly from the development environment to the HMI device
