ATI: Net F/T Power Supply 9105-NETPS-N

Description

The 9105-NETPS-N is a 24VDC power supply designed specifically for ATI Industrial Automation Net F/T (Force/Torque) sensor systems, featuring a North American line cord.

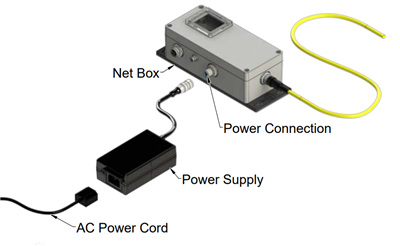

This unit is used to provide external power to the Net F/T network box (such as the 9105-NETB), which handles data acquisition and communication for 6-axis force/torque sensors.

Key Features & Specifications:

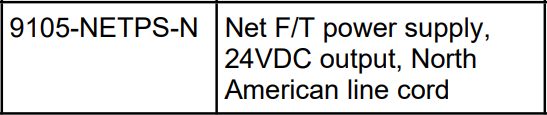

Part Number: 9105-NETPS-N

Output Voltage: 24 VDC

Compatibility: Net F/T systems (e.g., Omega85 Net F/T, Gamma Net F/T, Omega160 Net)

Input Cord: North American Standard

Function: Connects to the Power/CAN connector to provide power to the Net Box

The Net F/T system, which this power supply supports, allows for Ethernet, EtherNet/IP, and CAN bus communication for high-speed force and torque data acquisition.
The 9105-NETPS-N is frequently used alongside ATI Gamma NET F/T sensors (9105-NET-GAMMA) for applications requiring high-signal-to-noise ratios, such as robotic assembly, grinding, and testing.
