ATI: DeviceNet Pass-through Modules 9120-TD-M
ATI: DeviceNet Pass-through Modules 9120-TD-M



Alternate View

10-pin, 5 Amp/24VAC electrical master module with pass-through DeviceNet and Aux power
Price : $503.84


Availability: Usually Ships in 6 to 8 Weeks
Order #: 9120-TD-M
Qty:

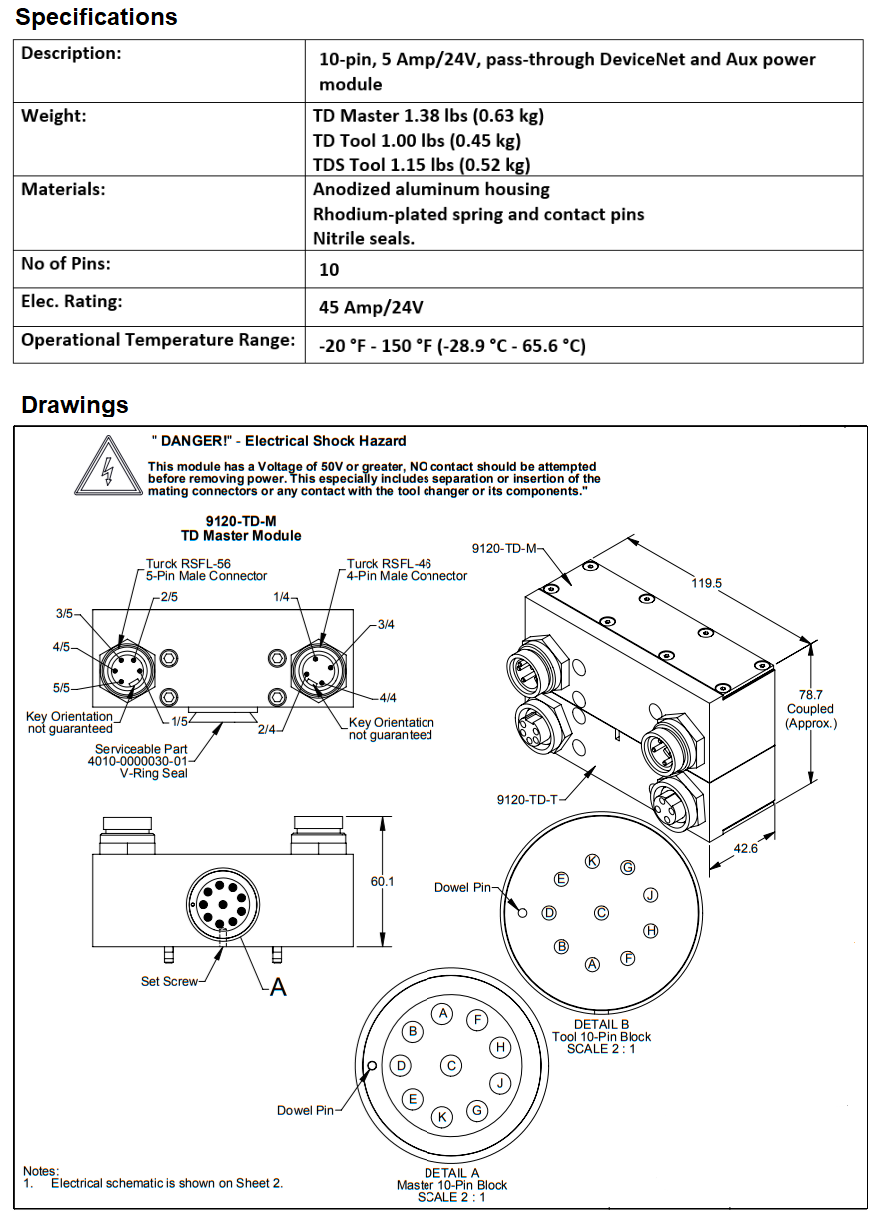

Description Specifications and Drawings


ATI: DeviceNet Pass-through Modules 9120-TD-M
Product Advantages
10 pins.
5 Amp/24V.
Electrical module to pass DeviceNet, bus, and auxiliary power connections.
ODVA Standard mini-fast 4- and 5-pin connectors.
Direct pass-through connections.
NOTE: TD module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
When used on the QC-110, slight possibility that the air supply fittings will hit the edge of the TD module. Please consult an ATI Account Manager for more information.
Compatible QC Models

QC Model

Side

Notes

Adapter Plate Required

QC-46

Flats B, C2,D

No

QC-50

T

Flats A, B, C, D
Modules will overhang each flat and block (1) M5 air port, and interferes with adjacent module flat.

Use of JJ30 gives access to one more port.

Yes

QC-76

Flats A, B

No

QC-110

Flats A, B

No

QC-160

Flats A,B (On Flat B, Position 3, Port 5 is restricted). TE/TP modules cannot be mounted adjacent to other modules on same flat without special adapter.

No

MC-36R

Flats A, B

No
