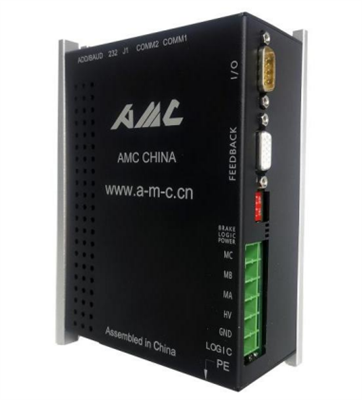

AMC China: RS485 Servo Drive CPRALTE-020B080
AMC China: RS485 Servo Drive CPRALTE-020B080



Contact us for quantity price
Price : $850.00

Quantity in Stock:99

Availability: Usually Ships in 2 to 3 Weeks
Order #: CPRALTE-020B080
Qty:

Description Ordering Information Specifications and Drawings

AMC China: RS485 Servo Drive CPRALTE-020B080

CPR series digital servo drives are designed to drive brushes, brushless servo motors, stepper motors and AC induction motors. These digital drives operate in torque, speed or position mode and adopts the Space Sector Modulation (SVM) technology. Compared with traditional PWM, it can improve bus voltage utilization and reduce heat dissipation. It is configured to use various external command signals, and to use Built-in motion engine configuration commands. In addition to motor control, these drives also have dedicated programmable digital and analog inputs and outputs to enhance the interface with external controllers and devices.

A new built-in shunt regulator is added to the CPR series of drive module, which can consume the energy generated by the regeneration process in the system feedback to maintain the DC bus voltage at a fixed voltage to prevent the overvoltage and shut down.

CPR series drives have RS485/Modbus RTU network communication function, you can connect DriveWare®7 software via RS232 to complete the driver debugging and configuration.

CPR or CPC Series digital servo drives are designed t drive brushed and brushless servo motors, stepper motors and AC induction motors. These all-digital drives operate in torque, speed or position mode and use space vector modulation (SVM) technology. Compared with traditional PWM, it can improve bus voltage utilization and reduce heat dissipation. The drive can be configured to use various external command signals, or the drive's built-in motion engine (internal motion controller for distributed motion applications) can be used to configure commands. In addition to motor control, these drives also have dedicated programmable digital and analog inputs and outputs to enhance the interface with external controllers and devices.

CPR or CPC series drives have added a built-in shunt regulator module, which can consume the energy feedback generated during the regeneration process in the system, and maintain the DC bus voltage at a fixed voltage to prevent the drive from overvoltage shutdown.

CPR series drive controllers have RS-485 network communication function, CPC series drives have CANopen network communication function, they can all be connected to DriveWare®7 software through RS232 to complete drive debugging and configuration.


The CPRALTE-020B080 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes
Modbus RTU, RS-485/232® communication and is commissioned with DriveWare® via an RS-232 interface.


SPECIFICATIONS

Size (mm)158 x 111 x 60
Weight (g)900
Rated Power Continuous (kW)2.4
Rated Power Peak (kW)4.8
Current Continuous (A)10.0
Current Peak (A)20.0
DC Supply Voltage (VDC)20 - 80
Network CommunicationModbus RTU, RS-485/232

CONTROL/COMMAND

  • ±10 V Analog
  • Step & Direction (5V)
  • Encoder Following
  • Indexing
  • Jogging
  • Over the Network
  • PWM and Direction
  • Sequencing

PRIMARY FEEDBACK

  • ±10 VDC Position
  • Halls
  • Incremental Encoder
  • Tachometer (±10 VDC)

OPERATING MODE

  • Current
  • Hall Velocity
  • Position
  • Velocity

MOTOR TYPE

  • Three Phase (Brushless)
  • Single Phase (Brushed)
  • AC Induction
  • Stepper
