Unitronics: UniStream I/O Expansion Modules (UIS Series)
Unitronics: UniStream I/O Expansion Modules (UIS Series)




Price : $377.50

Price with Selected Options: $377.50


Availability: Lead time is 1-3 weeks
Order #: UIS


Model Number/Code*:

Qty:
Description Specifications and Drawings


Unitronics: UniStream I/O Expansion Modules (UIS Series)

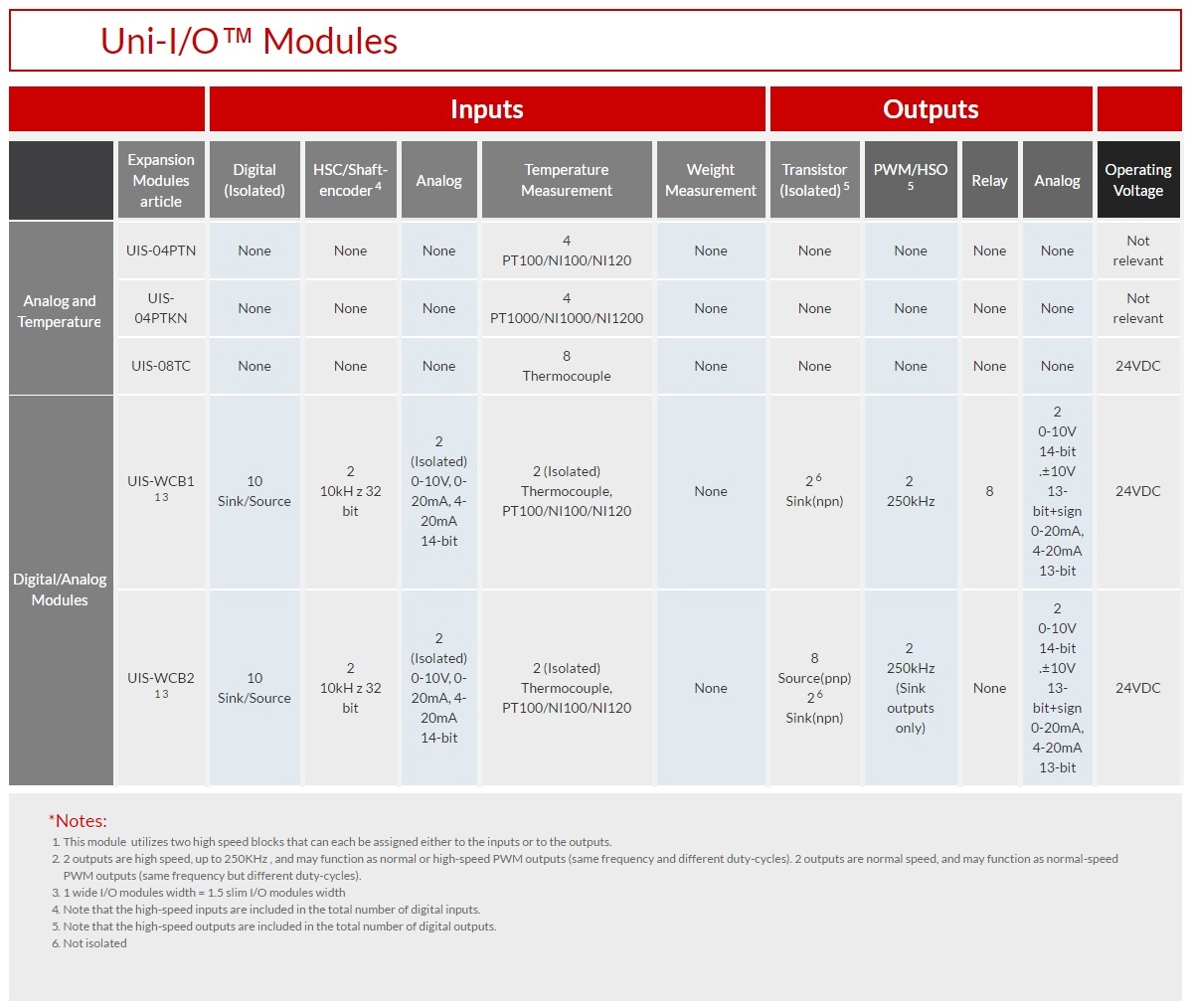

Expandability | On-Board, Local, & Remote I/Os

Select the perfect combination of I/O expansion modules and configure them to fit your application.
Snap to the HMI panel up to 5 modules on a 10.4” panel, or up to 3 on a 7” panel. Expand further locally up to 16 modules, and use EX-RC1 adapters to further extend the number of I/Os using Vision I/Os locally or remotely.

UIS-04PTN

  • Temperature module with 4 RTD inputs of type PT100/NI100/NI120

UIS-04PTKN (Call for Pricing)

  • Temperature module with 4 RTD inputs of type PT1000/NI1000/NI1200

UIS-08TC

  • 8 Thermocouple Inputs, 24VDC Operating Voltage

UIS-WCB1

  • Wide I/O module, 10 Digital Inputs, 2 Analog Inputs, 2 TC Inputs, 8 Relay Outputs. 2 Transistor Outputs, 2 Analog Outputs.

UIS-WCB2

  • Wide I/O module, 10 Digital Inputs, 2 Analog Inputs, 2 TC Inputs, 10 Transistor Outputs, 2 Analog Outputs.
