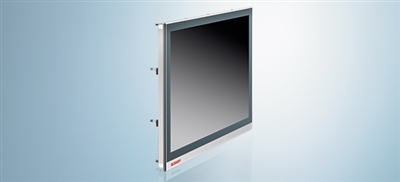

Beckhoff: Industrial PC CP2907-0010
Beckhoff: Industrial PC  CP2907-0010



Price : $1,594.00


Order #: CP2907-0010
Qty:

Description Specifications and Drawings


Beckhoff: Industrial PC (CP29xx Series)

Product overview Multi-touch Control Panel


The multi-touch Control Panels are conceived both for control cabinet installation and for the mounting arm installation. The CP29xx built-in Panel series is implemented with IP 65 protection at the front and IP 20 at the rear. The CP39xx Control Panels for mounting arm installation feature all-round IP 65 protection. The panels CP29xx-0000 and CP39xx-0000 with DVI/USB Extended interface can be operated up to 50 m away from the Industrial PC. With CP-Link 4 – The One Cable Display Link – and CP29xx-0010 and CP39xx-0010 Control Panels the distance between Industrial PC and operating panel can be increased to 100 m.

Beckhoff offers the following display sizes:

Widescreen (16:9)

  • 7-inch, resolution of 800 x 480

  • 11.6-inch, resolution 1366 x 768

  • 15.6-inch, resolution 1366 x 768

  • 18.5-inch, resolution 1366 x 768

  • 21.5-inch, full HD resolution of 1920 x 1080

  • 24-inch, full HD resolution of 1920 x 1080

Further display sizes

  • 12-inch, resolution of 800 x 600 (4:3)

  • 15-inch, resolution 1024 x 768 (4:3)

  • 19-inch, resolution 1280 x 1024 (5:4)

With the option C9900-M575 all of the displays are also available in portrait format.

Customer-specific adaptations for a push-button extension individualize the multi-touch Control Panel series.


The new CP2xxx and CP3xxx Control Panel and Panel PC series

The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden solution for any application. The wide selection of models offers different display sizes and formats as well as custom designs. Even for single-touch users, this new panel generation offers an excellent price-to-performance ratio and represents an economical alternative to other systems.

Highlights

  • display sizes from 7-inch to 24-inch (16:9, 5:4, 4:3)

  • landscape and portrait orientation

  • multi-touch (PCT): e.g. for 5-finger or 2-hand touch operation

  • high touch-point density for safe operation

  • high-quality aluminum housing, milled from a solid block

  • metal perimeter protection for the display front

  • built-in or mounting arm models

  • Control Panels with CP-Link 4 or DVI/USB Extended Technology

  • Panel PCs with CPUs ranging from Intel® Atom™ to Core™ i7

  • optional electromechanical push-button extension


Model No.:
CP2907-0000, CP2907-0010, CP2911-0000, CP2911-0010, CP2912-0000, CP2912-0010, CP2915-0000, CP2915-0010, CP2916-0000, CP2916-0010, CP2918-0000, CP2918-0010, CP2919-0000, CP2919-0010, CP2921-0000, CP2921-0010, CP2924-0000, CP2924-0010
