Nanotec: ST11018 – STEPPER MOTOR – NEMA 42

Nanotec: ST11018 â€“ STEPPER MOTOR â€“ NEMA 42

Alternate View

Price : $222.00

Price with Selected Options: $222.00

Availability: Usually Ships in 3 to 5 Days
Order #: ST11018

Model Number/Code*:

Qty:

Description

Ordering Information

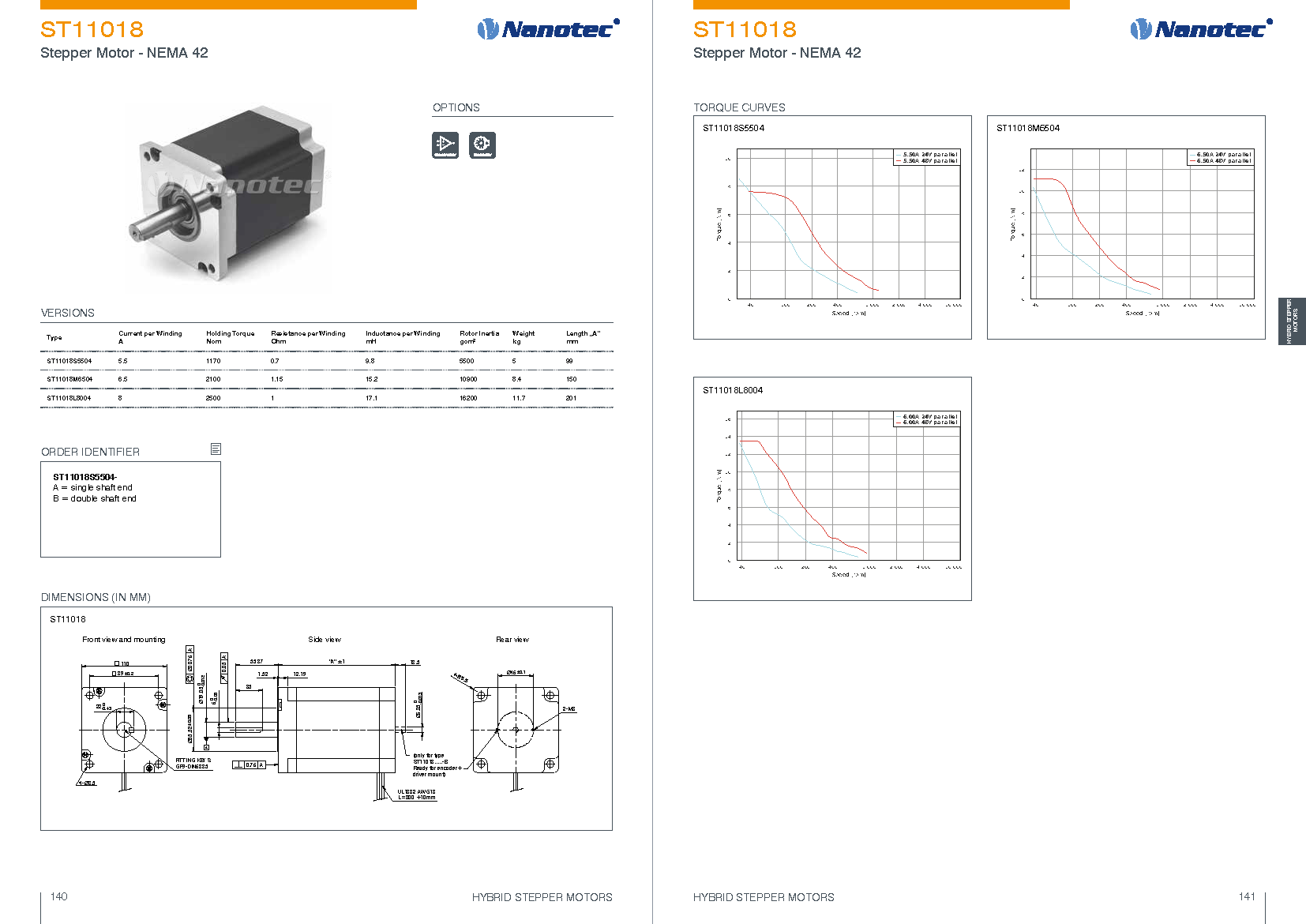

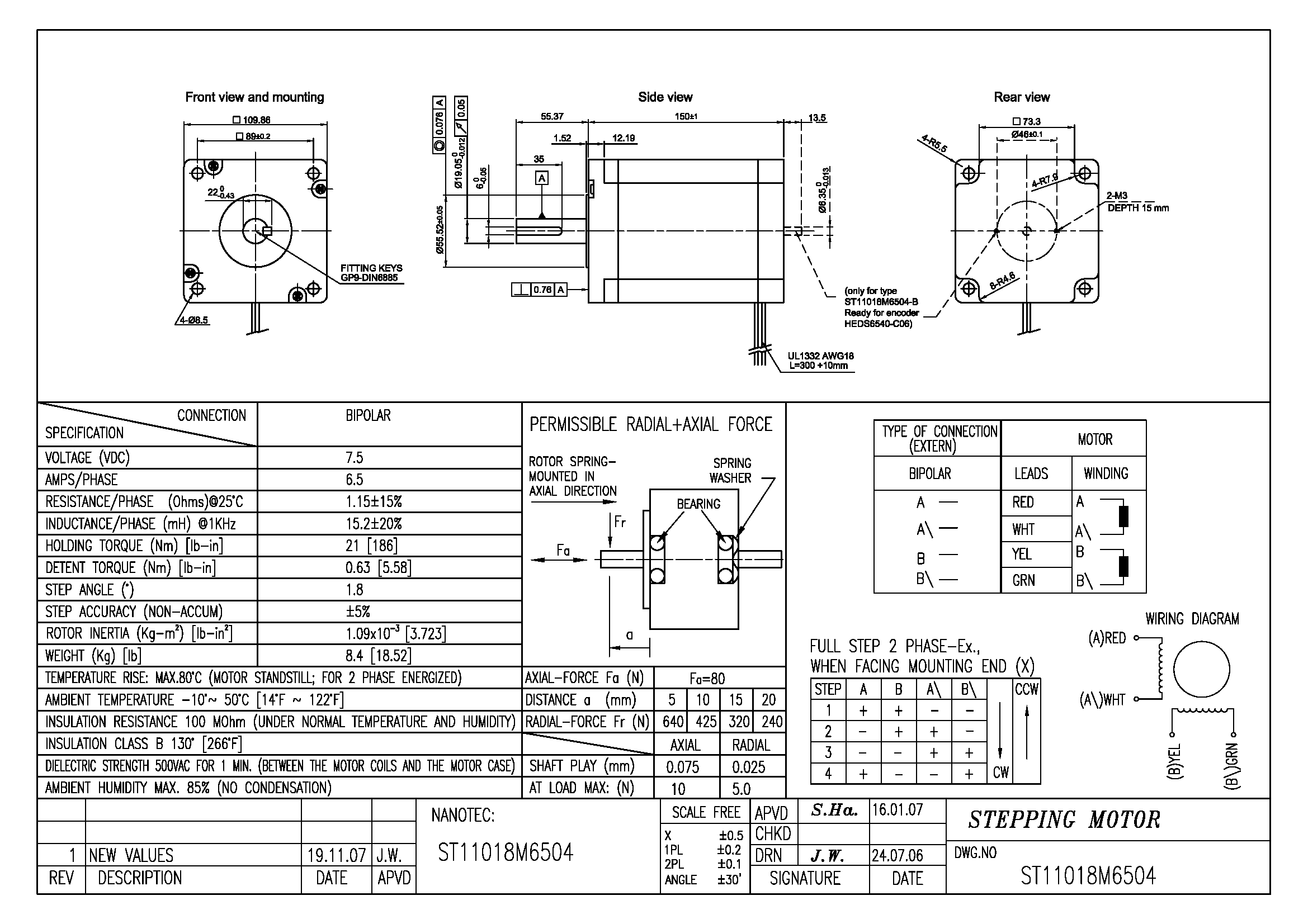

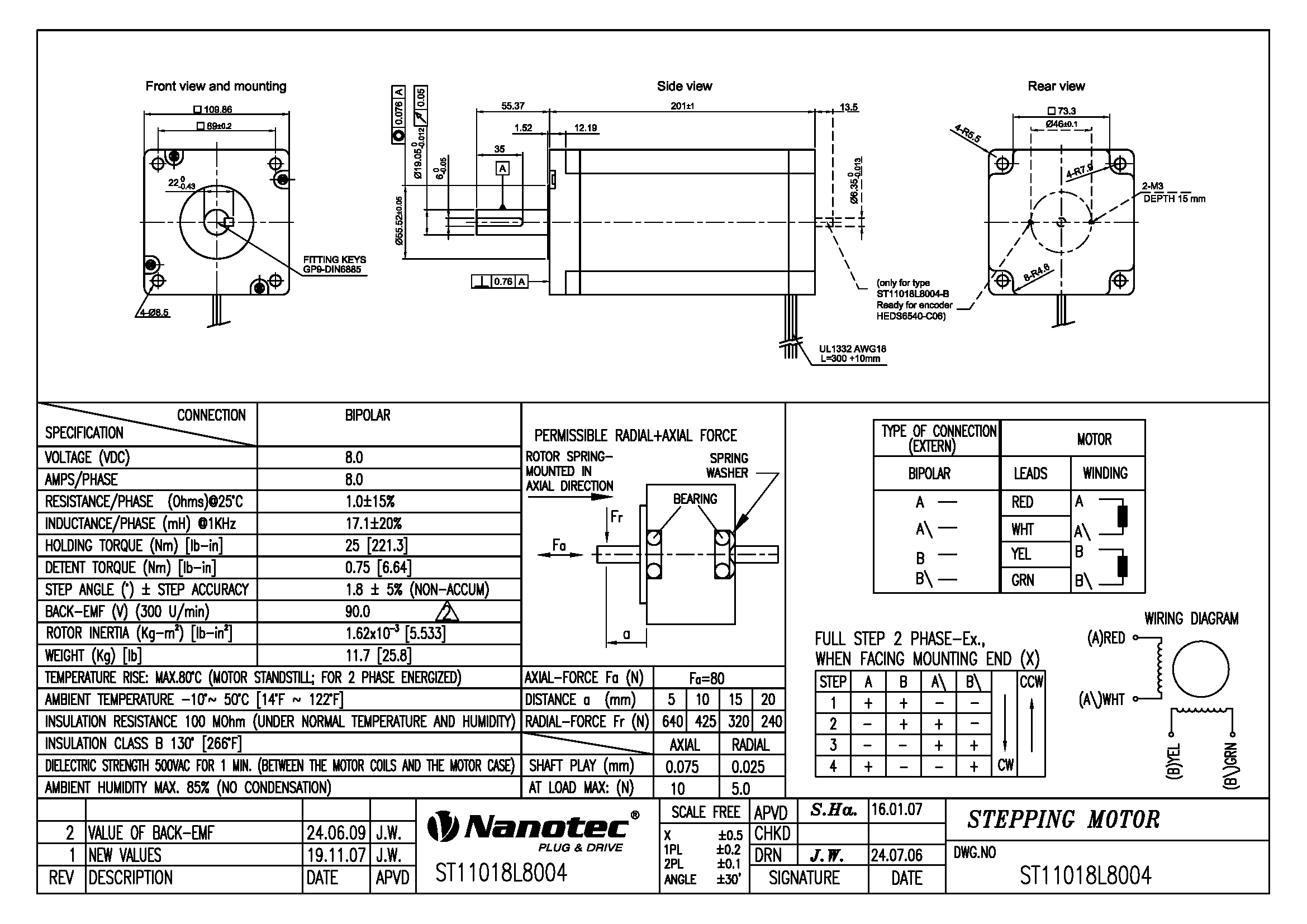

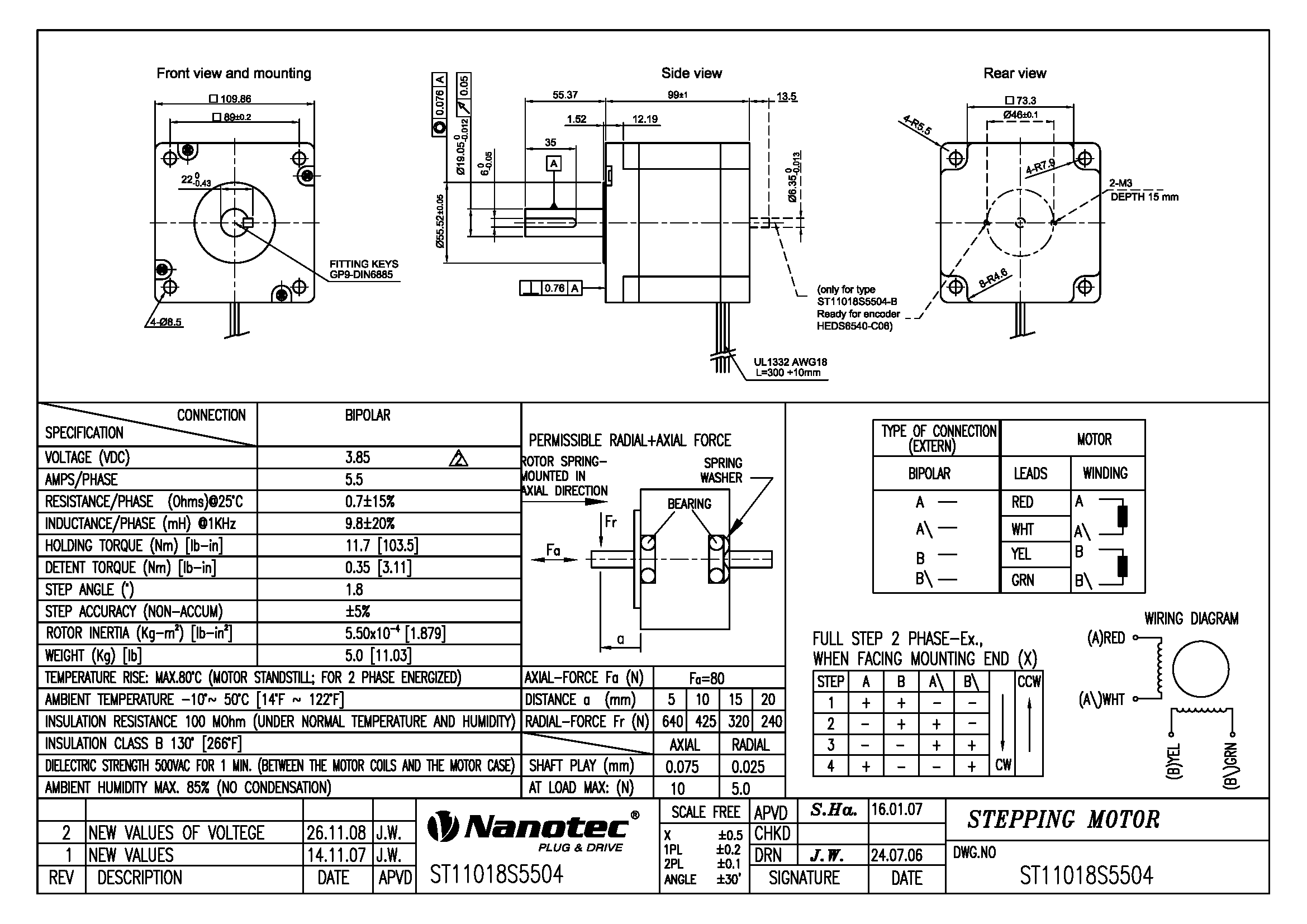

Specifications and Drawings

HYBRID STEPPER MOTOR – NEMA 42

Stepper motor with 110 mm flange, 1.8° step angle and 1,170–2,500 Ncm holding torque. Length: 99–201 mm.

ST11018L8004-A, ST11018L8004-B, ST11018S5504-A, ST11018S5504-B, ST11018M6504-A, ST11018M6504-B, ST11018L8004-A, ST11018L8004-B

• NEMA 42

• Current per Winding - 5.5 A - 8 A

• Length "A" - 3.9 in - 7.91 in

• Size - 4.33 in

• Holding Torque - 500.67 oz-in - 1702.29 oz-in

• Weight - 23.4 kg
