Nanotec: SC4118 – STEPPER MOTOR – NEMA 17
Nanotec: SC4118 – STEPPER MOTOR – NEMA 17




Price : $188.60

Price with Selected Options: $188.60


Availability: Usually Ships in 3 to 5 Days
Order #: SC4118


Model Number/Code*:

Qty:

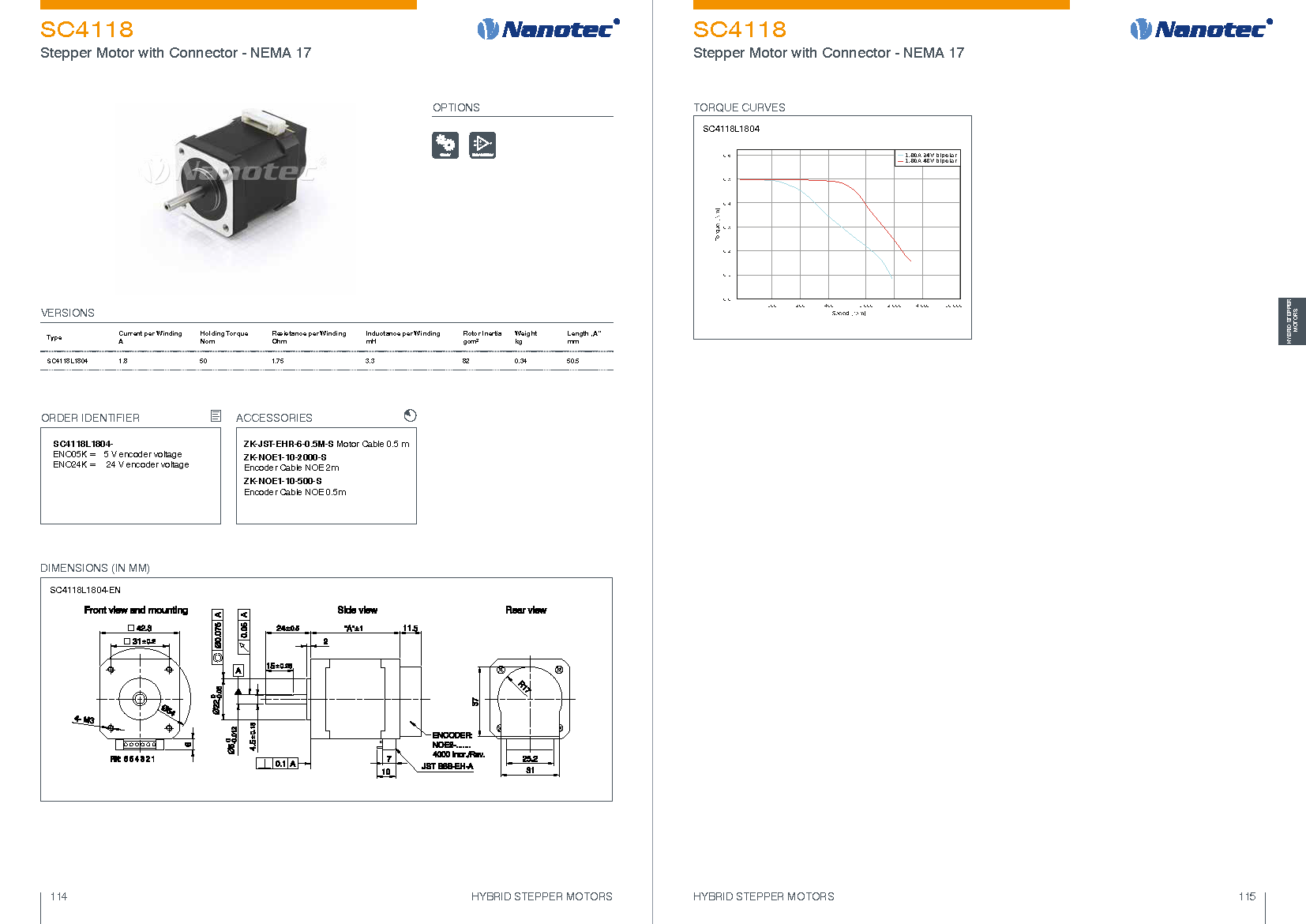

Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

HYBRID STEPPER MOTOR – NEMA 17

High-torque stepper motor with connector in size NEMA 17 (42 mm). The SC4118…-ENO05K and -ENO024K variants feature a high-resolution encoder (4000 incr./rev.). Ideal for precise positioning and closedloop applications. The A shaft has a flat side (D-Cut) for attaching the load.

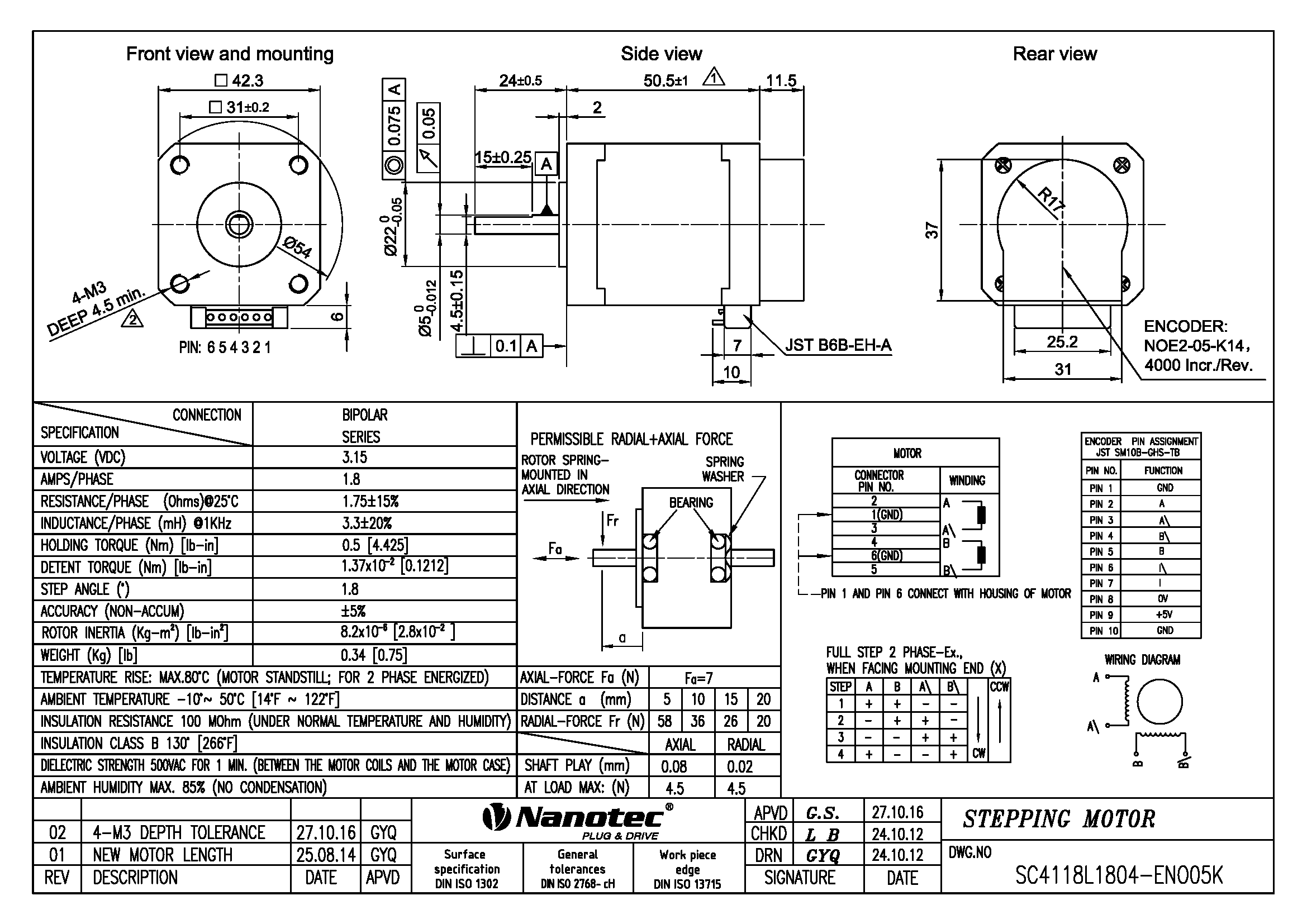

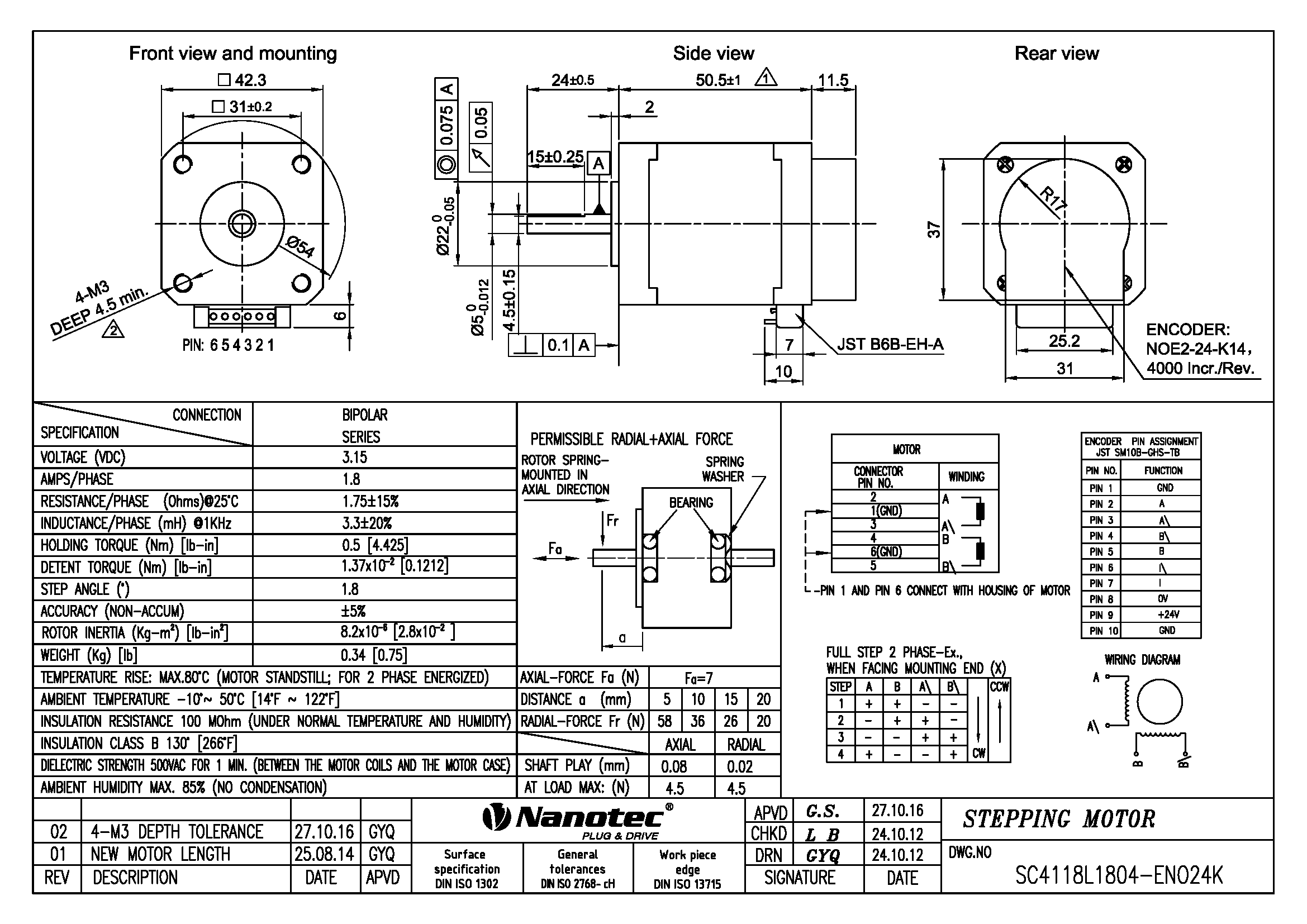

SC4118L1804-ENO05K, SC4118L1804-ENO24K

  • Size1.65 in
  • NEMA17
  • Holding Torque70.81 oz-in
  • Current per Winding1.8 A
  • Length "A"1.99 in
