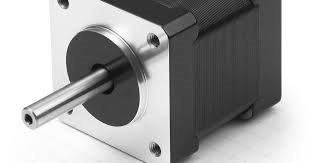

Nanotec: ST3518 – STEPPER MOTOR – NEMA 14

Nanotec: ST3518 â€“ STEPPER MOTOR â€“ NEMA 14

Alternate View

Price : $49.90

Price with Selected Options: $49.90

Quantity in Stock:2

Availability: Subject to availability
Order #: ST3518

Model Number/Code*:

Qty:

Description

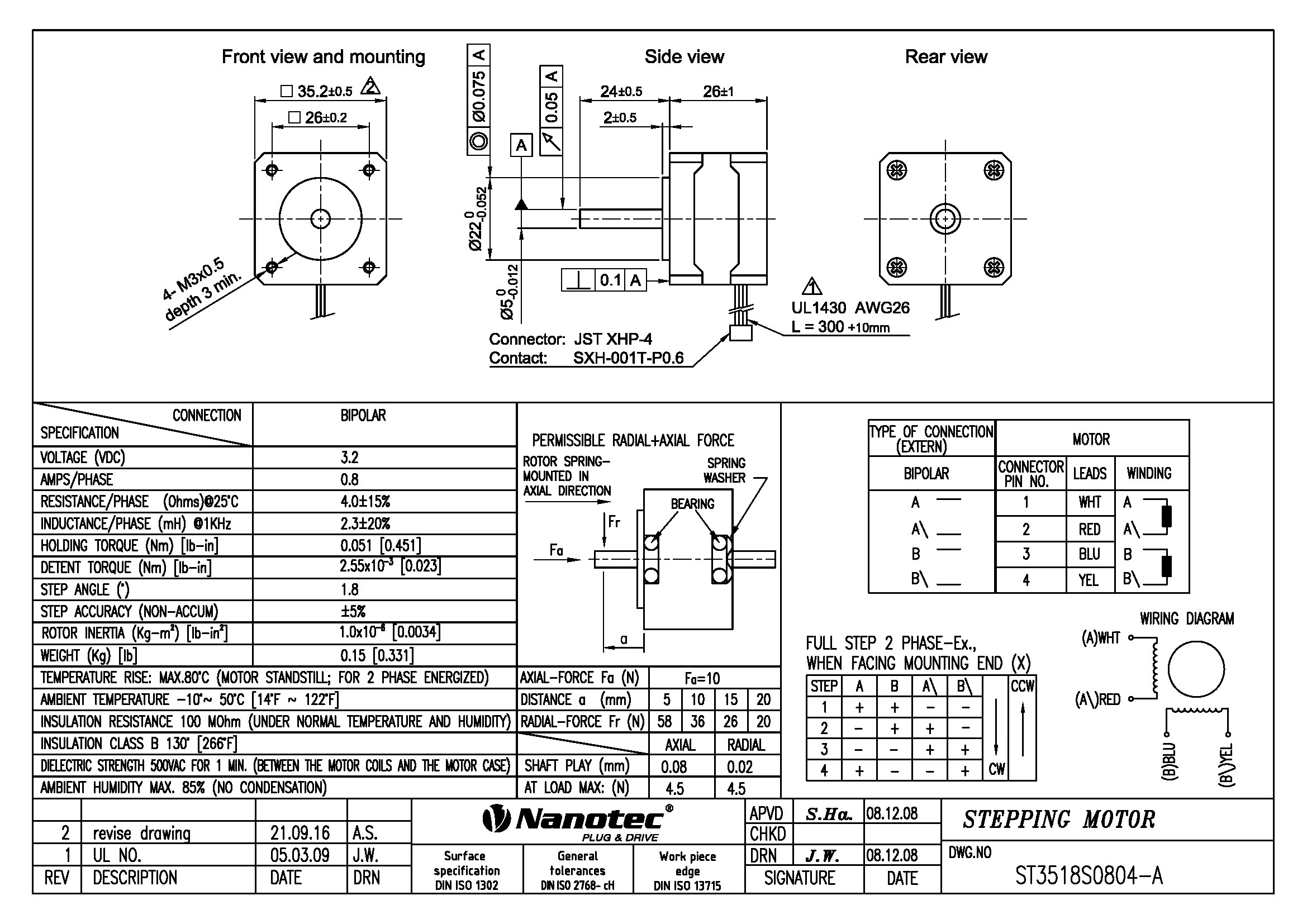

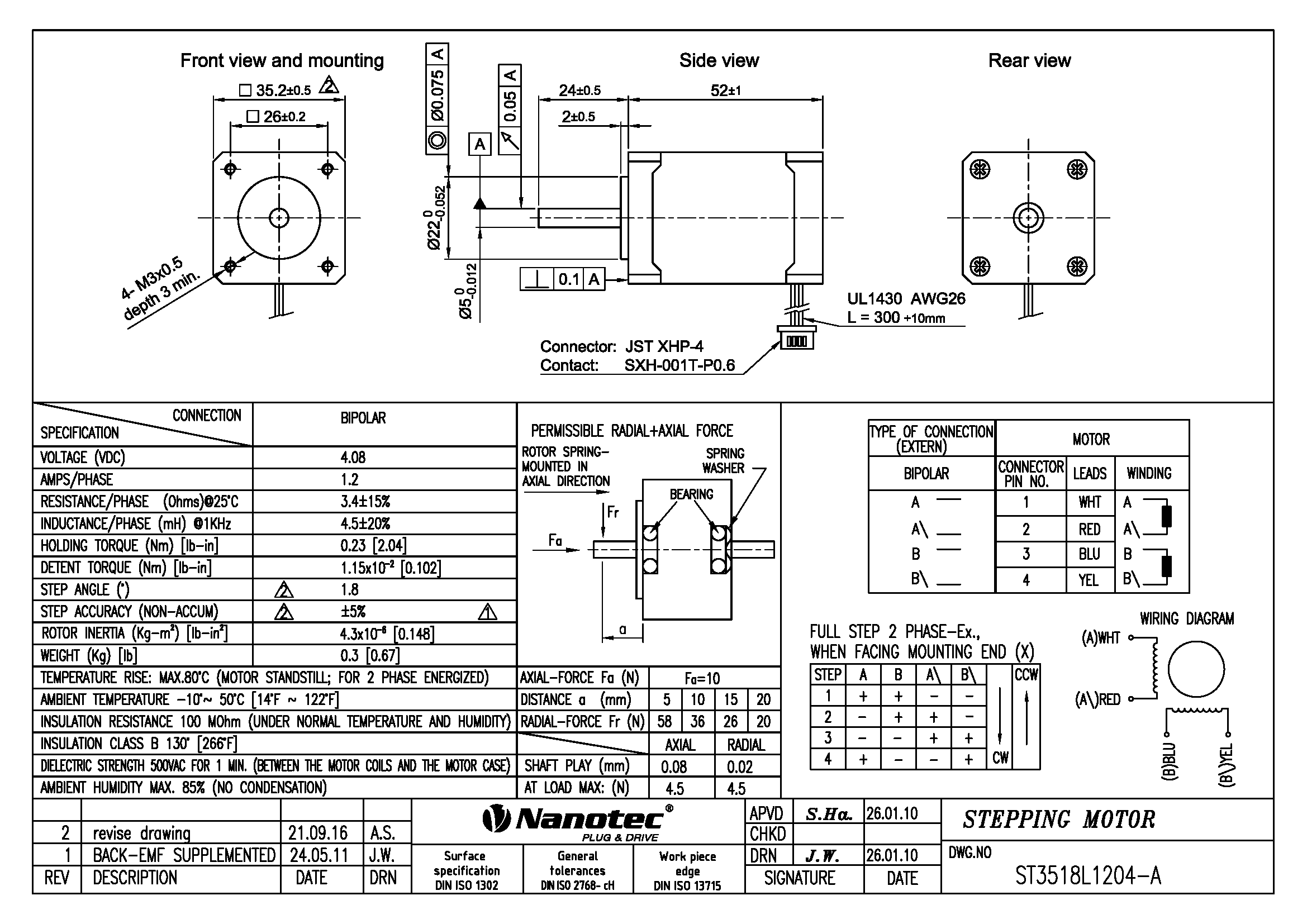

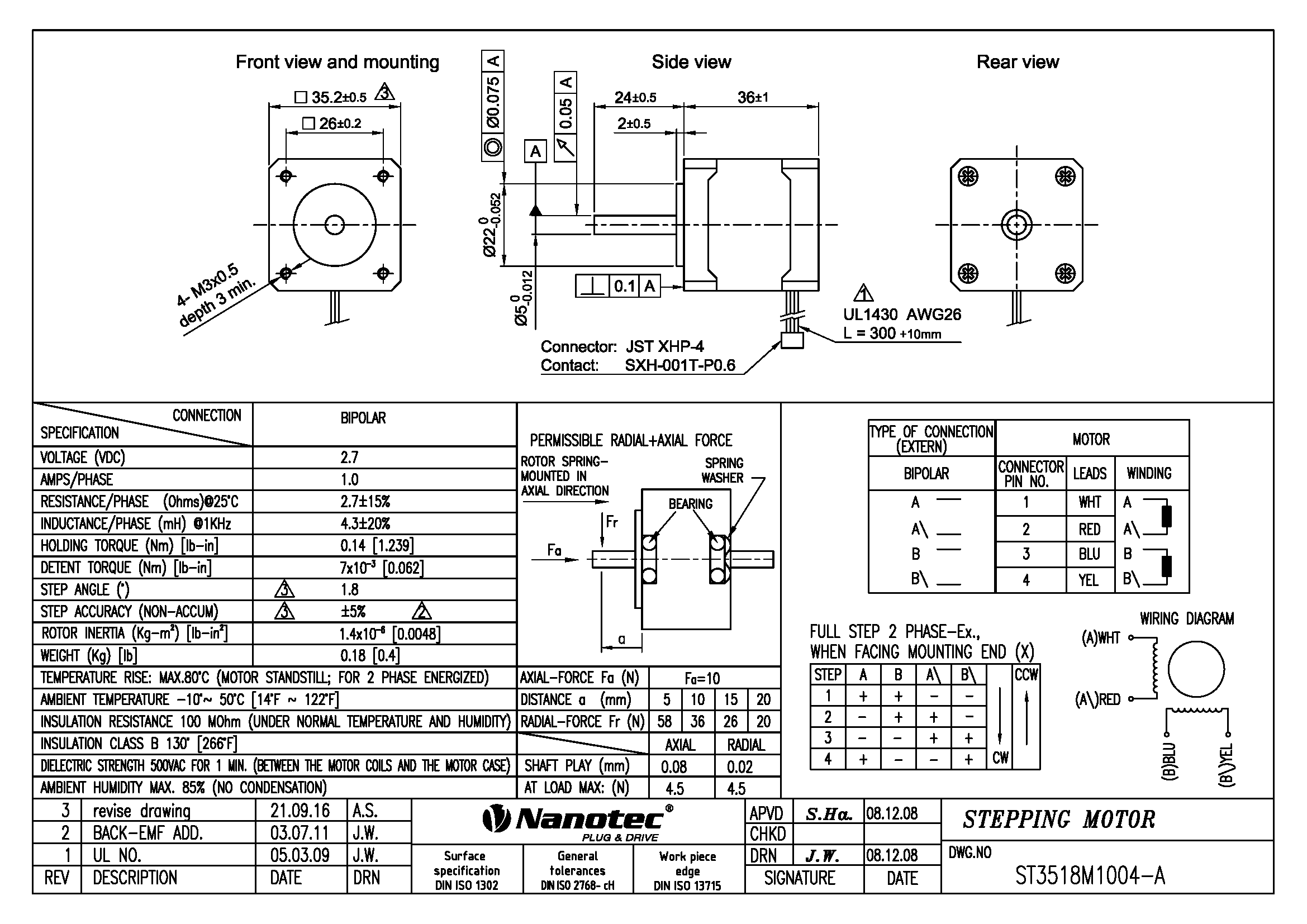

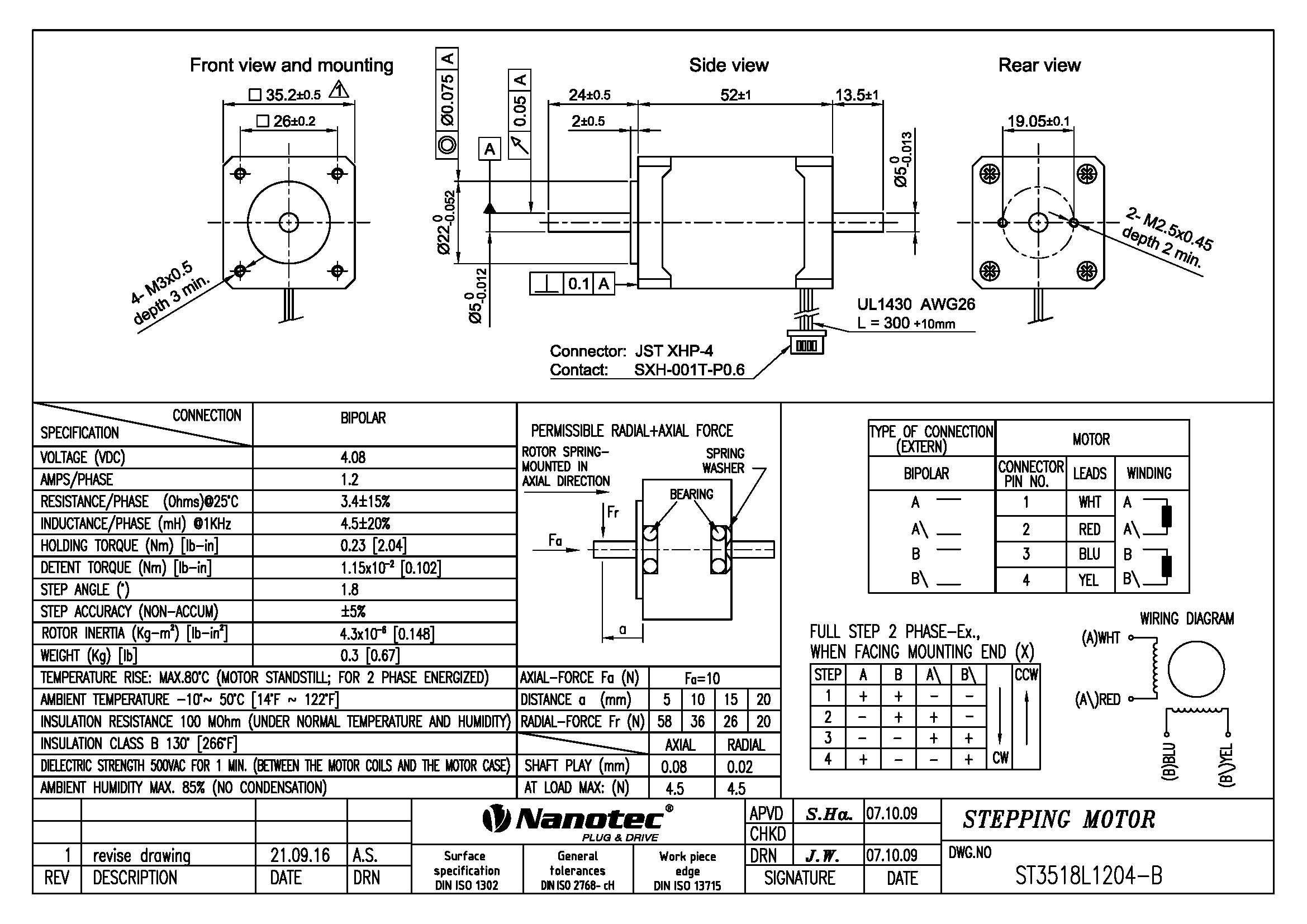

Specifications and Drawings

HYBRID STEPPER MOTOR – NEMA 14

High-torque stepper motor in size NEMA 14 (35 mm) with 1.8° step angle (full step). Available in three lengths.

ST3518S0804-A, ST3518S0804-B, ST3518M1004-A, ST3518M1004-B,

ST3518L1204-A , ST3518L1204-B

Size1.38 in
NEMA14
Holding Torque7.08 oz-in - 32.57 oz-in
Current per Winding0.8 A - 1.2 A
Length "A"1.02 in - 2.05 in
