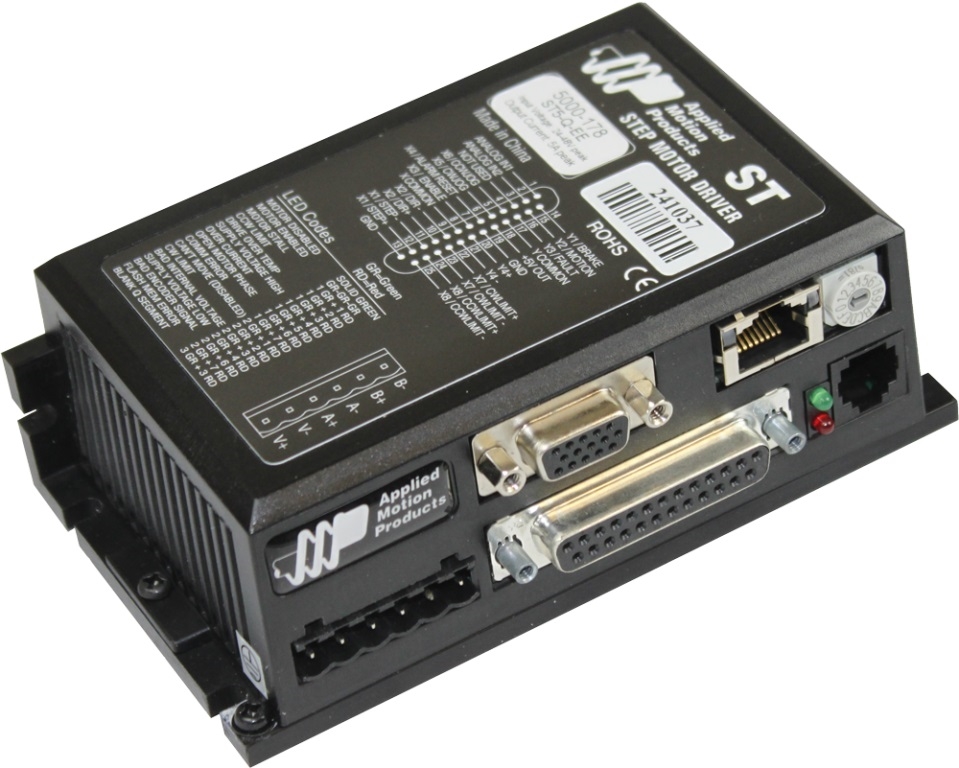

AMP: DC Advanced Microstep Drive (ST10-Q Series) 24-80 VDC
AMP: DC Advanced Microstep Drive (ST10-Q Series) 24-80 VDC



Price : $645.00

Price with Selected Options: $645.00


Order #: ST10-Q


Model Number/Code*:


Qty:
Description Specifications and Drawings


AMP: DC Advanced Microstep Drive (ST10-Q Series) 24-80 VDC

Step Motor Drives

Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

ST10-Q-EE: DC Advanced Microstep Drive w/ Ethernet & Encoder Input

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • Fast 10/100 Ethernet for programming and communications

  • UDP & TCP support

ST10-Q-EN: DC Advanced Microstep Drive w/ Ethernet & Q Programming

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • Fast 10/100 Ethernet for programming and communications

  • UDP & TCP support

ST10-Q-NE: DC Advanced Microstep Drive w/ Q Programming & Encoder Input

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Modbus/RTU for easy PLC and HMI communication

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • RS-232 cable and mating connectors included

ST10-Q-NF: DC Advanced Microstep Drive w/ Q Programming & Encoder Input/Output

Features:

  • Programmable microstepping drive with advanced current control

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • Buffered encoder out for monitoring by PLC or Motion Controller

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • RS-232 cable and mating connectors included

ST10-Q-NN: DC Advanced Microstep Drive w/ Q Programming

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Compatible with many 3rd party HMIs

  • Modbus/RTU for easy PLC and HMI communication

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • RS-232 cable and mating connectors included

ST10-Q-RE: DC Advanced Microstep Drive w/ Q Programming & Encoder Input

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Modbus/RTU for easy PLC and HMI communication

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • RS-232 cable and mating connectors included

  • RS-485 port for serial networking up to 32 axes

ST10-Q-RN: DC Advanced Microstep Drive w/ Q Programming

Features:

  • Programmable microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Modbus/RTU for easy PLC and HMI communication

  • Compatible with many 3rd party HMIs

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • RS-232 cable and mating connectors included

  • RS-485 port for serial networking up to 32 axes

Model No.: ST10-Q-EE, ST10-Q-EN, ST10-Q-NE, ST10-Q-NF, ST10-Q-NN, ST10-Q-RE, ST10-Q-RN
