CYCLONE: Servo Motor (SEMG-110)
CYCLONE: Servo Motor (SEMG-110)



Price : $3,220.00

Price with Selected Options: $3,220.00


Order #: SEMG-110


Brake Option:

Encoder:

Shaft:

Qty:
Description Specifications and Drawings


Specifications:

  • Brand: CYCLONE
  • Model: SEMG-110
  • Rated Speed: 1500 rpm
  • Maximum Speed: 2000 rpm
  • Rated Power: 11.0 KW
  • Rated Torque: 70.0 Nm
  • Peak Torque: 149.1 Nm
  • Rated Current: 75.0 Amps
  • Peak Current: 107.0 Amps


Catalog

Buying Guide

SEMG Specs.

SEMG Toque Curves

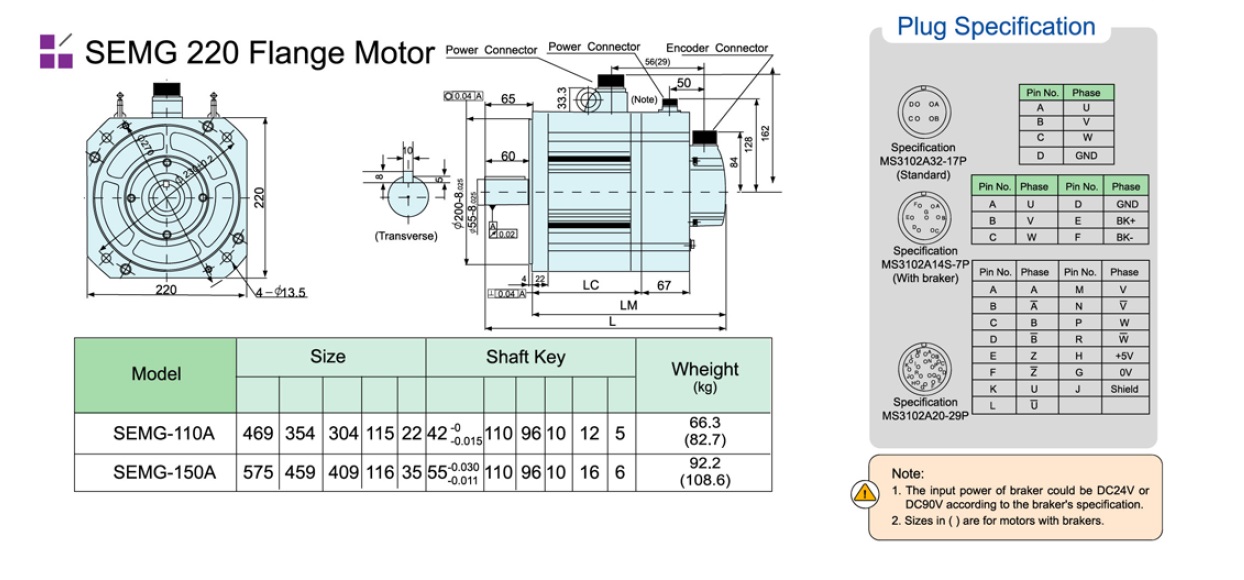

SEMG 220 CAD
