  Home > LS Mecapion >

LS Mecapion: 80 Flange, 3ϕ 380VAC/600VDC, F type motor With Optical Absolute Encoder ,With Brake
380VAC, 80 Flange,absolute encoder,with brake



Request discount coupon for over qty5

Price with Selected Options: $0.00


Availability: Usually Ships in 4 to 6 Weeks
Order #: 380VAC-80FLANGE-WITH-BRAKE


Model Number/Code*:

Qty:

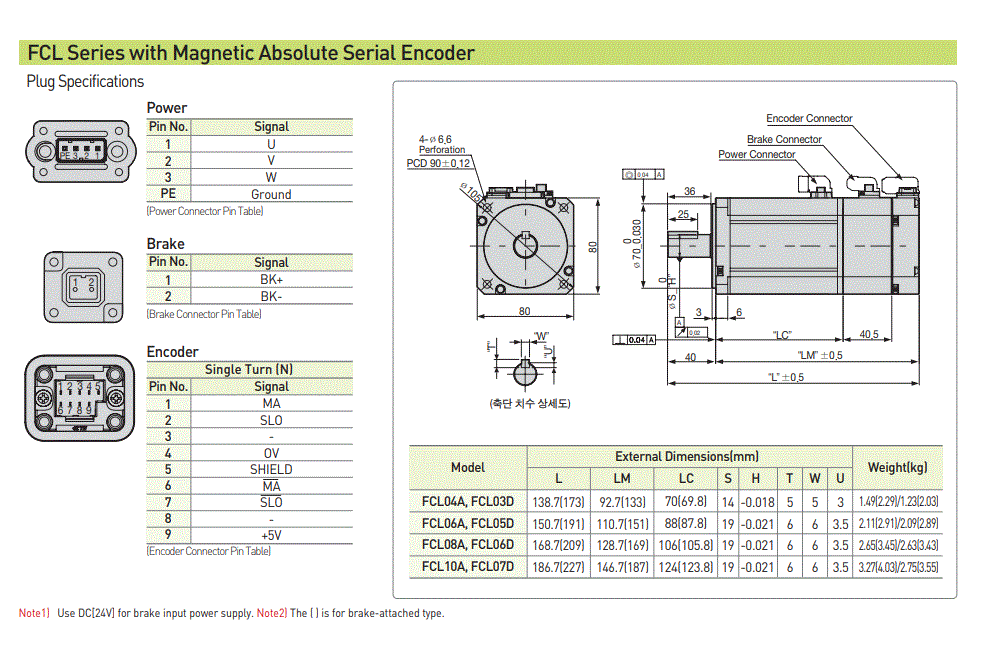

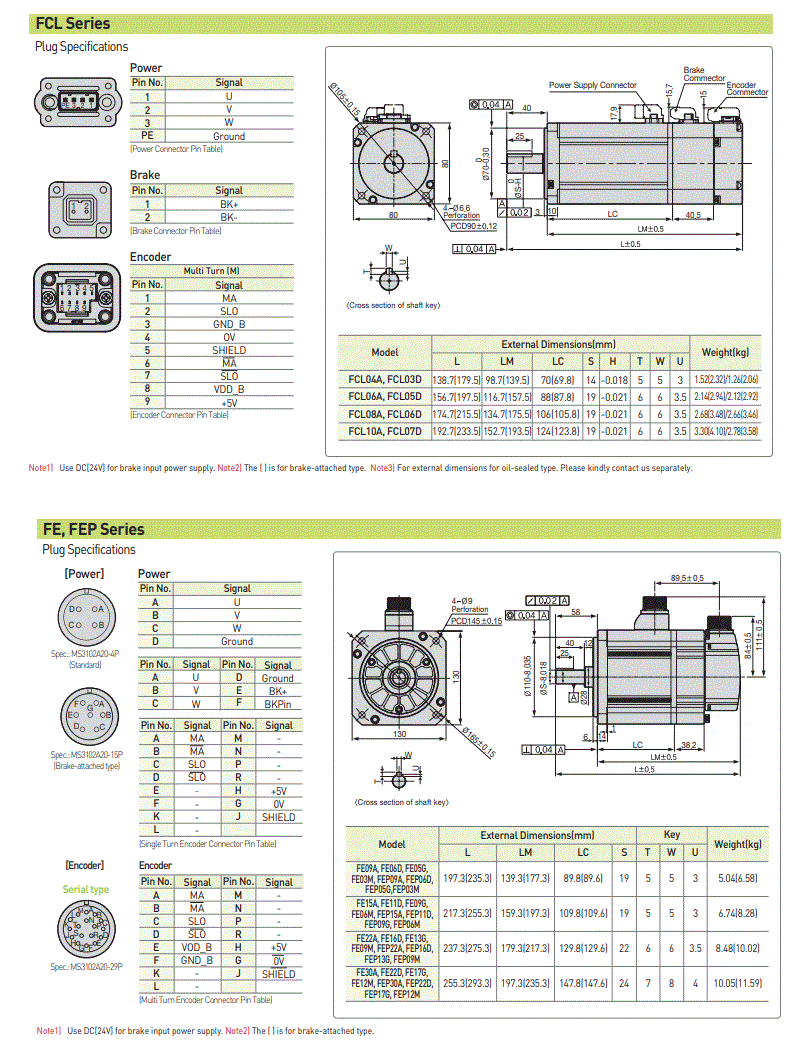

Description Ordering Information Specifications and Drawings


LS Mecapion: Solid Shaft Servo Motor (F-Type)

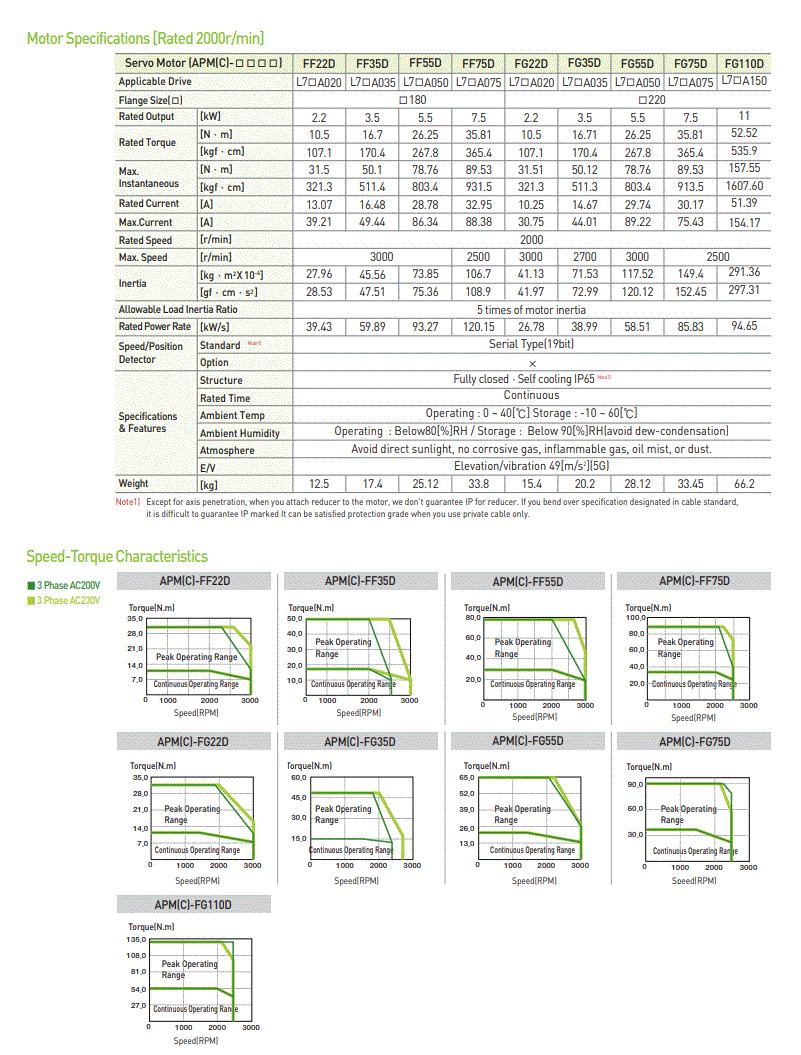

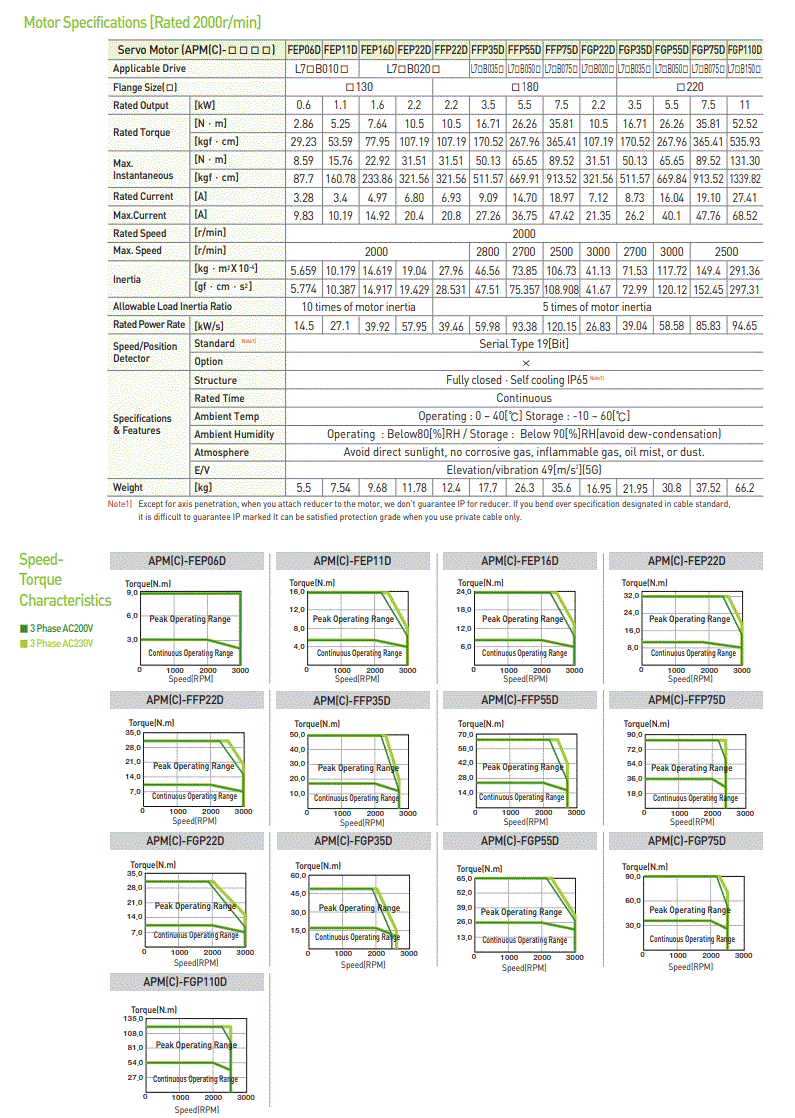

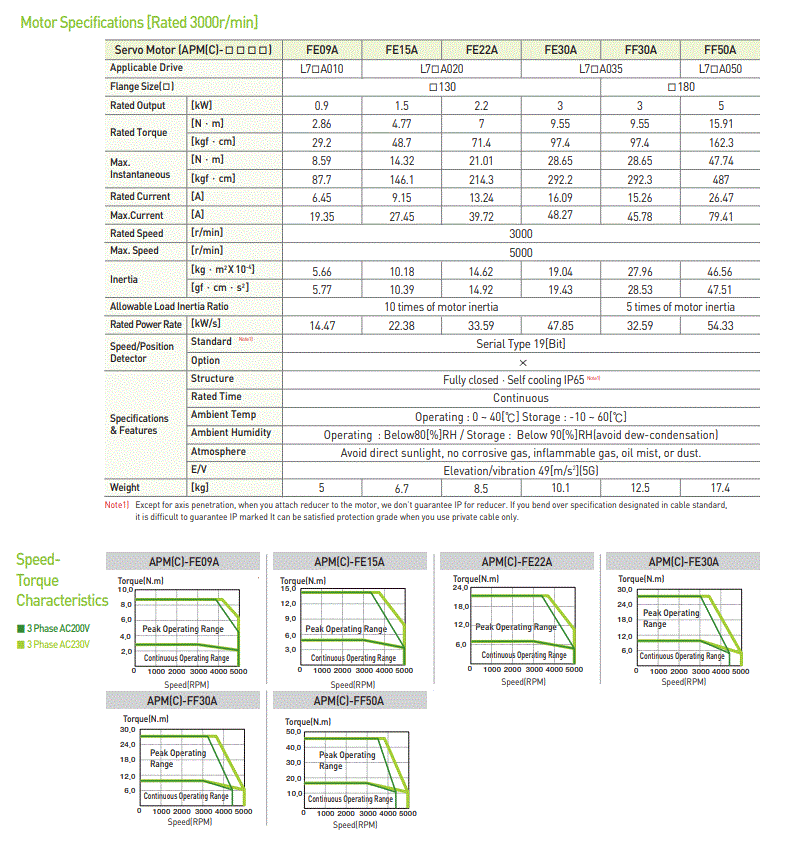

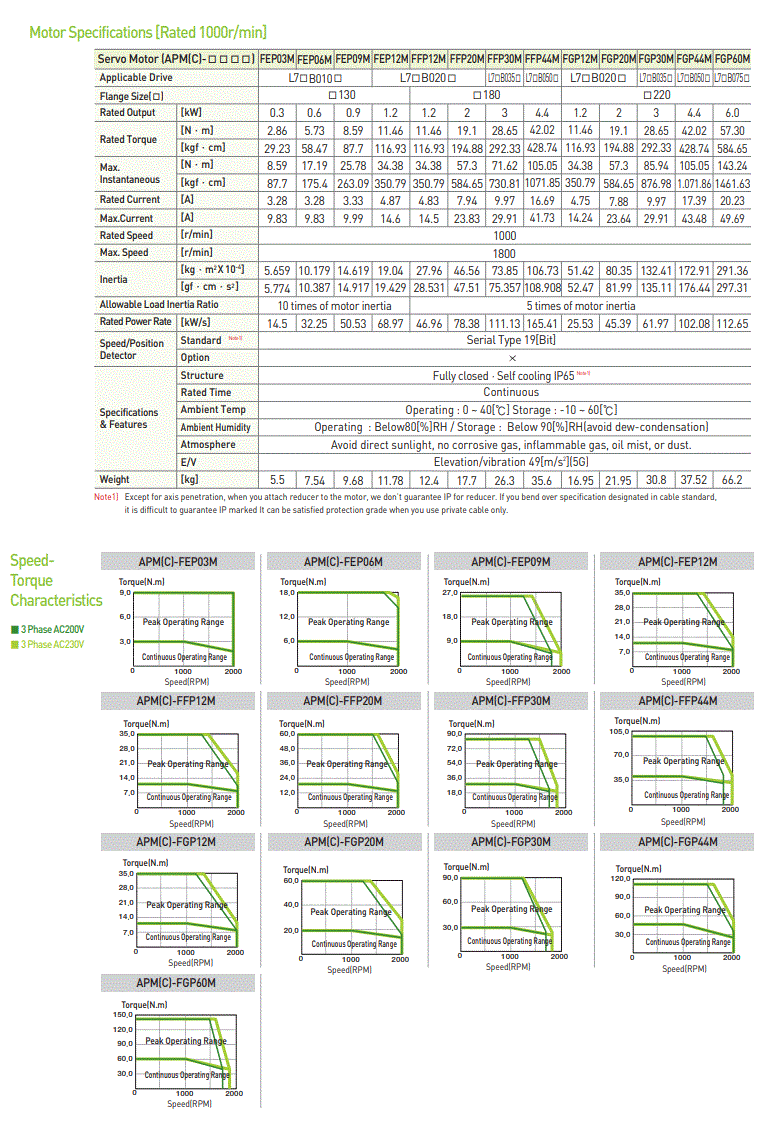

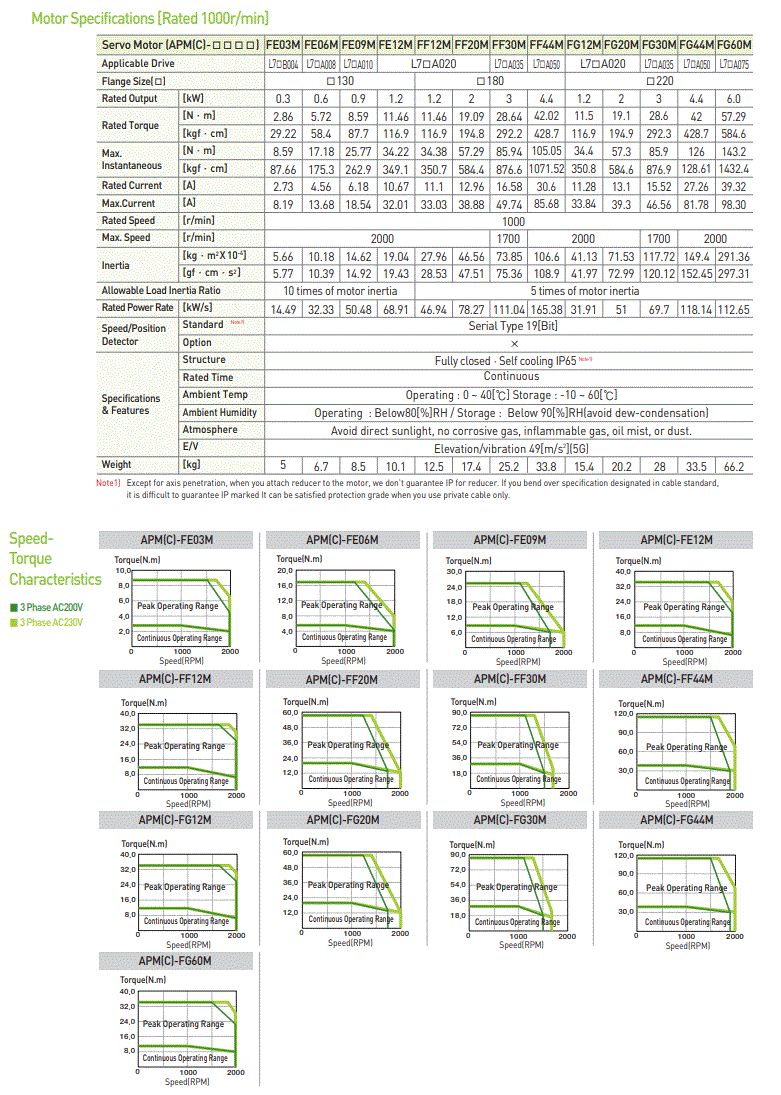

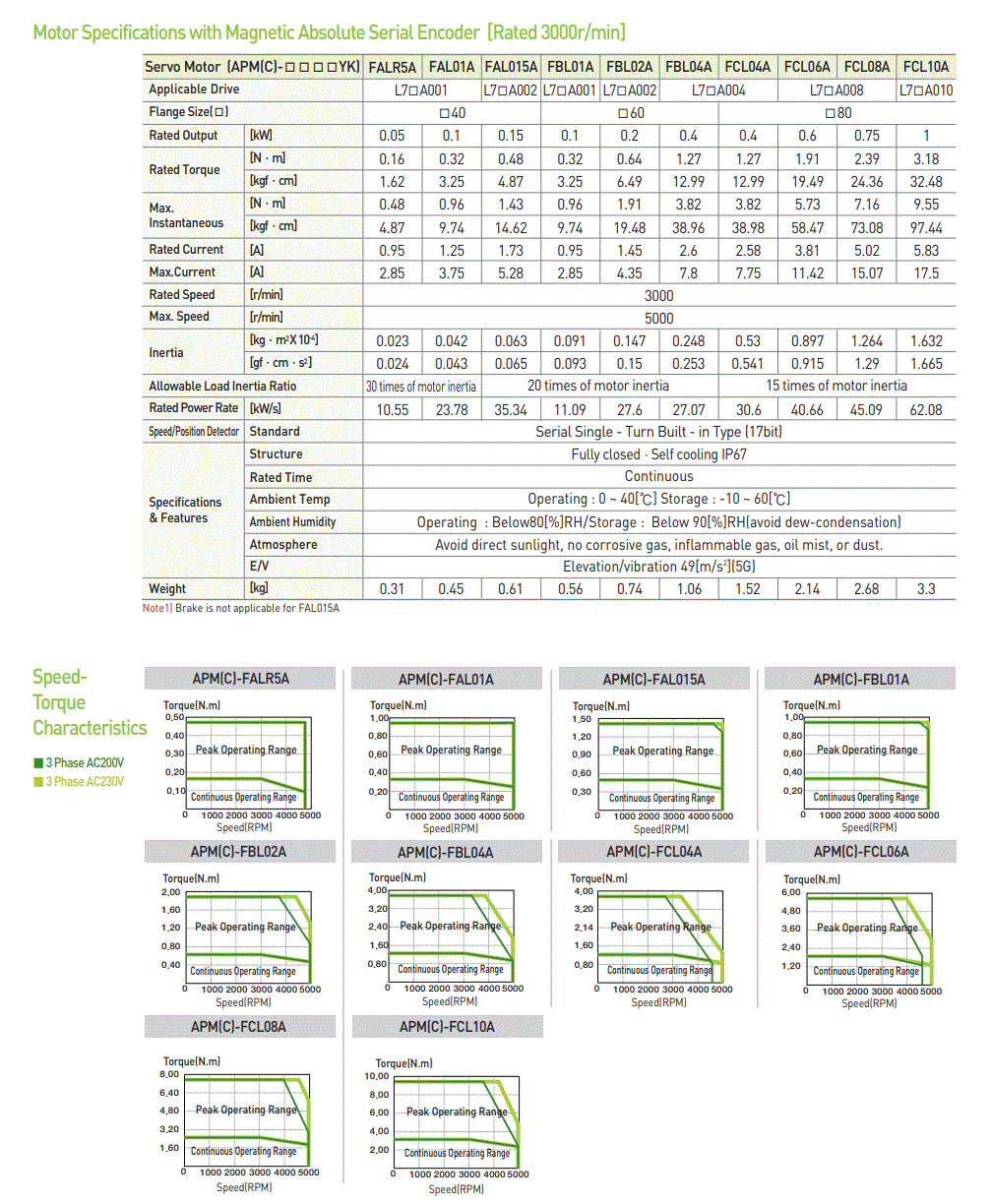

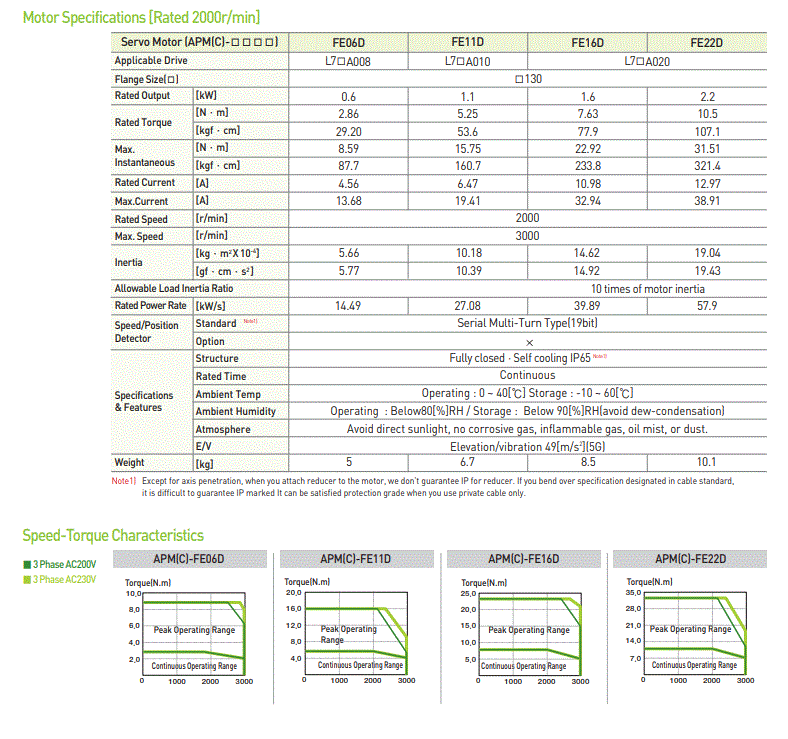

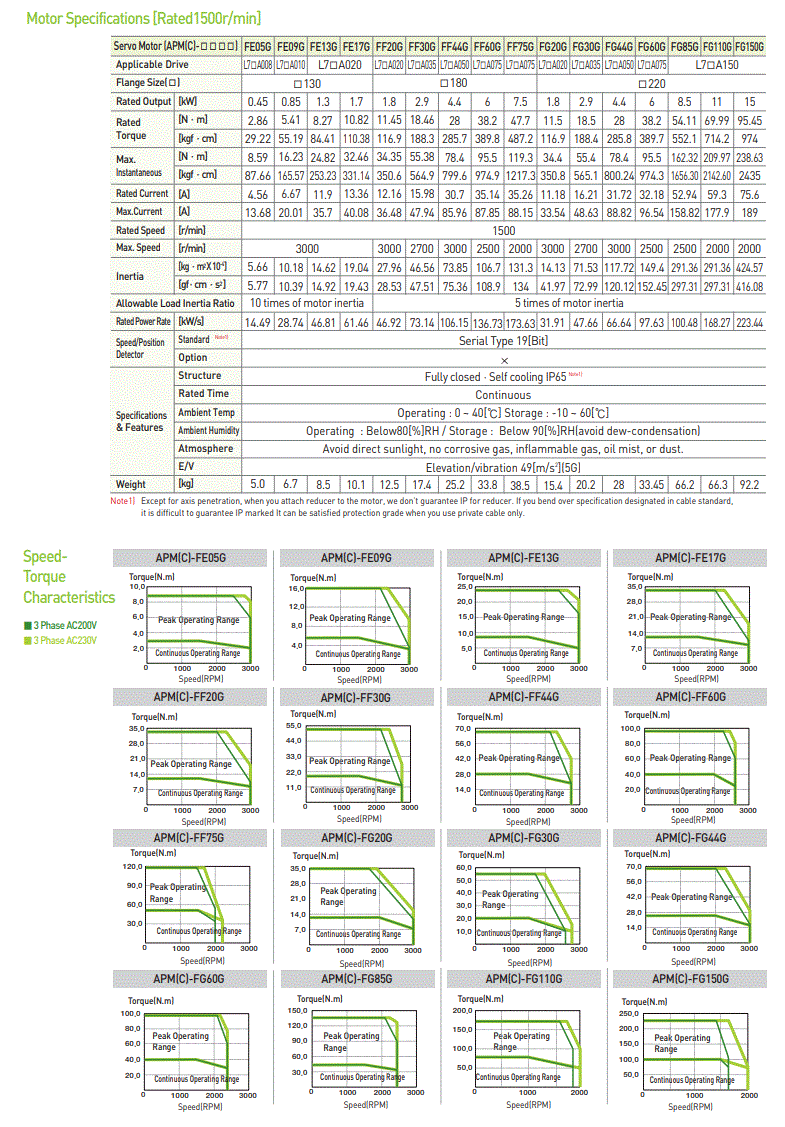

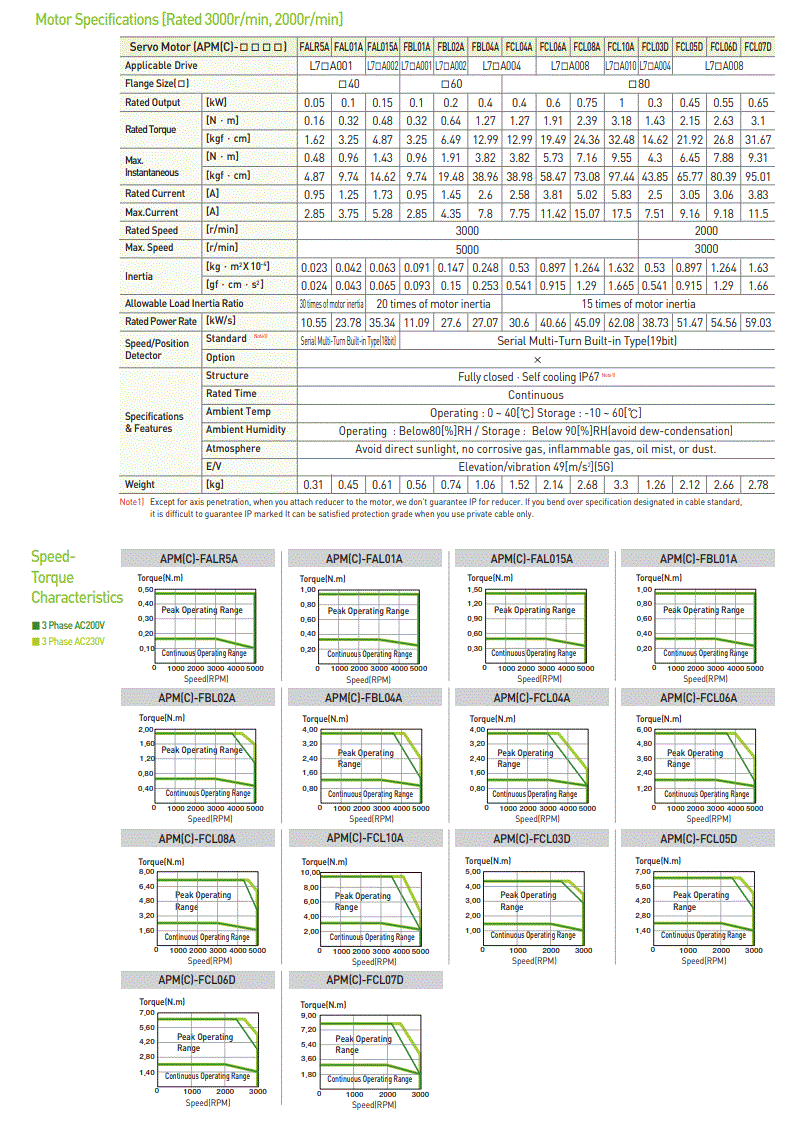

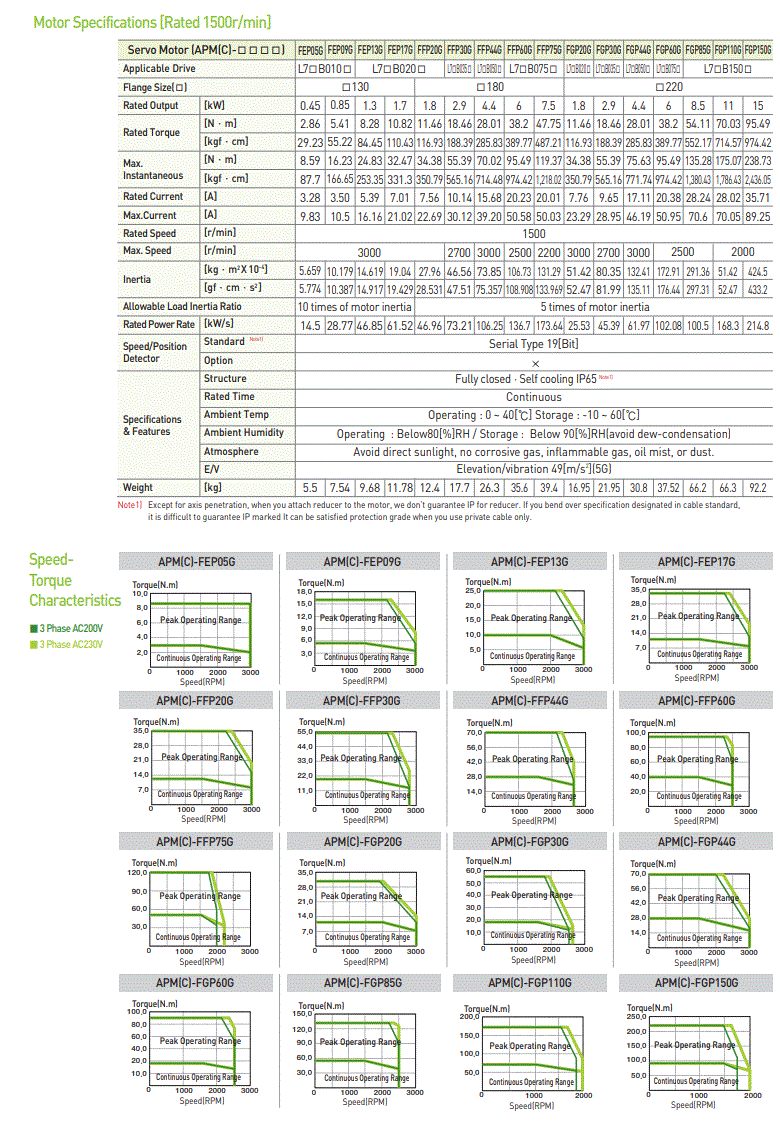

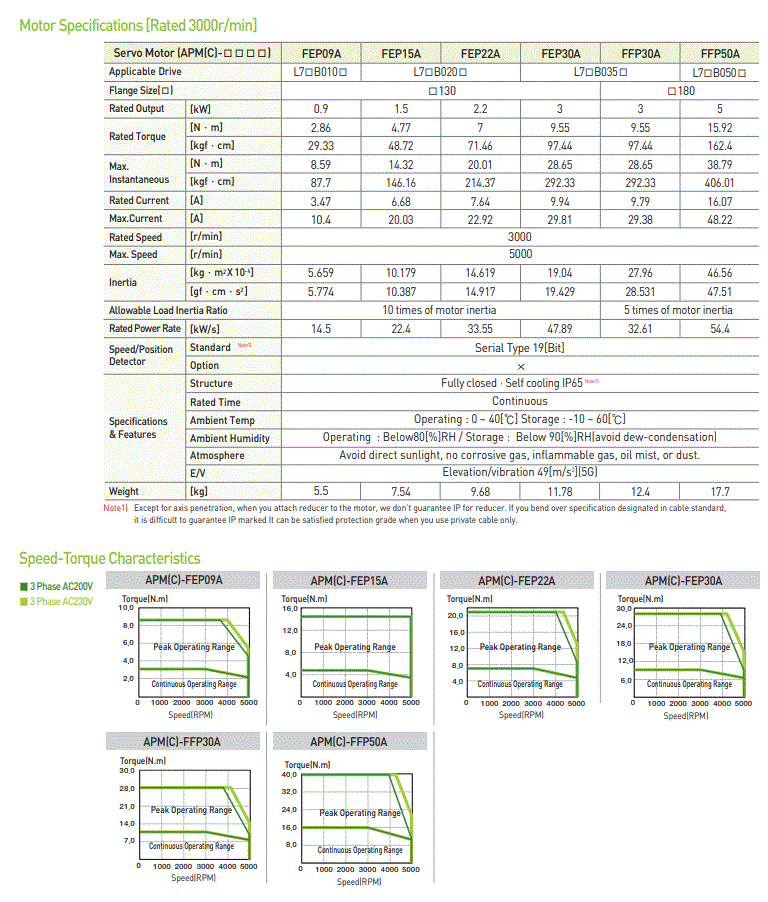

Specifications:

  • Size: 40 Flange ~ 220 Flange

  • Capacity: 100[W] ~ 15[kW]

  • Rated Torque: 0.32[N·m] ~ 95.49[N·m]

  • Rated Speed: 1000[rpm] ~ 3000[rpm]

  • Encoder: Serial 19bit

  • Feature: Improved insulation in the interior molding

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w)

3ϕ 380VAC/600VDC,With Brake

Flange Part Number Old Part NumberPower(w)Speed(rpm)EncoderPrice(USD)

□80

APM-SCP06AMK2

XML-SCP06AMK2E

600

3000

19BIT(M)

$1067.00

□80

APM-SCP08AMK2

XML-SCP08AMK2E

800

3000

19BIT(M)

$1132.50

□80

APM-SCP10AMK2

XML-SCP10AMK2E

1000

3000

19BIT(M)

$1198.50
