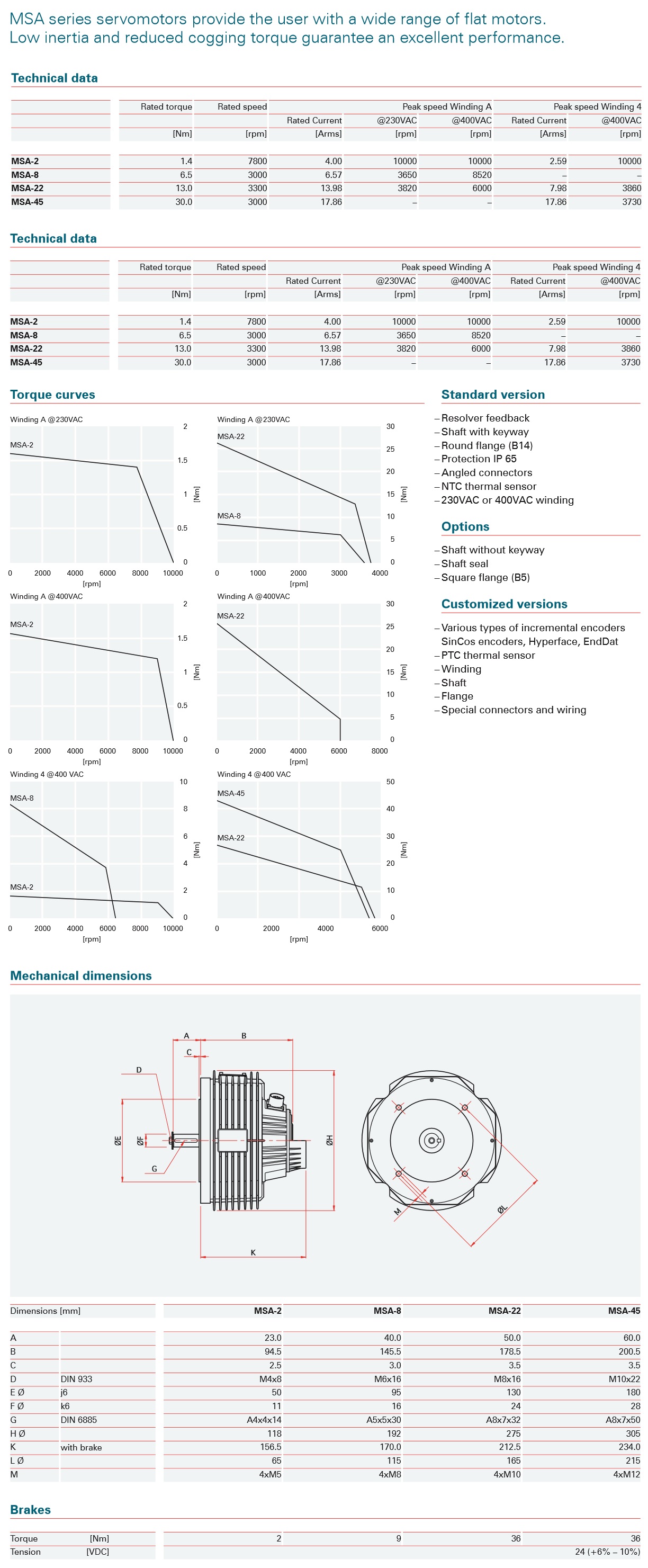

Description Specifications and Drawings


Infranor: AC Brushless Servomotors (MSA Series)

Since 1973, Mavilor SA have designed and manufactured high performance industrial servomotors which include DC Brush and AC Brushless, in conventional square and axial air gap pancake formats. The new slot-less, ironless core motors provide coggless performance for very demanding medical, simulator and other industrial applications. High torque to inertia ratios and smooth, non-cogging low speed velocity control make Mavilor the intelligent motor of choice for the most exacting applications.

The MSA series servo-motors provide the user with a wide range of flat motors, low inertia and reduced cogging torque that guarantees excellent performance.

Features:

  • Excellent torque/weight/volume-ratio

  • Very compact

  • Axial magnetic flux

  • Low cogging torque

  • Reduced diameter and length

Specifications:

  • Max. Mechanical Speed (rpm): 4500-10,000

  • Stall Torque (Nm): 1.9-44

  • Stall Current (A): 3.54-27.84

  • Peak Torque (Nm): 7.5-176

  • Mass (Motor with resolver) kg: 3-22

  • Radial Load (N): 218-700

  • Axial Load (N): 218-400

  • Protection: IP-65


Model No.:
MSA-2, MSA-8, MSA-22, MSA-45
