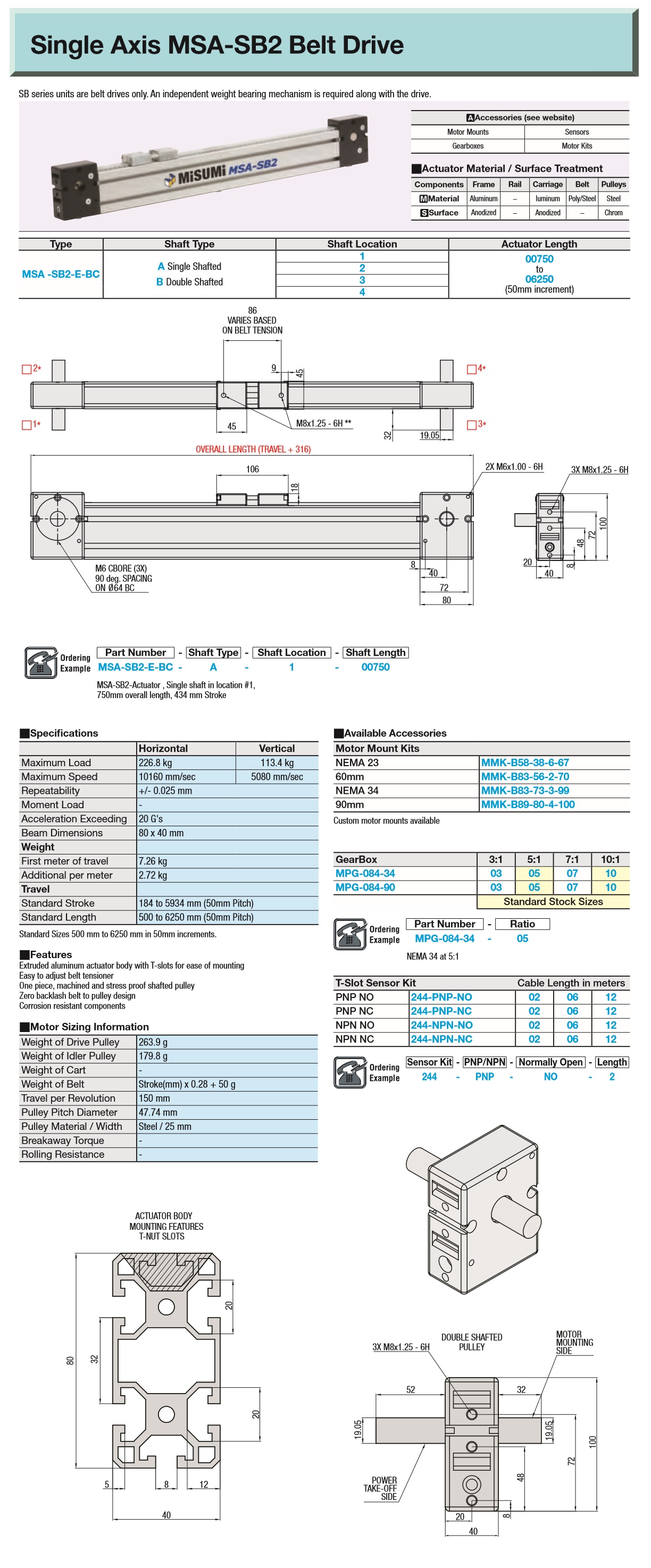

Extruded aluminum actuator body with T-slots for ease of mounting

Easy to adjust belt tensioner

One piece, machined and stress proof shafted pulley

Zero backlash belt to pulley design

Corrosion resistant components

Maximum Load: 226.8 kg (Horizontal), 113.4 kg (Vertical)

Maximum Speed: 10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

Repeatability: +/- 0.025 mm

Acceleration Exceeding: 20 G's

Beam Dimensions: 80 x 40 mm

Weight: 7.26 kg (First meter of travel), 2.72 kg (Additional per meter)

Standard Stroke: 184 to 5934 mm (50mm Pitch)

Standard Length: 500 to 6250 mm (50mm Pitch)

Weight of Drive Pulley: 263.9 g

Weight of Idler Pulley: 179.8 g

Weight of Belt: Stroke(mm) x 0.28 + 50 g

Travel per Revolution: 150 mm

Pulley Pitch Diameter: 47.74 mm

Pulley Material/Width: Steel/25 mm
