Misumi: Single Axis Actuators (LS10 Series) Medium Accuracy
Misumi: Single Axis Actuators (LS10 Series) Medium Accuracy



Call for Pricing

Price Quote Form


Order #: LS10


Model Number/Code*:

.

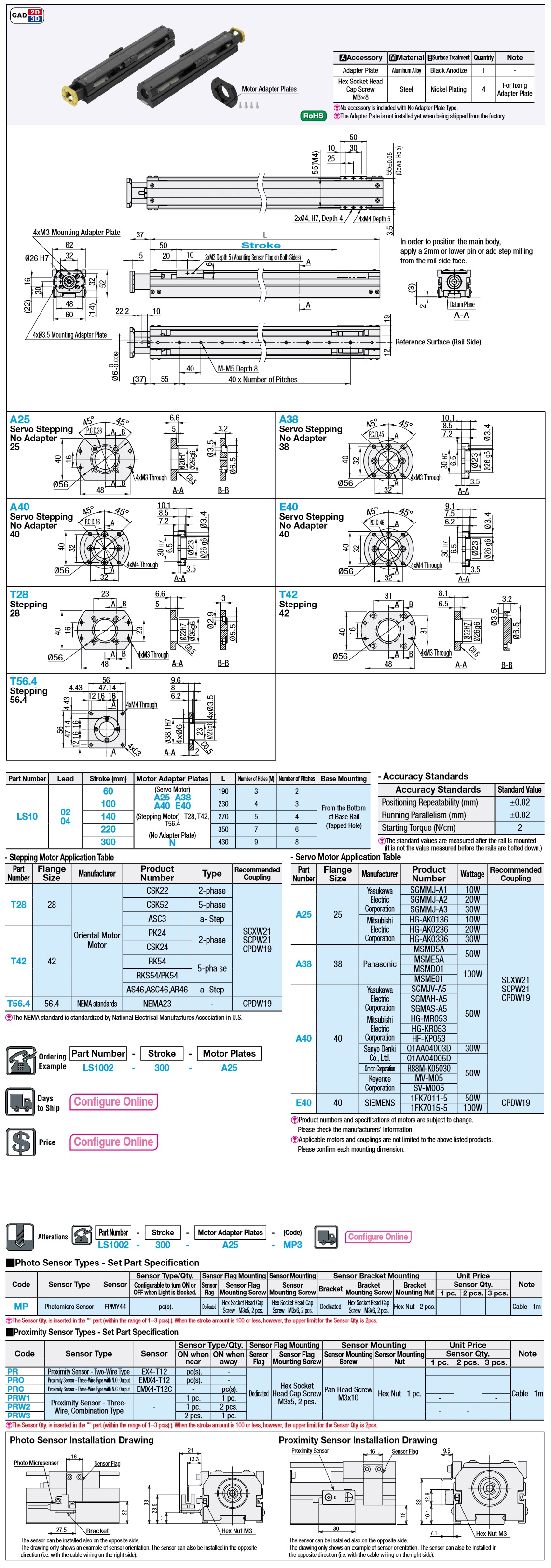

Description Specifications and Drawings


Misumi: Single Axis Actuators (LS10 Series) Medium Accuracy

By adopting this type of Single Axis Actuator, Medium Accuracy Transferring/Positioning can be achieved at low costs.

Specifications:

  • Cost Efficient

  • Table: Long 1 pc.

  • Grease: Standard

  • With or w/o Retainer: Not Provided

  • Table Width(mm): 62

  • Main Body, Peripheral Components

  • Motor Mounting Orientation: Straight

  • With or w/o Motors: Not Provided (Installed by customers)

  • Ball Screw Shaft Dia.(φ): 10

  • Supply Voltage: Not Provided

  • Precision: Standard Grade

  • Cover: Included

  • With or w/o Lubricant Unit: Not Provided

  • Table Length(mm): 50


Model No.: LS1002-[60,100,140,220,300]-A[25,38,40], LS1002-[60,100,140,220,300]-E40, LS1002-[60,100,140,220,300]-N, LS1002-[60,100,140,220,300]-T[28,42,56.4], LS1004-[60,100,140,220,300]-A[25,38,40], LS1004-[60,100,140,220,300]-E40, LS1004-[60,100,140,220,300]-N, LS1004-[60,100,140,220,300]-T[28,42,56.4]
